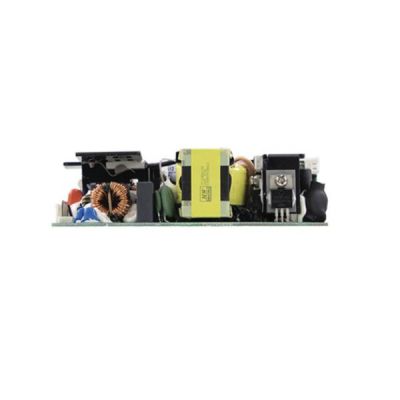

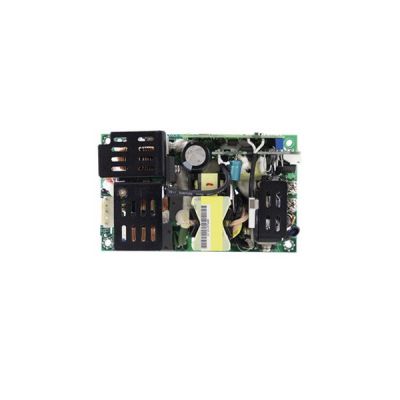

RPS-300
55.12
Details
Meanwell RPS-300 Series is a 300W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 5" by 3" footprint. At the same time, it also accepts 90~264VAC input and offers various output voltages between 12V and 48V. Moreover, the series features the high working efficiency up to 93%, extremely low no load power consumption down below 0.5W and operating altitude up to 2000 meters. As per extremely low leakage current and 200W convection,300W force air, it conforms to the medical safety regulations approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/E N60601-1

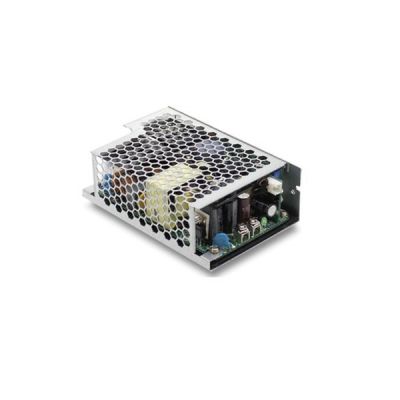

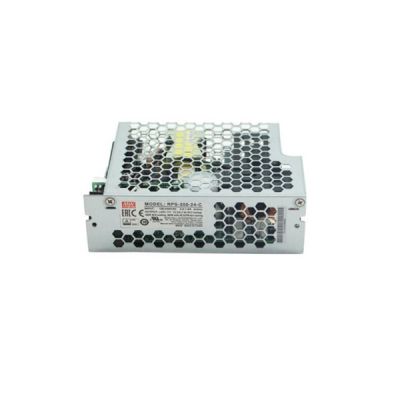

Apart from them, RPS-300 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Additionally, the series offers the enclosed style model (RP S-300-C). Considering its long lifespan, high reliability, excellent quality, Meanwell RPS-300 Series is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-300 Series Encoding
| RPS | Series Name |
| 300 | Rated Wattage |
| 12 | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Casing Type |
Meanwell RPS-300 Series Model Specifications
| Model | RPS-300-12 | RPS-300-15 | RPS-300-24 | RPS-300-27 | RPS-300-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 27V | 48V | |
| RATED CURRENT (20.5CFM) | 25A | 20A | 12.5A | 11.12A | 6.25A | ||
| CURRENT | Convection | 0-16.67A | 0-13.33A | 0-8.33A | 0-7.4A | 0-4.17A | |
| 20.5CFM | 0-25A | 0-20A | 0-12.5A | 0-11.12A | 0-6.25A | ||
| RATED POWER | Convection | 200W | 200W | 200W | 200W | 200.2W | |
| 20.5CFM | 300W | 300W | 300W | 300W | 300W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | 14.25-15.75V | 22.8-25.2V | 25.65-28.35V | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 2500ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 13ms/230VAC/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>0.93/230VAC PF>0.98/115VAC at full load | ||||||
| EFFICIENCY (Typ.) | 90.00% | 90.00% | 92.50% | 93.00% | 93.00% | ||
| AC CURRENT (Typ.) | 3.5A/115VAC 1.8A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||||
| LEAKAGE CURRENT | PCB Type: Earth leakage current <150 A / 264VAC, Touch current <70 A/264VAC | ||||||
| Enclosed Type: Earth leakage current <200 A / 264VAC, Touch current <70 A/264VAC | |||||||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.5-15V | 16.2-18.5V | 26-30V | 29.5-33.5V | 52-59.5V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Protection type : (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| Protection type : (TSW2)Shut down o/p voltage, re-power on to recover | |||||||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 20.5CFM ; tolerance ± 2%, ripple : 150mVp-p(max.) | |||||
| FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | ||||||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | ||||||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| OPERATING ALTITUDE | 2000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1,EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
|||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods 100% interruptions 250 periods |
|||||
| OTHERS | MTBF | PCB type: 2853.1K hrs min. Telcordia SR-332 (Bellcore) ; 160.0K hrs min. MIL-HDBK-217F (25℃) | |||||
| Enclosed type: 1487.9K hrs min. Telcordia SR-332 (Bellcore) ; 163.8K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | PCB type:127*76.2*35mm or 5″*3″*1.37″inch | ||||||
| Enclosed type:130*86*43mm or 5.11″*3.39″*1.69″inch | |||||||
| PACKING | PCB type:0.37Kg; 36pcs/14.3Kg/0.96CUFT | ||||||
| Enclosed type:0.563Kg; 24pcs/14.5Kg/0.77CUFT | |||||||

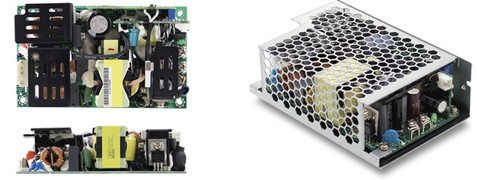

Meanwell RPS-300 Series Features
l 5"x3" compact size
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/E N60601-1
l Suitable for BF application with appropriate system consideration
l 200W convection,300W force air
l No load power consumption<O.5W by PS-ON control
l Extremely low leakage current
l 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Typical Lifetime > 40K hours
l 3 years warranty
Meanwell RPS-300 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
l Pump machine
l Electric bed

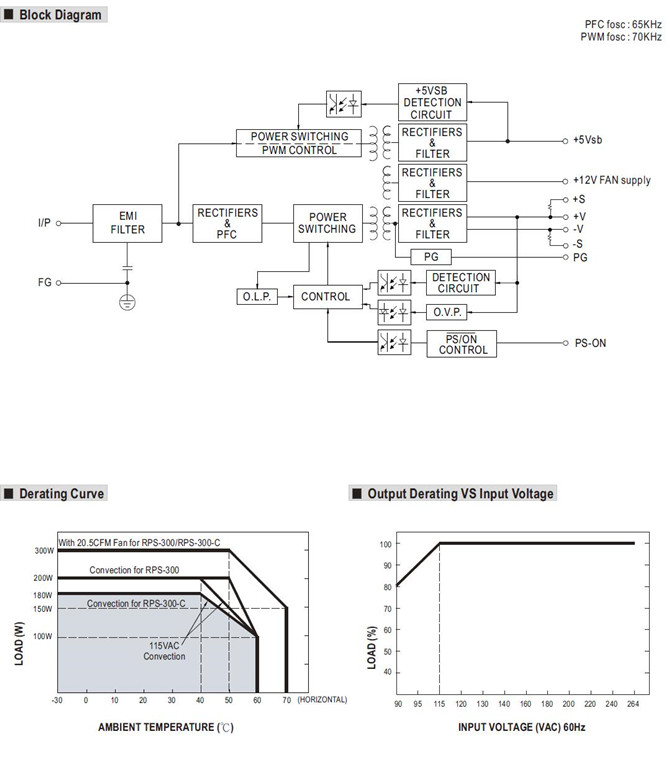

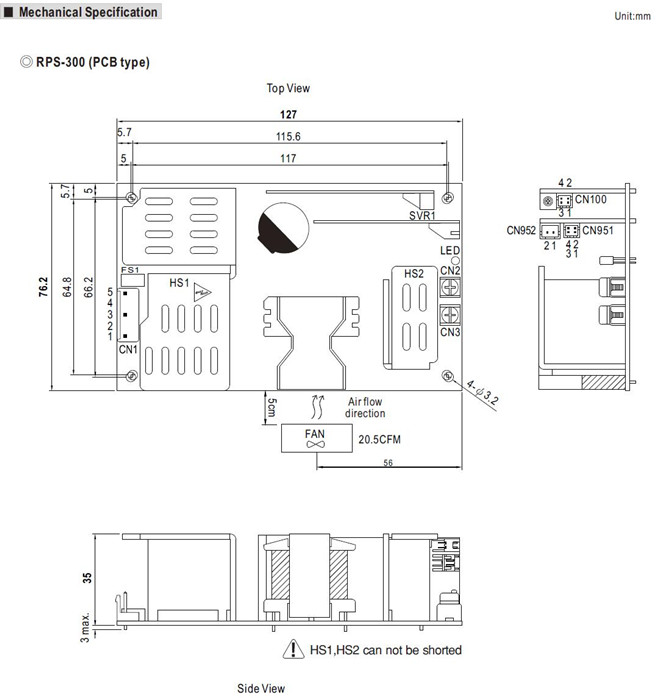

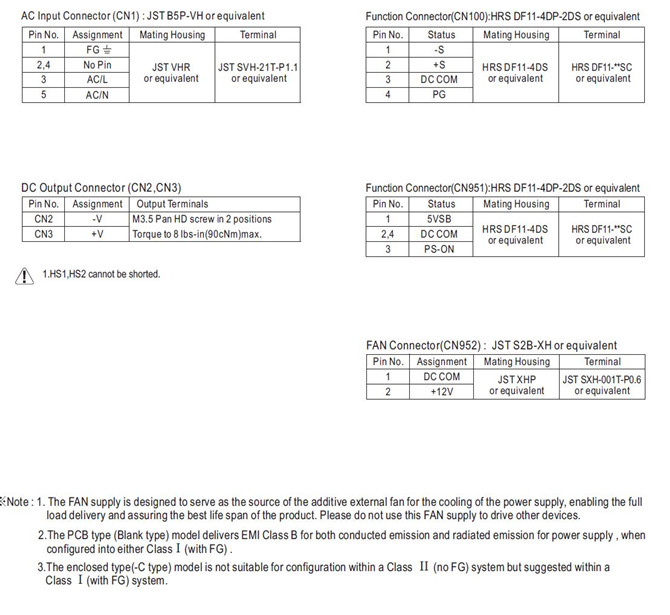

Meanwell RPS-300 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
