RPS-300-24
56.27
Details

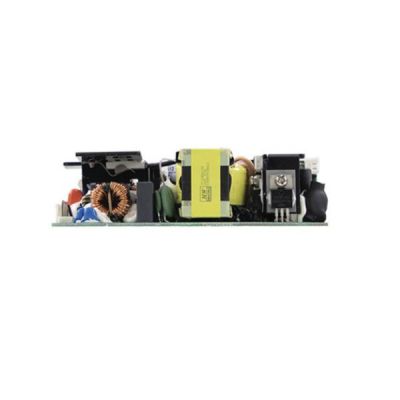

Meanwell RPS-300-24 is a 300W highly reliable green PCB type medical power supply with 24V12.5A0-8.33A0-12.5A200W300W150mVp-p22.8-25.2V. The item is designed with high power density on 5" by 3" footprint and 90~264VAC input as well. Moreover,It highlights the working efficiency up to 93%, extremely low no load power consumption and operating altitude up to 2000 meters. Considering its extremely low leakage current and 200W convection,300W force air, RPS-300-24 complies with the medical safety regulations approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/E N60601-1. Additionally, it is equipped with the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Apart from them, the unit offers the enclosed style model (RP S-300-C). In light of its long lifespan, high reliability, excellent quality, Meanwell RPS-300-24 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-300-24 Encoding
| RPS | Series Name |
| 300 | Rated Wattage |
| 24 | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Casing Type |
Meanwell RPS-300-24 Specifications
| Model | RPS-300-24 | ||
| OUTPUT | DC VOLTAGE | 24V | |
| RATED CURRENT (20.5CFM) | 12.5A | ||
| CURRENT | Convection | 0-8.33A | |
| 20.5CFM | 0-12.5A | ||
| RATED POWER | Convection | 200W | |
| 20.5CFM | 300W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 22.8-25.2V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 2500ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 13ms/230VAC/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.93/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 92.50% | ||
| AC CURRENT (Typ.) | 3.5A/115VAC 1.8A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||
| LEAKAGE CURRENT | PCB Type: Earth leakage current <150 A / 264VAC, Touch current <70 A/264VAC | ||
| Enclosed Type: Earth leakage current <200 A / 264VAC, Touch current <70 A/264VAC | |||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 26-30V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down | ||
| Protection type : (TSW2)Shut down o/p voltage, re-power on to recover | |||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 20.5CFM ; tolerance ± 2%, ripple : 150mVp-p(max.) | |
| FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | ||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | ||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 2000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1,EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
|
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | PCB type: 2853.1K hrs min. Telcordia SR-332 (Bellcore) ; 160.0K hrs min. MIL-HDBK-217F (25℃) | |
| Enclosed type: 1487.9K hrs min. Telcordia SR-332 (Bellcore) ; 163.8K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | PCB type:127*76.2*35mm or 5″*3″*1.37″inch | ||
| Enclosed type:130*86*43mm or 5.11″*3.39″*1.69″inch | |||
| PACKING | PCB type:0.37Kg; 36pcs/14.3Kg/0.96CUFT | ||
| Enclosed type:0.563Kg; 24pcs/14.5Kg/0.77CUFT | |||
Meanwell RPS-300-24 Features
l 5"x3" compact size
l Typical Lifetime > 40K hours
l 3 years warranty
l Extremely low leakage current
l 200W convection,300W force air
l No load power consumption<O.5W by PS-ON control
l Suitable for BF application with appropriate system consideration
l 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/E N60601-1
Meanwell RPS-300-24 Applications
l Oral irrigator
l Electric bed
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
l Pump machine
Meanwell RPS-300-24 Mechanical Diagram
