RPS-30
10.14
Details

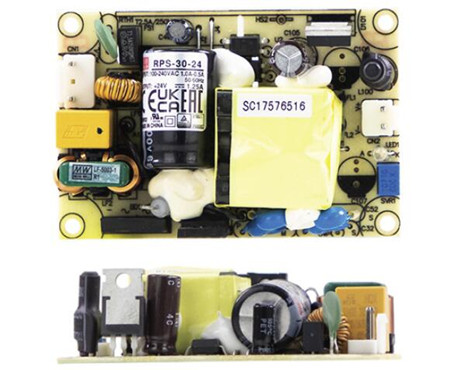

Meanwell RPS-30 Series is a 30W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 3*2 footprint. It also accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. At the same time, RPS-30 series features high working efficiency up to 92%, extremely low no load power consumption down below 0.1W and operating altitude up to 4000 meters, thus, able to be applied fоr СlаѕѕⅡ(nо FG) ѕуѕtеm dеѕіgn. Тhе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 80 uA, and it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Considering its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-30 Series is a very suitable solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-30 Series Encoding
| RPS | Series Name |
| 30 | Rated Wattage |
| 3.3 | Output Voltage |
Meanwell RPS-30 Series Model Specifications
| Model | RPS-30-3.3 | RPS-30-5 | RPS-30-7.5 | RPS-30-12 | RPS-30-15 | RPS-30-24 | RPS-30-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 6A | 6A | 4A | 2.5A | 2A | 1.25A | 0.62A | |
| CURRENT RANGE | 0-6.6A | 0-6.6A | 0-4.4A | 0-2.75A | 0-2.2A | 0-1.375A | 0-0.687A | |
| RATED POWER | 19.8W | 30W | 30W | 30W | 30W | 30W | 30W | |
| PEAK LOAD(10sec.) | 21.8W | 33W | 33W | 33W | 33W | 33W | 33W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 200ms, 30ms / 230VAC 200ms, 30ms / 115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 30ms / 230VAC 16ms / 115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 80.00% | 82.00% | 84.00% | 88.00% | 89.00% | 89.50% | 92.00% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |||||||
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 60A/230VAC | |||||||
| LEAKAGE CURRENT | Touch current< 80 A/264VAC | |||||||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 3.9-5V | 5.7-6.8V | 8.6-11.3V | 13.8-16.2V | 17.2-20.3V | 28.4-32.4V | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recove | ||||||||

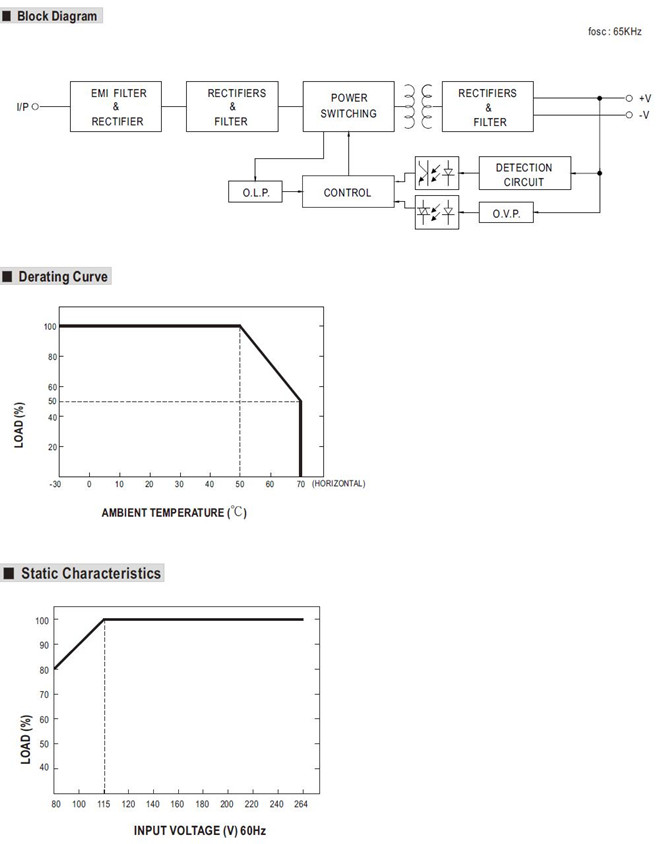

| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| OPERATING ALTITUDE | 4000 meters | |||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | ||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | ||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | ||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||||
| Parameter | Standard | Test Level | ||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 2KV/Line-Line | ||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||||
| OTHERS | MTBF | 3550.0K hrs min. Telcordia SR-332 (Bellcore) ; 628.7K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch | |||||||
| PACKING | 0.09Kg; 120pcs/11.8Kg/0.94CUFT | |||||||
Meanwell RPS-30 Series Features
l 3"x2" compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l Cooling by free air convection
l EMI class B for classⅡconfiguration
l No load power consumption<O.1W
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l Lifetime>105K hours
l Operating altitude up to 4000 meters
l 3 years warranty
Meanwell RPS-30 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices

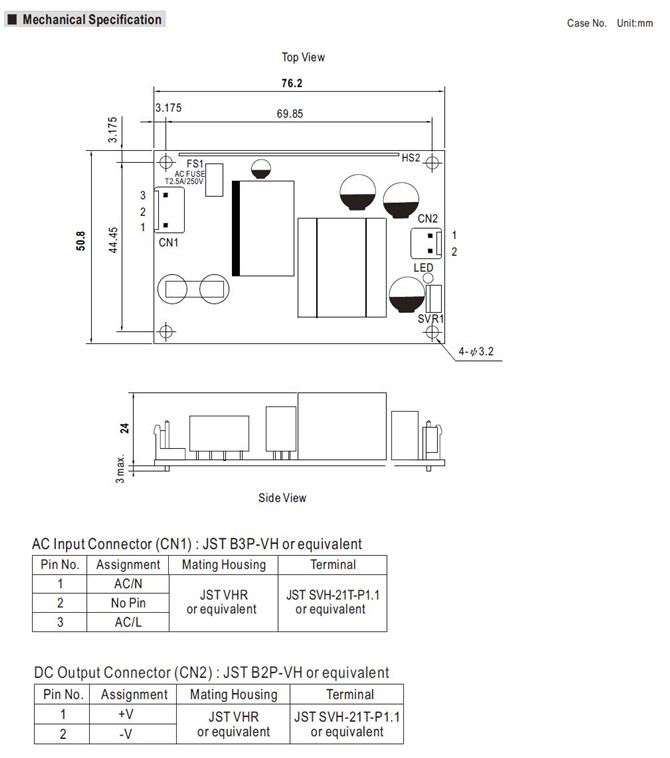

Meanwell RPS-30 Series Mechanical Diagram
