RPS-30-24
11.66
Details

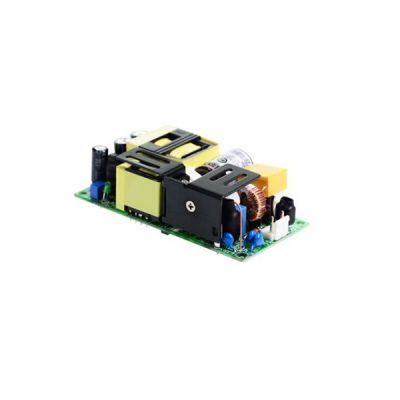

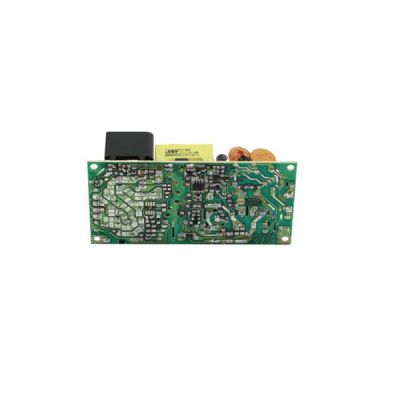

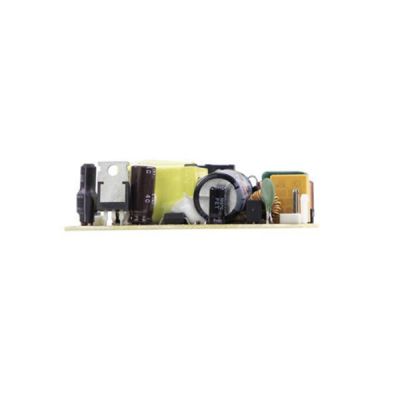

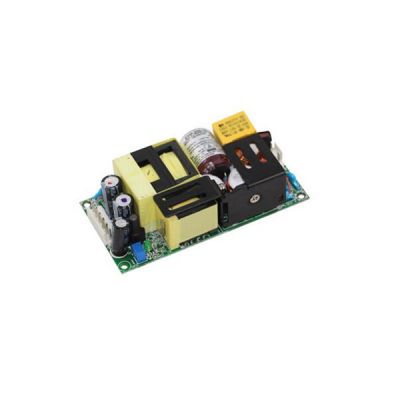

Meanwell RPS-30-24 is a 30W highly reliable green PCB type medical power supply with 24V1.25A0-1.375A30W33W150mVp-p. It is designed with high power density and compact size on 3*2 footprint, and also accepts 80~264VAC input. Apart from them, the item features the high working efficiency up to 92%, extremely low no load power consumption and operating altitude up to 4000 meters. Therefore, it could be used fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. Furthermore, thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 80 uA, and conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. In view of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-30-24 is a very suitable solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-30-24 Encoding
| RPS | Series Name |
| 30 | Rated Wattage |
| 24 | Output Voltage |
Meanwell RPS-30-24 Specifications
| Model | RPS-30-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 1.25A | |
| CURRENT RANGE | 0-1.375A | |
| RATED POWER | 30W | |
| PEAK LOAD(10sec.) | 33W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 200ms, 30ms / 230VAC 200ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 16ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.50% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | Touch current< 80 A/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 28.4-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recove | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 4000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 3550.0K hrs min. Telcordia SR-332 (Bellcore) ; 628.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch | |
| PACKING | 0.09Kg; 120pcs/11.8Kg/0.94CUFT | |
Meanwell RPS-30-24 Features
l 3"x2" compact size
l Cooling by free air convection
l EMI class B for classⅡconfiguration
l No load power consumption<O.1W
l Extremely low leakage current
l Lifetime>105K hours
l Operating altitude up to 4000 meters
l 3 years warranty
l Protections: Short circuit/Overload/Over voltage
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
Meanwell RPS-30-24 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-30-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
