RPS-30-12
11.15
Details

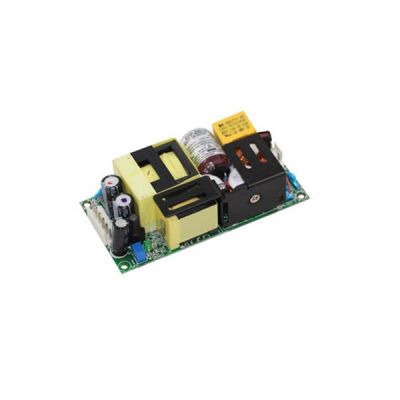

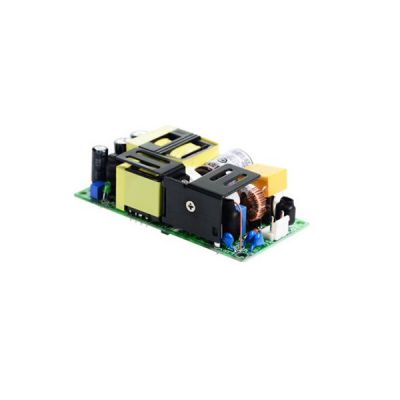

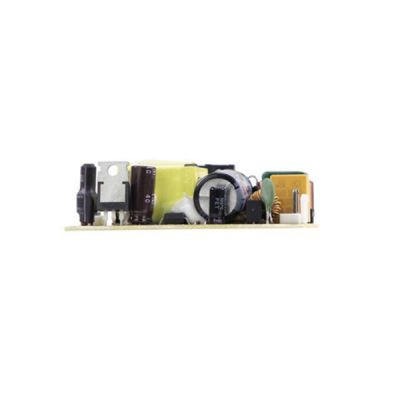

Meanwell RPS-30-12 is a 30W highly reliable green PCB type medical power supply with 12V2.5A0-2.75A30W33W100mVp-p. The product is designed with high power density on 3*2 footprint, and accepts 80~264VAC input. Apart from them, RPS-30-12 highlights the working efficiency up to 92%, extremely low no load power consumption below 0.1W and operating altitude up to 4000 meters. So it can be applied fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. What’s more, thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 80 uA, and complies to international medical regulations (2*MOPP) and EMC BS EN/EN55011. In view of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-30-12 is a very suitable solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-30-12 Encoding
| RPS | Series Name |
| 30 | Rated Wattage |
| 12 | Output Voltage |
Meanwell RPS-30-12 Specifications
| Model | RPS-30-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 2.5A | |
| CURRENT RANGE | 0-2.75A | |
| RATED POWER | 30W | |
| PEAK LOAD(10sec.) | 33W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 200ms, 30ms / 230VAC 200ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 16ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | Touch current< 80 A/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8-16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recove | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 4000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 3550.0K hrs min. Telcordia SR-332 (Bellcore) ; 628.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch | |
| PACKING | 0.09Kg; 120pcs/11.8Kg/0.94CUFT | |
Meanwell RPS-30-12 Features
l 3 years warranty
l 3"x2" compact size
l Lifetime>105K hours
l Cooling by free air convection
l Extremely low leakage current
l EMI class B for classⅡconfiguration
l No load power consumption<O.1W
l Operating altitude up to 4000 meters
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
Meanwell RPS-30-12 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-30-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
