RPS-200-48
45.68
Details

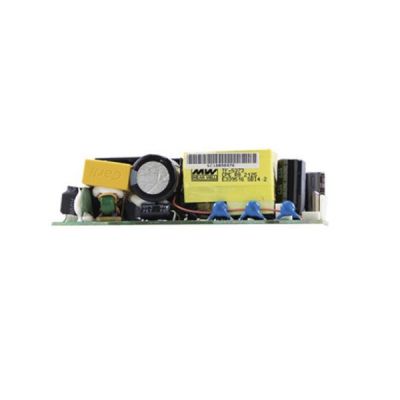

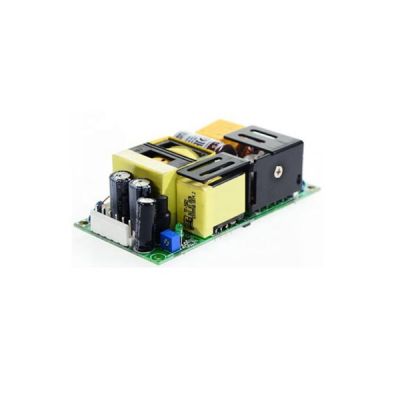

Meanwell RPS-200-48 is a 200W highly reliable green PCB type medical power supply with 48V4.2A3A201.6W144W120mVp-p45.6-50.4V. It is designed with high power density 21.9W/in³ on 4" by 2" footprint, and accepts 80~264VAC input as well. Moreover, the unit features the high working efficiency up to 95%, extremely low no load power consumption down below 0.5W and operating altitude up to 5000 meters. So that RPS-200-48 could be used for both ClassⅠ(with FG) and ClassⅡ(no FG) system. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ down below 130 uA and Lifetime more than 65K hours, RPS-200-48 satisfies the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Additionally, it provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. As a result of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-200-48 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-200-48 Encoding
| RPS | Series Name |
| 200 | Rated Wattage |
| 48 | Output Voltage |
| C | Type |
| Blank | PCB Type |

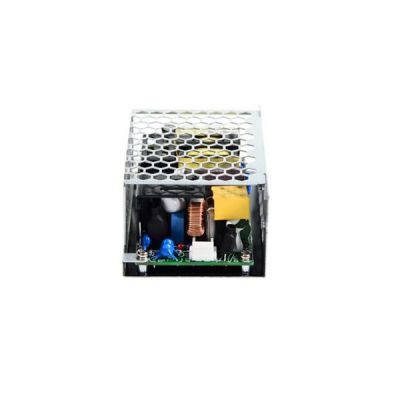

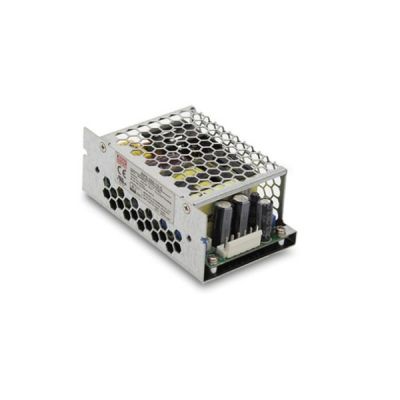

| C | Enclosed Casing Type |
Meanwell RPS-200-48 Specifications
| Model | RPS-200-48 | ||
| OUTPUT | DC VOLTAGE | 48V | |
| CURRENT | 10CFM | 4.2A | |
| Convection | 3A | ||
| RATED POWER | 10CFM | 201.6W | |
| Convection | 144W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | ||
| VOLTAGE ADJ. RANGE | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 700ms, 30ms/230VAC 700ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 95.00% | ||
| AC CURRENT (Typ.) | 2A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | Earth leakage current < 130 A/264VAC , Touch current < 40 A/264VAC | ||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM) | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 5000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | |
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 2669.7K hrs min. Telcordia SR-332 (Bellcore) ; 500.3K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | PCB:101.6*50.8*29mm or 4″*2″*1.14″inch ; Enclosed type:103.4*62*40mm or 4.07″*2.44″*1.57″inch | ||
| PACKING | PCB:0.19Kg; 72pcs/14.7Kg/0.84CUFT ; Enclosed type:0.3Kg; 60pcs/19Kg/1.06CUFT | ||
Meanwell RPS-200-48 Features
l 4"x2" compact size
l 3 years warranty
l 12V/0.5A fan supply
l Lifetime > 65K hours
l Extremely low leakage current
l 140W convention, 200W force air
l Operating altitude up to 5000 meters
l No load power consumption<0. 5W
l Suitable for BF application with appropriate system consideration
l Protections: Short circuit/Overload /Over voltage /Over temperature
l EMI Conduction for Class B Radiation for Class B with FG (ClassⅠ) and Class A without FG (ClassⅡ)
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell RPS-200-48 Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
Meanwell RPS-200-48 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
