Meanwell RPS-200-24 is a 200W highly reliable green PCB type medical power supply with 24V8.4A5.9A201.6W141.6W120mVp-p22.8-25.2V. The item is designed with high power density 21.9W/in³ on 4" by 2" footprint, and 80~264VAC input. At the same time, it stands out with the high working efficiency reaching up to 95%, extremely low no load power consumption and operating altitude up to 5000 meters. Therefore, RPS-200-24 could be applied for both ClassⅠ(with FG) and ClassⅡ(no FG) system. Considering thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 130 uA, RPS-200-24 complies with the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, it provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In light of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-200-24 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
RPS | Series Name |
200 | Rated Wattage |
24 | Output Voltage |
C | Type |

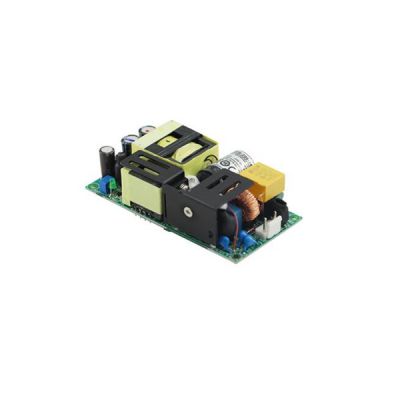

Blank | PCB Type |

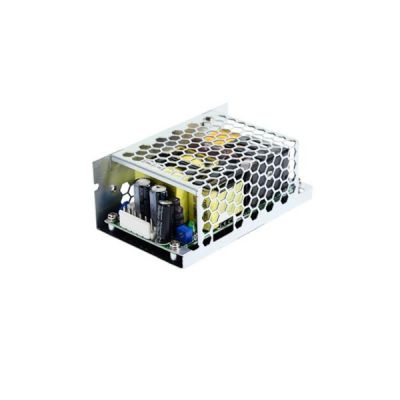

C | Enclosed Casing Type |
Model | RPS-200-24 | ||
OUTPUT | DC VOLTAGE | 24V | |
CURRENT | 10CFM | 8.4A | |
Convection | 5.9A | ||
RATED POWER | 10CFM | 201.6W | |
Convection | 141.6W | ||
RIPPLE & NOISE (max.) | 120mVp-p | ||
VOLTAGE ADJ. RANGE | 22.8-25.2V | ||
VOLTAGE TOL ERANCE | ±1.0% | ||
LINE REGULATION | ±0.5% | ||
LOAD REGUL .ATION | ±1.0% | ||
SETUP, RISE TIME | 700ms, 30ms/230VAC 700ms, 30ms/115VAC at full load | ||
HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||
INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
FREQUENCY RANGE | 47 ~ 63Hz | ||
POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
EFFICIENCY (Typ.) | 94.00% | ||
AC CURRENT (Typ.) | 2A/115VAC 1A/230VAC | ||
INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
LEAKAGE CURRENT | Earth leakage current < 130 A/264VAC , Touch current < 40 A/264VAC | ||
PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
OVER VOLTAGE | 26.4-31.2V | ||
Protection type : Shut down o/p voltage, re-power on to recover | |||
OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM) | |
ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
OPERATING ALTITUDE | 5000 meters | ||
SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | |
ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
EMC IMMUNITY | BS EN/EN60601-1-2 | ||
OTHERS | MTBF | 2669.7K hrs min. Telcordia SR-332 (Bellcore) ; 500.3K hrs min. MIL-HDBK-217F (25℃) | |
DIMENSION | PCB:101.6*50.8*29mm or 4″*2″*1.14″inch ; Enclosed type:103.4*62*40mm or 4.07″*2.44″*1.57″inch | ||
PACKING | PCB:0.19Kg; 72pcs/14.7Kg/0.84CUFT ; Enclosed type:0.3Kg; 60pcs/19Kg/1.06CUFT |
l 4"x2" compact size
l 3 years warranty
l 12V/0.5A fan supply
l Lifetime > 65K hours
l No load power consumption<0. 5W
l Extremely low leakage current
l Operating altitude up to 5000 meters
l Suitable for BF application with appropriate system consideration
l 140W convention, 200W force air
l Protections: Short circuit/Overload /Over voltage /Over temperature
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
l EMI Conduction for Class B Radiation for Class B with FG (ClassⅠ) and Class A without FG (ClassⅡ)
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
