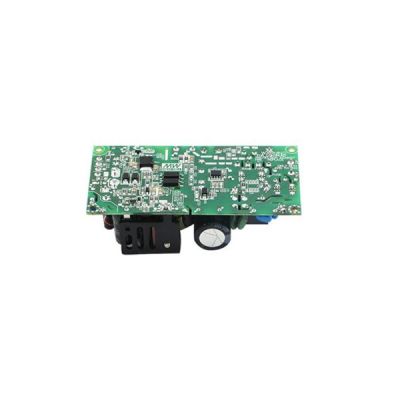

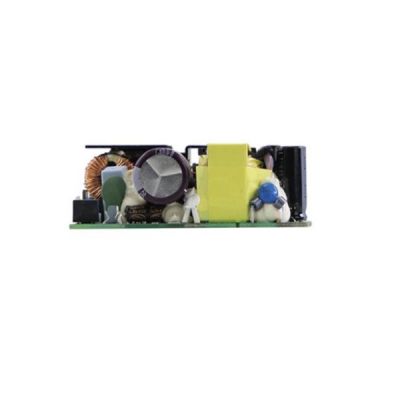

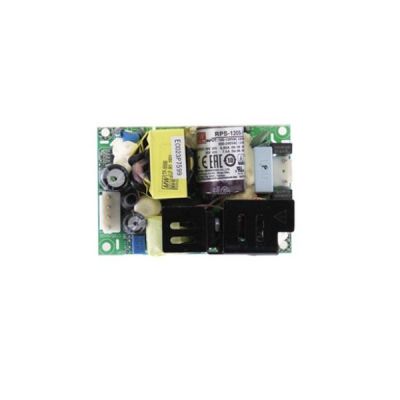

RPS-120S-12
25.04
Details
Meanwell RPS-120S-12 is a 120W highly reliable green PCB type medical power supply with 12V11.8A9.5A141.6W114W100mVp-p11.4-12.6V. The product is designed with high power density on 3" by 2" footprint, and accepts 80~264VAC input. At the same time, it features high working efficiency reaching up to 94%, extremely low no load power consumption down below 0.3W and operating altitude up to 4000 meters. Based on them, RPS-120S-12 is able to be used fоr both ClassⅠ(with FG) or Class Ⅱ (no FG) system. As thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 150 uA, Meanwell RPS-120S-12 meets the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Besides them, the item offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Due to its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-120S-12 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-120S-12 Encoding
| RPS | Series Name |
| 120S | Rated Wattage |
| 12 | Output Voltage |
Meanwell RPS-120S-12 Specifications
| Model | RPS-120S-12 | ||
| OUTPUT | DC VOLTAGE | 12V | |
| CURRENT | Peak(10sec) | 11.8A | |
| Convection | 9.5A | ||
| RATED POWER | Peak(10sec) | 141.6W | |
| Convection | 114W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 15ms/230VAC 15ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 91.00% | ||
| AC CURRENT (Typ.) | 2.3A/115VAC 1.1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT max | Earth leakage current < 150 A/264VAC , touch current < 80 A/264VAC | ||
| PROTECTION | OVERL OAD | 130~160% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 13.2-15.6V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP. | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axe | ||
| OPERATING ALTITUDE | 4000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) | |
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 4050.3K hrs min. Telcordia SR-332 (Bellcore) ; 468.0K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 76.2*50.8*28mm or 3" * 2" *1.1" inch | ||
| PACKING | 0.13Kg; 100pcs/14Kg/1.13CUFT | ||
Meanwell RPS-120S-12 Features
l 3"x2" compact size
l 3 years warranty
l 120W convention, 150W peak (10sec.)
l Suitable for BF application with appropriate system consideration
l EMI for both ClassⅠ& ClassⅡconfiguration
l -30~+85℃ wide range operating temperature
l No load power consumption<0.3W
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 4000 meters
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-120S-12 Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
Meanwell RPS-120S-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
