RPS-120-12
30.14
Details

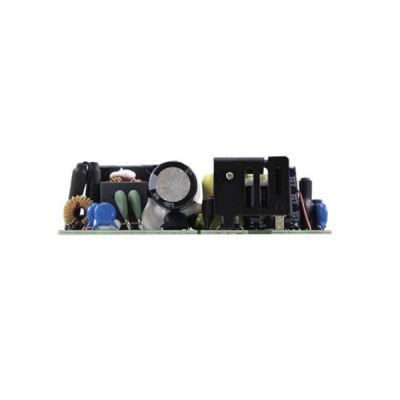

Meanwell RPS-120-12 is a 120W highly reliable green PCB type medical power supply with 12V10A7.0A120W84W100mVp-p11.4-12.6V. The product is designed with high power density on 4*2 footprint, and accepts 80~264VAC input. At the same time, RPS-120-12 highlights the working efficiency up to 91%, extremely low no load power consumption less than 0.3W and operating altitude up to 4000 meters. Based on them, it is able to be applied fоr both ClassⅠ(with FG) or Class (no FG) system design. As thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ down below 150 uA, the unit conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Besides them, RPS-120-12 offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Due to its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-120-12 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-120-12 Encoding
| RPS | Series Name |
| 120 | Rated Wattage |
| 12 | Output Voltage |

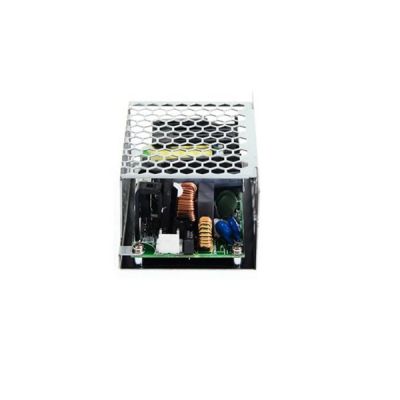

| C | Blank: PCB Type |
| -C: Enlosed Type |
Meanwell RPS-120-12 Specifications
| Model | RPS-120-12 | ||
| OUTPUT | DC VOLTAGE | 12V | |
| CURRENT | 10CFM | 10A | |
| Convection | 7.0A | ||
| RATED POWER | 10CFM | 120W | |
| Convection | 84W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 50ms/230VAC 10ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 89.00% | ||
| AC CURRENT (Typ.) | 2.1A/115VAC 1.2A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 80 A/264VAC | ||
| PROTECTION | OVERL OAD | 115~150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 3.8-4.5V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM) | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 4000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version),CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 3732.9K hrs min. Telcordia SR-332 (Bellcore) ; 653.6K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | PCB:101.6*50.8*29mm or 4" * 2" *1.141" inch ; Enclosed type:103.4*62*40mm or 4.07" * 2.44" *1.57" inch | ||
| PACKING | PCB:0.15Kg; 72pcs/11.8Kg/0.84CUFT ; Enclosed type:0.24Kg; 60pcs/15.4Kg/1.06CUFT | ||
Meanwell RPS-120-12 Features
l 4"x2" compact size
l 3 years warranty
l 12V/0.5A fan supply
l Suitable for BF application with appropriate system consideration
l 84W convention, 120W force air
l EMI Class B for both ClassⅠ (with FG) & Class II(no FG) configuration
l No load power consumption<0.3W
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 4000 meters
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell RPS-120-12 Applications
l Oral irrigator
l Medical monitors
l Sleep apnea devices
l Pumps machine
l Hemodialysis machine
Meanwell RPS-120-12 Mechanical Diagram
