RPD-75A
17.13
Details

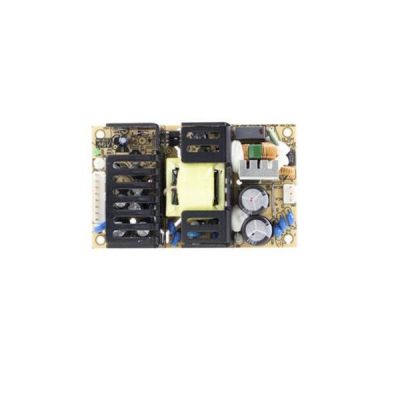

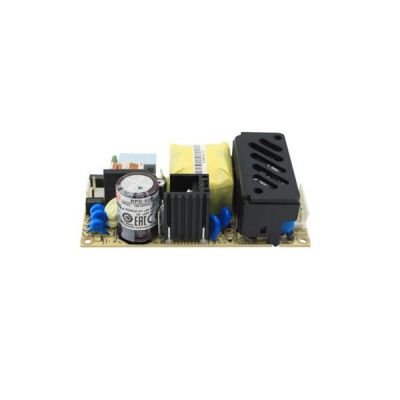

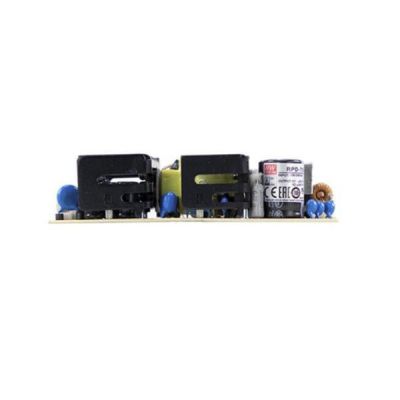

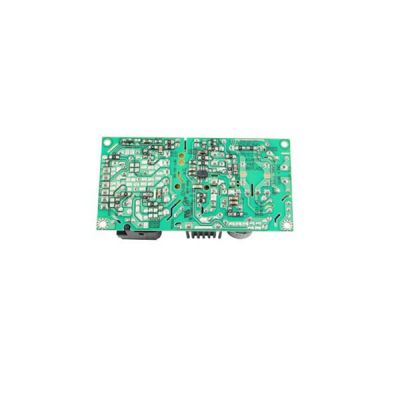

Meanwell RPD-75A is a 75W highly reliable green PCB type medical power supply with CH1CH25V12V7A3A1-9.5A0.3-4A71W95.5W80mVp-p120mVp-pCH1:4.75 ~5.5V. The item is designed with high power density on the 5" by 3" footprint with 90~264VAC input and dual output voltages. At the same time, RPD-75A outstands the working efficiency up to 79%, low no load power consumption and low leakage current. Therefore, it can be applied for ClassⅠ(with FG) system design. As per free air convection for rated power and 23.5CFM forced air convection for peak load, RPD-75A meets the international medical regulations (2*MOPP) and EMC BS EN/EN55011. In addition to them, the unit offers the various protection functions such as Short circuit, Overload and Over voltage. Due to its longevity, high reliability, excellent quality, Meanwell RPD-75A is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPD-75A Encoding
| RPD | Series Name |
| 75 | Rated Wattage |
| A | Output Voltage |
Meanwell RPD-75A Specifications
| Model | RPD-75A | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | |
| RATED CURRENT | 7A | 3A | |
| CURRENT RANGE | 1-9.5A | 0.3-4A | |
| RATED POWER | 71W | ||
| PEAK LOAD(10sec.) | 95.5W | ||
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | |
| LOAD REGUL .ATION | ±1.5% | ±3.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 77.00% | ||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | ||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | ||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 3000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved |
|
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 2575.6K hrs min. Telcordia SR-332 (Bellcore) ; 569.9K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | ||
| PACKING | 0.25Kg; 63pcs/17.3Kg/1.28CUFT | ||
Meanwell RPD-75A Features
l 5"x3" compact size
l 3 years warranty
l Extremely low leakage current
l Protections: Short circuit/ Overload/Over voltage
l Lifetime > 140K hours
l Medical safety approved (2 X MOPP) according to ANS I/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
l Suitable for BF application with appropriate system consideration
l Free air convection for rated power and 23.5CFM forced air convection for peak load
l EMI class B for classⅠconfiguration
Meanwell RPD-75A Applications
l Oral irrigator
l Sleep apnea devices
l Hemodialysis machine
l Medical computer monitors
Meanwell RPD-75A Mechanical Diagram
