RPD-75
17.13
Details

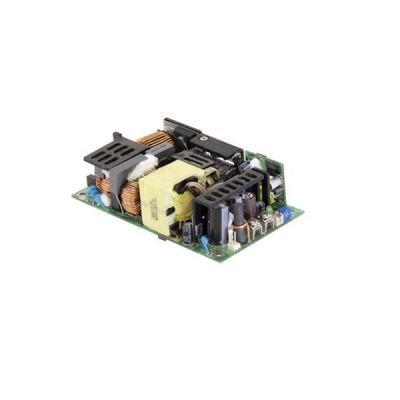

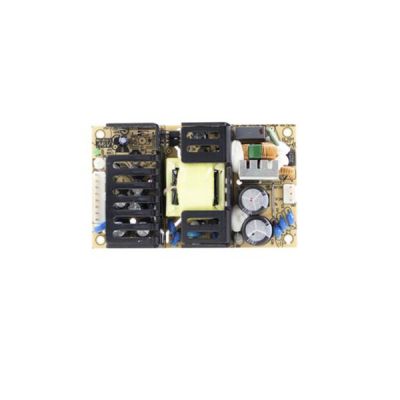

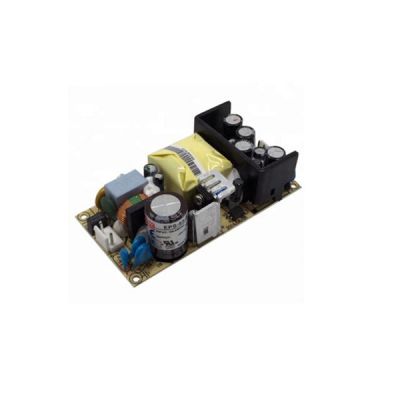

Meanwell RPD-75 Series is a 75W highly reliable green PCB type medical power supply. The entire series is designed with high power density on the 5" by 3" footprint. At the same time, it accepts 90~264VAC input and offers dual output voltages. Moreover, RPD-75 features the high working efficiency up to 79%, extremely low no load power consumption and extremely low leakage current. So that, it is able to be used for ClassⅠ(with FG) system design. As per free air convection for rated power and 23.5CFM forced air convection for peak load, RPD-75 conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the series provides the various protection functions such as Short circuit, Overload and Over voltage. Considering its longevity, high reliability, excellent quality, Meanwell RPD-75 Series is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPD-75 Series Encoding
| RPD | Series Name |
| 75 | Rated Wattage |
| A | Output Voltage |
Meanwell RPD-75 Series Model Specifications
| Model | RPD-75A | RPD-75B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 5V | 24V | |
| RATED CURRENT | 7A | 3A | 5A | 2A | |
| CURRENT RANGE | 1-9.5A | 0.3-4A | 1-6.8A | 0.2-2.7A | |
| RATED POWER | 71W | 73W | |||
| PEAK LOAD(10sec.) | 95.5W | 98.8W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | CH1: 4.75 ~ 5.5V | |||
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | ±2.0% | ±6.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±0.5% | ±1.0% | |
| LOAD REGUL .ATION | ±1.5% | ±3.0% | ±1.5% | ±3.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 77.00% | 79.00% | |||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | ||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | ||||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | ||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| OPERATING ALTITUDE | 3000 meters | ||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved |
|||
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG ; 2KV/Line-Line | |||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||
| OTHERS | MTBF | 2575.6K hrs min. Telcordia SR-332 (Bellcore) ; 569.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | ||||
| PACKING | 0.25Kg; 63pcs/17.3Kg/1.28CUFT | ||||
Meanwell RPD-75 Series Features
l 5"x3" compact size
l Medical safety approved (2 X MOPP) according to ANS I/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
l Suitable for BF application with appropriate system consideration
l Free air convection for rated power and 23.5CFM forced air convection for peak load
l EMI class B for class Ⅰconfiguration
l Extremely low leakage current
l Protections: Short circuit/ Overload/Over voltage
l Lifetime > 140K hours
l 3 years warranty
Meanwell RPD-75 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPD-75 Series Mechanical Diagram
