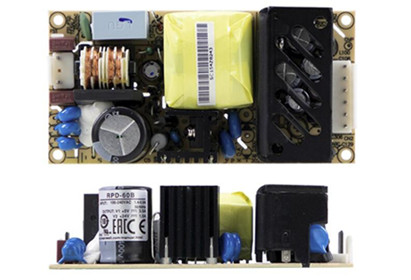

Meanwell RPD-60 Series is a 60W highly reliable green PCB type medical power supply. The entire series is designed with high power density on the 4" by 2" footprint. At the same time, it accepts 90~264VAC input and offers dual output voltages. Moreover, RPD-60 features the high working efficiency up to 82%, extremely low no load power consumption and extremely low leakage current. So that it is able to be used for ClassⅠ(with FG) system design. As per cooling by free air convection, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, RPD-60 provides the various protection functions such as Short circuit, Overload and Over voltage. Considering its long lifespan, high reliability, excellent quality, Meanwell RPD-60 Series is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPD-60 Series Encoding
| RPD | Series Name |
| 60 | Rated Wattage |
| A | Output Voltage |
Meanwell RPD-60 Series Specifications
| Model | RPD-60A | RPD-60B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 5V | 24V | |
| RATED CURRENT | 5A | 2A | 3.5A | 1.5A | |
| CURRENT RANGE | 0.5-5.5A | 0.1-2.2A | 0.5-3.85A | 0.1-1.65A | |
| RATED POWER | 49W | 53.5W | |||
| PEAK LOAD(10sec.) | 53.9W | 58.85W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOL ERANCE | +3,-2.0% | ±6.0% | +3,-2.0% | +8,-4% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±0.5% | ±1.0% | |
| LOAD REGUL .ATION | ±1.5% | ±2.0% | ±1.5% | ±2.0% | |
| SETUP, RISE TIME | 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 70ms/230VAC 14ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 78.00% | 82.00% | |||
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7 A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC 30A/115VAC | ||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | ||||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | ||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +65℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| OPERATING ALTITUDE | 3000 meters | ||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1,TUV BS EN/EN62368-1,IEC62368-1,IEC60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved,TUV BS EN/EN60601-1 approved | |||
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG ; 2KV/Line-Line | |||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||
| OTHERS | MTBF | 5031.3K hrs min. Telcordia SR-332 (Bellcore) ; 679.5K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 101.6*50.8*29mm or 4" * 2" *1.14" inch | ||||
| PACKING | 0.15Kg; 96pcs/15.4Kg/0.89CUFT | ||||
Meanwell RPD-60 Series Features
l 4"x2" compact size
l Medical safety approved (2 X MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
l Suitable for BF application with appropriate system consideration
l Cooling by free air convection
l EMI class B for class II configuration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l 3 years warranty
Meanwell RPD-60 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices

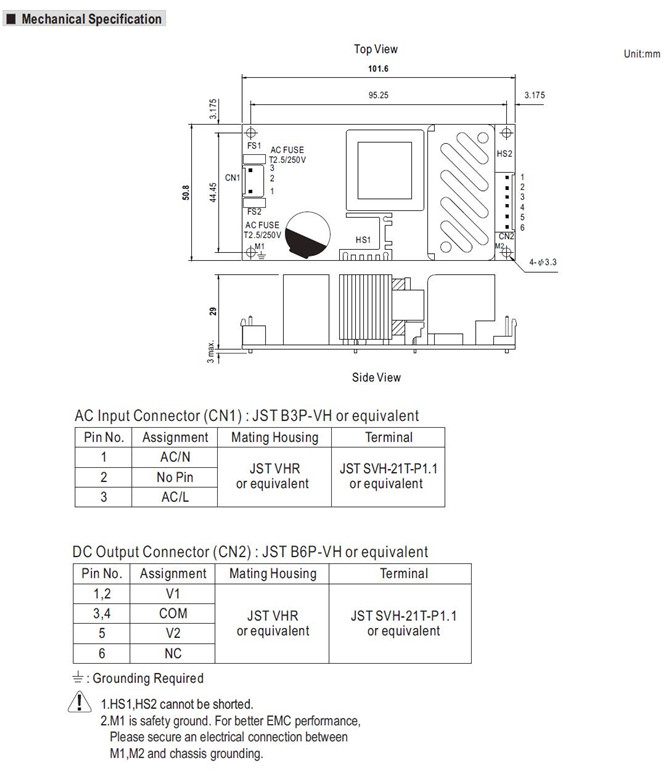

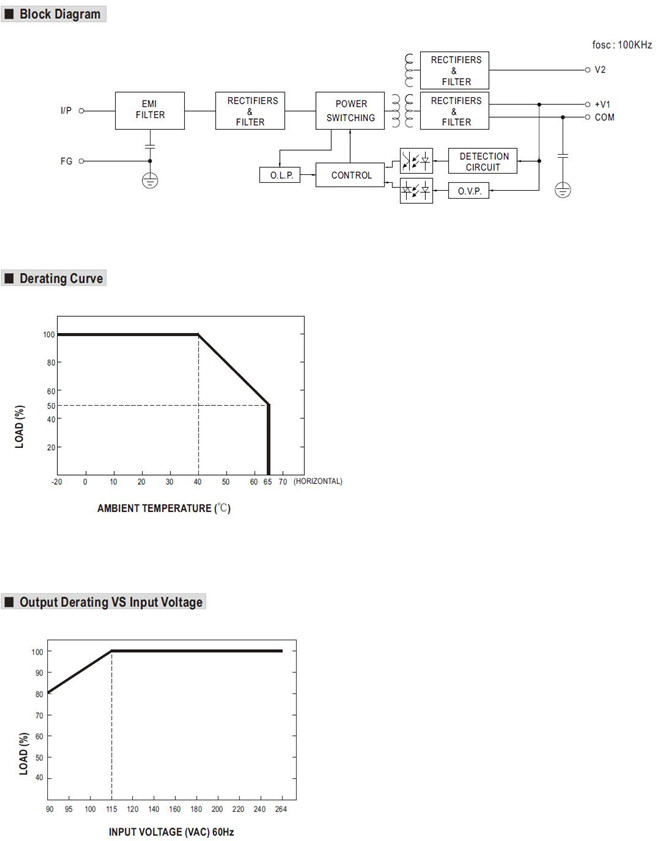

Meanwell RPD-60 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
