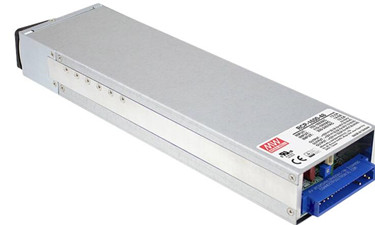

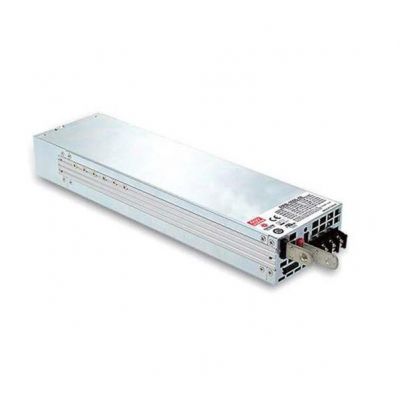

RPB-1600-48
396.49
Details
Meanwell RPB-1600-48 is a 1600W single output AC/DC charger with 57.6V55.2V27.5A47.5-58.8V90-270Ah<45mA90~264VAC 250~370VDC. The item outstands high power density up to 25W/inch³. At the same time, three embedded charging curves are built, specifically for the lead-acid batteries. Due to the communication protocol, PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries like the li-ion batteries. In addition, the model is cooled by the thermostatically controlled fan. RPB-1600-48 provides various protection mechanisms such as Battery under voltage, Battery no connection, Short circuit, Over voltage and Over temperature. In view of its longevity, high efficiency, and excellent quality, Meanwell RPB-1600-48 offers the best safety for diversified types of applications.
Meanwell RPB-1600-48 Encoding
| RPB | Series Name |
| 1600 | Output Wattage |
| 48 | Nominal Voltage |
| □ | Communication Protocol Option |
Meanwell RPB-1600-48 Specifications
| Model | RPB-1600-48 | |
| OUTPUT | BOOST CHARGE VOLTAGE(Vboost)(default) | 57.6V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 55.2V | |
| CONSTANT CURRENT(CC)(default) | 27.5A | |
| VOLTAGE ADJ. RANGE Note 5 | 47.5-58.8V | |
| By built-in potentiometer, SVR | ||
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) | 90-270Ah | |
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <45mA | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 250 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT (Typ.) | 14A/115VAC 8A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 35A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 63 ~ 75V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to Function Manual | |
| OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage Please refer to the Function Manual | |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of output current is allowable to 20 ~ 100% of rated current Please refer to the Function Manual | |
| TEMPERATURE COMPENSATION | -3mV /℃/ cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells) | |
| ALARM SIGNAL | Isolated signal output for T-alarm and DC OK | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, EAC TP TC 020 | |
| Others | MTBF | 457.7K hrs min. Telcordia SR-332 (Bellcore) ; 100.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 300*85*41mm (L*W*H) | |
| PACKING | 2.1Kg;6pcs/13.6Kg/1.25CUFT | |
Meanwell RPB-1600-48 Features
l 5 years warranty
l Built-in OR-ing FET
l Optional conformal coating
l Built-in active PFC function
l Forced air cooling by built-in DC fan
l Output voltage and current programmable
l Active current sharing up to 4800W (2+1)
l Built-in default 3 stage charging curves and programmable curve. Built-in I'C interface, PMBus protocol (Optional CANBus protocol)
l Universal AC input/Full range (Withstand 300V AC surge input for 5 seconds)
l Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature
l Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Meanwell RPB-1600-48 Applications
l Large scale DC UPS or emergency backup system
l Marine battery charger module
l Electric scooter or vehicle charger station
l Wastewater treatment system
l Electrolysis system
Meanwell RPB-1600-48 Mechanical Diagram
