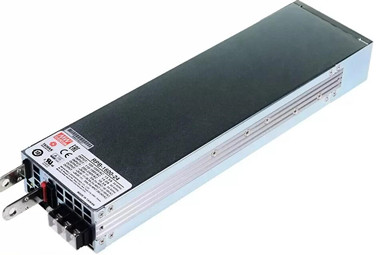

RPB-1600-12
395.35
Details
Meanwell RPB-1600-12 is a 1600W single output AC/DC charger with 14.4V13.8V100A11.5-15V330-1000Ah<45mA90~264VAC 250~370VDC. The product has high power density up to 25W/inch³. Three embedded charging curves are built, specifically for the lead-acid batteries. Due to the communication protocol, PMBus, and CANBus one spare curve can be further accommodated to meet other types of batteries such as the li-ion batteries. Additionally, the model is cooled by the thermostatically controlled fan. Moreover, RPB-1600-12 offers various protection mechanisms like Battery under voltage, Battery no connection, Short circuit, Over voltage and Over temperature. Thanks to its longevity, high efficiency, and excellent quality, Meanwell RPB-1600-12 provides the best safety for diversified types of applications.
Meanwell RPB-1600-12 Encoding
| RPB | Series Name |
| 1600 | Output Wattage |
| 12 | Nominal Voltage |
| □ | Communication Protocol Option |
Meanwell RPB-1600-12 Specifications
| Model | RPB-1600-12 | |
| OUTPUT | BOOST CHARGE VOLTAGE(Vboost)(default) | 14.4V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | |
| CONSTANT CURRENT(CC)(default) | 100A | |
| VOLTAGE ADJ. RANGE Note 5 | 11.5-15V | |
| By built-in potentiometer, SVR | ||
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) | 330-1000Ah | |
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <45mA | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 250 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT (Typ.) | 14A/115VAC 8A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 35A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 15.75 ~ 18.75V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to Function Manual | |
| OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage Please refer to the Function Manual | |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of output current is allowable to 20 ~ 100% of rated current Please refer to the Function Manual | |
| TEMPERATURE COMPENSATION | -3mV /℃/ cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells) | |
| ALARM SIGNAL | Isolated signal output for T-alarm and DC OK | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, EAC TP TC 020 | |
| Others | MTBF | 457.7K hrs min. Telcordia SR-332 (Bellcore) ; 100.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 300*85*41mm (L*W*H) | |
| PACKING | 2.1Kg;6pcs/13.6Kg/1.25CUFT | |
Meanwell RPB-1600-12 Features
l Built-in active PFC function
l Forced air cooling by built-in DC fan
l Output voltage and current programmable
l Built-in OR-ing FET
l Active current sharing up to 4800W (2+1)
l Optional conformal coating
l 5 years warranty
l Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
l Built-in default 3 stage charging curves and programmable curve. Built-in I'C interface, PMBus protocol (Optional CANBus protocol)
l Universal AC input/Full range (Withstand 300V AC surge input for 5 seconds)
l Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature
Meanwell RPB-1600-12 Applications
l Large scale DC UPS or emergency backup system
l Marine battery charger module
l Electric scooter or vehicle charger station
l Wastewater treatment system
l Electrolysis system
Meanwell RPB-1600-12 Mechanical Diagram
