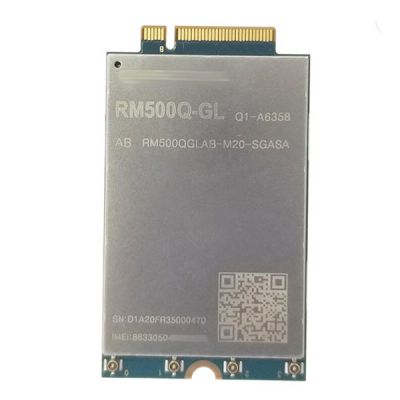

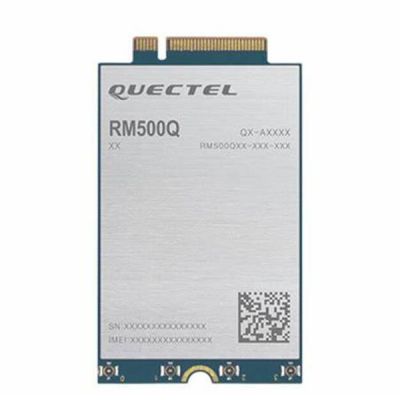

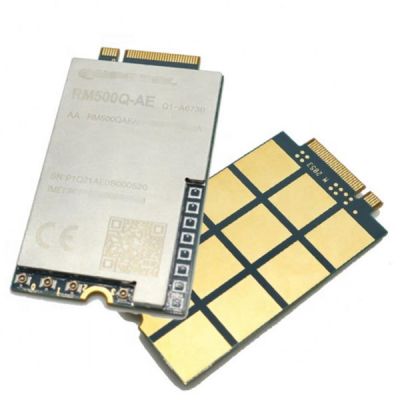

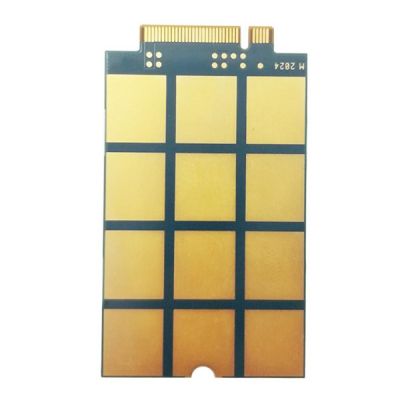

RM500Q-AE
388.16
Details
Quectel RM500Q is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel. 15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM500Q is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 module EM12 and Cat 20 module EM20 , which will facilitate customers to migrate from LTE-A to 5G.
The global version RM500Q-GL nearly covers all the main stream carriers worldwide. The module supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Quectel RM500Q Specification
|
RM500Q-GL |
Enhanced Features |
General Features |
|
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/ n66/n71/n77/n78/n79 |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
3GPP E-UTRA Release 15 |
|
LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/ |
(U)SIM Card Detection |
Supply Voltage: 3.1V~4.4V, 3.7V Typ. |
|
B12(17)/B13/B14/B20/B25/B26/B28/ |
DFOTA: Delta Firmware Upgrade Over-the-Air |
Temperature Range: -40°C ~ +85°C |
|
B29/B30/B32/B38/B39/B40/B41/B42/ |
GNSS: GPS/GLONASS/BeiDou/Galileo |
Dimensions: 52.0mm × 30.0mm × 2.3mm |
|
B43/B46/B48/B71 |
Embedded eUICC |
M.2 Package |
|
DL 4×4 MIMO: |
Electrical Characteristics Output Power: |
Approx. TBD |
|
5G NR: n1/n2/n3/n7/n41/n66/n77/n78/n79 |
Class 2 for n41/n77/n78/n79 |
3GPP TS27.007 and Quectel Enhanced AT |
|
LTE: B1/B2/B3/B4/B7/B25/B30/B38/B39/ |
Class 3 for other 5G NR bands |
Commands |
|
B40/B41/B42/B43/B48/B66 |
Class 3 for LTE-FDD |
Approvals |
|
DL 256QAM |
Class 3 for LTE-TDD |
Carrier① |
|
UL 64QAM |
Class 3 WCDMA Consumption: |
Regulatory①: |
|
WCDMA: B1/B2/B3/B4/B5/B8/B9/B19 |
TBD @Power off |
GCF (Global) |
|
Interfaces |
TBD @Sleep, Typ. |
CE (Europe) |
|
USB 2.0/3.0/3.1: Support Slave Mode |
TBD @Idle |
FCC/PTCRB (North America) |
|
(U)SIM: 1.8V/3.0V |
Sensitivity: |
CCC (China) Others: |
|
ANTCTL × 4 |
TBD |
RoHS Compliant |
|
W_DISABLE1#: Control Airplane Mode |
Software Features |
WHQL |
|
RESET#: Reset the Module |
MBIM Driver: Windows 10 |
* Under Development |
|
WAKE_ON_WAN#: Wake up the Host |
USB Serial Driver: Windows 7/8/8.1/10, Linux |
① means TBD. |
Quectel RM500Q Feature
- 5G SA Sub-6: Max. 3.3Gbps (DL) / Max. 250Mbps (UL)
- 5G NA Sub-6: Max. 3.4Gbps (DL) / Max. 200Mbps (UL)
- LTE: LTE-FDD: Max. 2Gbps (DL) / Msx. 150Mbps (UL)
- UMTS: WCDMA: Max. 42bps (DL) / Max. 5.76Mbps (UL)
- Protocols:TCP, UDP, FTP, HTTP, HTTPS, PING, SMS
- Interfaces: 2x SIM (1.8V/3.0V), USB (2.0/3.0/3.1), PCI Gen3*2 Lane, RPCM, I2C, GPIO,
- Supply voltage range: 3.135V-4.4V, 3.7V typ.
- Operation temperature: -20°C to+60°C
- GNSS: GPS/GLONASS/BeiDou/Galileo
- Dimensions: 52x30x2,3mm
- Reset_N, Antenna
- MIMO: 4x4 DL
- Digital Audio
- Form Factor: M.2
- Weigt: 8.4g
