RKP-6K1U-12
396.36
Details

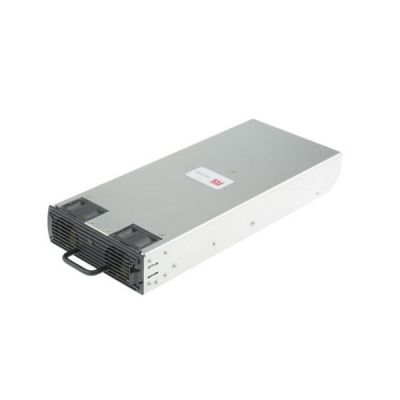

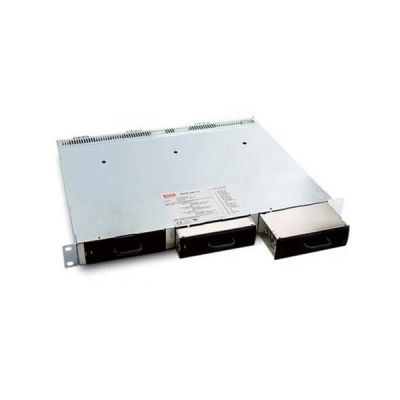

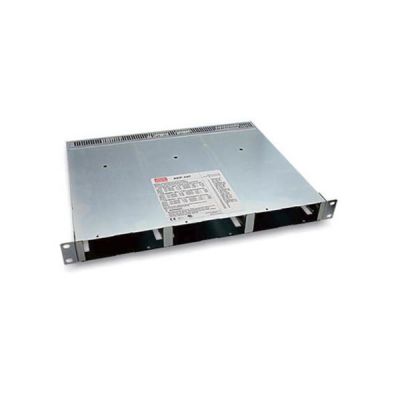

Meanwell RKP-6K1U-12 Rack System is a power distribution solution with RCP-2000-12RKP-1UI or RKP-1UT12V300A3600W under the rack configuration with 1U low profile. Starting with a single unit of 2000W, RCP-2000 is the front end rectifier (or power supply) with the active current sharing function. RKP-6K1U-12 could provide up to 6000W output power using a 19-inch mounting bracket. The design flexibility for system applications is ideally fulfilled by various built-in features, such as output programming, communication protocol PMBus, remote ON-OFF, auxiliary power, external control/monitor via the control model RCP-CMU-1, etc.
Meanwell RKP-6K1U-12 Encoding
| Rack Shelf | |
| RKP | Series Name |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C20) |
| T: Terminal block | |
| CMU1 | CMU1: with RKP-CMU1 |
| -: Without RKP-CMU1 | |
| Whole System | |
| RKP | Series Name |
| 6K1U | 1U: Profile of the system |
| 6K: Maximum wattage with fully populated shelf | |
| I | I : AC Inlet ( IEC320-C20) |
| T: Terminal block | |
| CMU1 | CMU1: with RPK-CMU1 |
| -: Without RKP-CMU1 | |
| 12 | Output voltage |
Meanwell RKP-6K1U-12 Specifications
| Model | RKP-6K1U-12 | |
| Output | Rectifier | RCP-2000-12 |
| Rack Shelf | RKP-1UI or RKP-1UT | |
| Output Voltage | 12V | |
| Max Output Current | 300A | |
| Max Output Power | 3600W | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Typ.)PER MODULE | 13A/115VAC 7A/230VAC | |
| LEAKAGE CURR ENT | <3.5mA / 230VAC | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| DC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| AC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| OVER TEMP WARNING | Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal | |
| FAN FAIL SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| OTHERS | DIMENSION | Rack 350.8*482.6*44(L*W*H, with mounting bracket) ; 350.8*440*44(L*W*H, without mounting bracket) |
| PACKING | 14.1Kg; 1pcs/14.1Kg/2.67CUFT | |
Meanwell RKP-6K1U-12 Features
l Universal AC input/ Full range
l Output voltage programmable
l Support hot swap (hot plug)
l Built-in PMBus protocol
l 5 years warranty
l 1U profile 19" rack shelf, fitting three 2000W modules up to 6000W with active current sharing
Meanwell RKP-6K1U-12 Applications
l Industrial automation
l Redundant power system
l Electric vehicle charger system
l Constant current source system
l Distributed power architecture system
l Wireless/telecommunication solution
Meanwell RKP-6K1U-12 Mechanical Diagram
