RID-50
14.89
Details

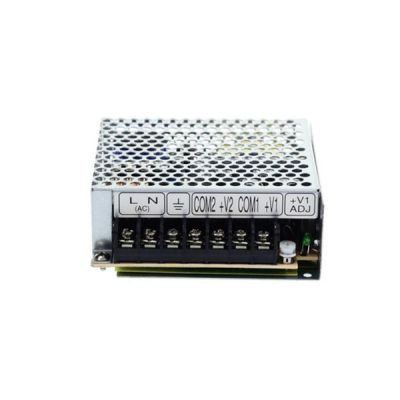

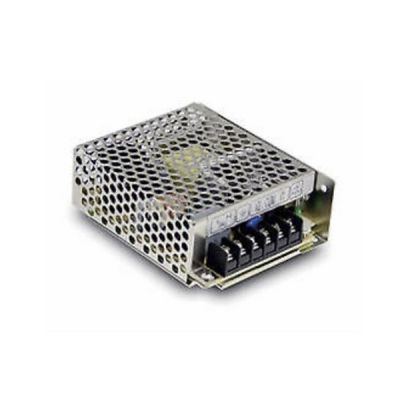

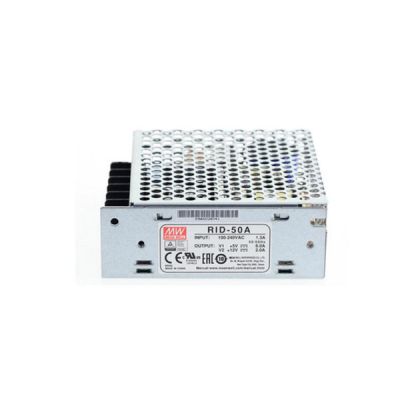

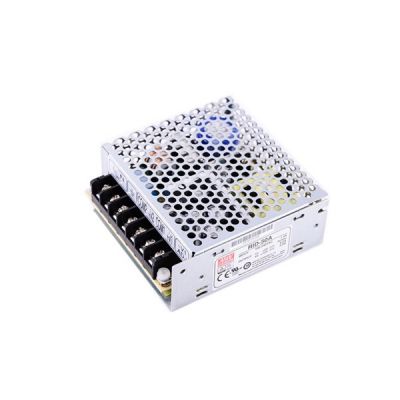

Meanwell RID-50 Series is 50W Dual Output Miniature size, non-PFC Switching Power Supply. The entire series use 105C long life electrolytic capacitors, and can withstand 300V AC surge input for 5 second and also 5G vibration test. They can work at temperature up to 70C. Considering its High efficiency, long life and high reliability.RID-50 Series is very suitable for critical applications
Meanwell RID-50 Series Model Specifications
| Model | RID-50A | RID-50B | |||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 4V | 4V | |
| RATED CURRENT | 6A | 2A | 4A | 1.4A | |
| CURRENT RANGE | 0-6A | 0-3A | 0-6A | 0-2A | |
| RATED POWER | 54W | 53W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | CH1: 4.75-5.5V | CH1: 4.75-5.5V | |||
| VOLTAGE TOLERANCE | ±2.0% | ±8% | ±2% | ±8% | |
| LINE REGUL ATION | ±0.5% | ±1.5% | ±0.5% | ±1.5% | |
| LOAD REGUL ATION | ±0.5% | ±5% | ±0.5% | ±5% | |
| SETUP, RISE TIME | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 60ms/230VAC 10ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 78.00% | 79.00% | |||
| AC CURRENT (Typ.) | 1.3A/115VAC 0.8A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 48A/230VAC | ||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| UL62368-1, | |||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃)on CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | ||||
| Others | MTBF | 172.6Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 99*97*36mm (L*W*H) | ||||
| PACKING | 0.41Kg; 45pcs/19.5Kg/0.94CUFT | ||||
Meanwell RID-50 Series Features
l lsolated output & GND for CH1,CH2
l Universal AC input/ Full range
l Protections: Short circuit 1 Overload 1 Over voltage
l Cooling by free air convection
l L ED indicator for power on
l 100% full load burn-in test
l All using 105C long life electrolytic capacitors
l Withstand 300V AC surge input for 5 second
l High operating temperature up to 70 degree
l Withstand 5G vibration test
l High efficiency, long life and high reliability
l 3 years warranty

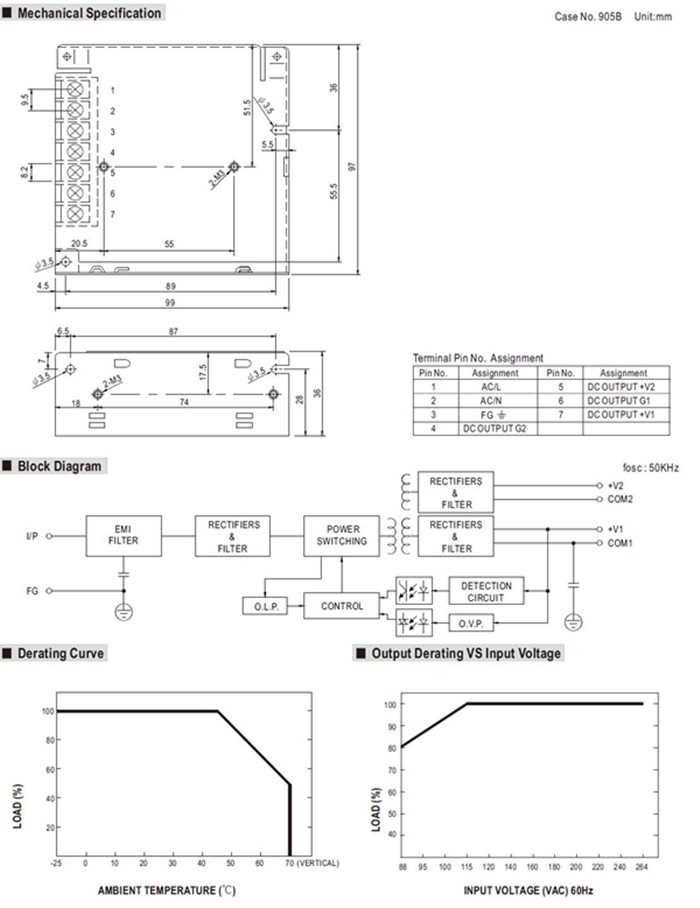

Meanwell RID-50 Series Mechanical Diagram
