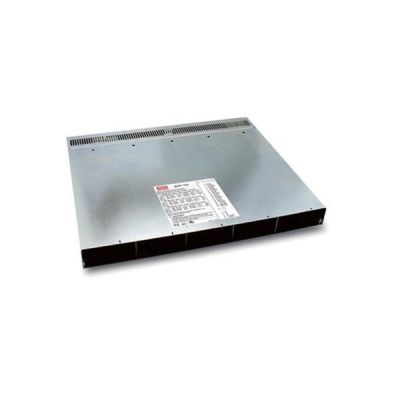

RHP-8K1U-24
370.28
Details
Meanwell RHP-8K1U-24 and RHB-1U rack charger system are the complete solutions for the power distribution using the rack configuration with the 1U low profile. Starting with a single unit of 1600W. Meanwell RHP-8K1U-24 is the front end rectifier (or, power supply) and RCB-1 600 is the charger module. Thanks to the design of the active parallel function, the rectifier or charger can provide up to 8000W of power when paired with a single-layer 19 inch rack-mounted chassis RHP-1U. When the rectifier is stacked with three layers, it can provide up to 24000W of power.
Meanwell RHP-8K1U-24 Encoding
| Rack Shelf | |
| RHP | Series Name |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| A | Rack Shelf for 1600W unit |
| *** | Communication protocol option |
| Whole System | |
| RHP | Series Name RHP: Power Supply System |
| Series Name RHB: Charger System | |
| 8K | 8K: Maximum wattage with fully populated shelf |
| 1U: Profile of the system | |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| 24 | Output Voltage |
| *** | Communication protocol option |
| Blank | PMBuc Protocol In stock |
| CAN | CANBus Protocol By Request |
Meanwell RHP-8K1U-24 Specifications
| Model | RHP-8K1U-24 | |
| Output | Rectifier | RCP-1600-24 |
| Rack Shelf | RHP-1UI-A or RHP-1UT-A | |
| Output Voltage | 24V | |
| Max Output Current | 335A | |
| Max Output Power | 8040W | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Typ.)PER MODULE | 15A/115VAC 8.5A/230VAC | |
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 125% of nominal output voltage(60~125% for 12V). |
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, AC-OK and DC-OK | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V) | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| DIMENSION | Rack 365*482.6*44(L*W*H, with mounting bracket) ; 365*440*44(L*W*H, without mounting bracket | |
| PACKING | 5.5Kg; 3pcs/17.5Kg/2.11CUFT | |
Meanwell RHP-8K1U-24 Features
l 5 years warranty
l Support hot swap (hot plug)
l Universal AC input/ Full range
l Output voltage and current programmable
l Built-in PMBus protocol (Optional CANBus protocol)
l 1U profile 19" rack shelf, fitting five 1600W modules up to 8000W with active current sharing
Meanwell RHP-8K1U-24 Applications
l Distributed power architecture system
l Wireless/telecommunication solution
l Electric vehicle or marine charger station
l DC UPS or emergency backup
l Wastewater treatment system
l Electrolysis system
Meanwell RHP-8K1U-24 Mechanical Diagram
