Meanwell 60W 2"x1" Package Reliable Railway DC-DC Converter with 48V15mA1.45A±12V0-±2.5A

- +
Availability:In stock
SKU Meanwell RDDW60G-12
Brand Meanwell
Details

Meanwell RDDW60G-12 is 60W DC-DC reliable railway Converter with 48V15mA1.45A±12V0-±2.5A. The model outstands module type and 2"x1" package. At the same time, the main features are as foolowing: international standard pins, high efficiency up to 92%, wide working temperature range -40~+85℃, 1.6KVDC (F/G models)/3KVDC(H models) I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. In addition, the models account for different input voltage 9~36V, 18~75V and 40~160V 4:1wide input range, and various output voltage 3.3V/5V/12V/15V/24V/48V for single output, and ±12V/±15 for dual outputs. Thanks to its high efficiency, excellent reliability and good performane, Meanwell RDDW60G-12 is suitable for railway, trams, buses, and also can be used in the harsh environment with high vibration, high dust,extremely low or high temperature, etc.

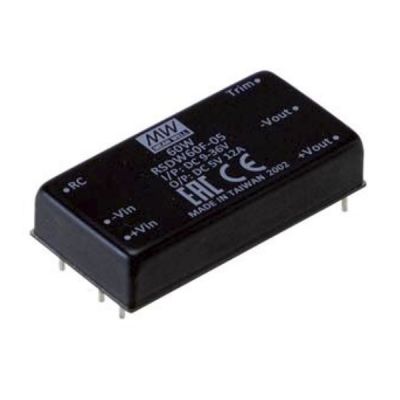

RDDW60G-12 Meanwell Power Supply 60W DIP Reliable Railway DC-DC Converter RDDW60G RDDW60G-15 RSDW60 RDDW60 YCICT

Meanwell RDDW60G-12 Encoding

RDDW Series Name S: Single Mode, D: Dual Mode
60 Rated Wattage
G Input voltage ( F: 9-36Vdc, G: 18-75Vdc, H: 40-160Vdc)
12 Output Voltage (3.3/5/12/15/24/48Vdc, ±12/15Vdc)

Meanwell RDDW60G-12 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
RDDW60G-12 Normal 48V (18~75V) 15mA 1.45A ±12V 0-±2.5A 90.0% 3900μF
RDDW60G-15 15mA 1.45A ±15V 0-±2A 90% 2400μF
INPUT VOLTAGE RANGE F: 9~36Vdc, G: 18~75Vdc, H: 40~160Vdc
SURGE VOLTAGE (100ms max.) 24Vin models : 50Vdc, 48Vin models : 100Vdc, 110Vin models : 200Vdc
FILTER Pi type
PROTECTION Fuse recommended. 24Vin models: 12A delay time Type, 48Vin models: 6A delay time Type, 110Vin models: 3A delay time Type
OUTPUT VOLTAGE ACCURACY ±1.0%
RATED POWER 60W
RIPPLE & NOISE Single output models: 3.3Vo~5Vo: 100mVp-p, 12Vo~48Vo: 150mVp-p
Dual output models: 125mVp-p
LINE REGULATION Single output models:±0.2%, Dual output models:±0.5%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
CROSS REGULATION ±5% at 25%~100% load for 24Vin/48Vin models
SWITCHING FREQUENCY (Typ.) 250KHz
EXTERNAL TRIM ADJ. RANGE (Typ.) ±10% (Single output model only)
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 125~210% rated output power
Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by diode
OVER TEMPERATURE Tcase temperature 110 max
UNDER VOLTAGE LOCKOUT 24Vin: 8Vdc, 48Vin: 16Vdc, 110Vin: 34Vdc
FUNCTION REMOTE CONTROL Power ON: R.C~-Vin >3~12Vdc or open circuit
Power OFF: R.C~-Vin <1.2Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +110 max.
WORKING HUMIDITY 20%~90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.05%/ (0~55)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved
WITHSTAND VOLTAGE 24Vin/48Vin models: I/P-O/P 1.6KVDC, 110Vin models: 3KVDC
ISOLATION RESISTANCE I/P-O/P:1000M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 1500pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 Class A/B with external components
Radiated BS EN/EN55032
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±6KV contact
EFT/Bursts BS EN/EN61000-4-4 Level 1,±0.5KV
Surge BS EN/EN61000-4-5 Level 1,±0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 10V (e.m.f.)
Magnetic field BS EN/EN61000-4-8 10A/m
RAILWAY STANDARD EN50155 / IEC60571 including EN61373 for shock & vibration, EN50121-3-2 for EMC
OTHERS MTBF 205Khrs MIL-HDBK-217F (25)
DIMENSION (L*W*H) 50.8*25.4*10.5mm (2*1*0.413 inch)
CASE MATERIAL Metal Case
PACKING F/G models: 37.6g, H models: 45g ; 18pcs/per tube, 288pcs/16 tube max./carton

Meanwell RDDW60G-12 Features

l  Compliance with EN501 55 railway standard

l  2"x1" compact size with low profile (10.5mm)

l  4:1 wide input range

l  1.6KV DC, 3KVDC I/O isolation by models

l  No minimum load required

l  Remote ON/OFF control

l  Wide operating temperature range -40~+85℃

l  Protections: Short circuit (Continuous)/Overload/Over voltage/Over temperature/ Input under voltage lock-out

l  Full encapsulated

l  3 years warranty

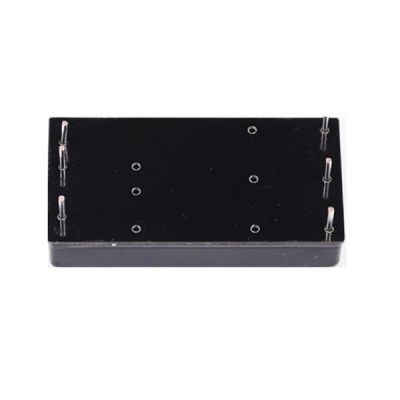

RDDW60G-12 Meanwell Power Supply 60W 12V DIP Railway DC-DC Converter RDDW60G RDDW60G-15 RSDW60 RDDW60 YCICT

Meanwell RDDW60G-12 Applications

l  Instrument

l  Analyzer

l  Wireless network

l  Industrial control facility

l  Telecom/Datacom system

l  Bus, tram, metro or railway system

l  Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment

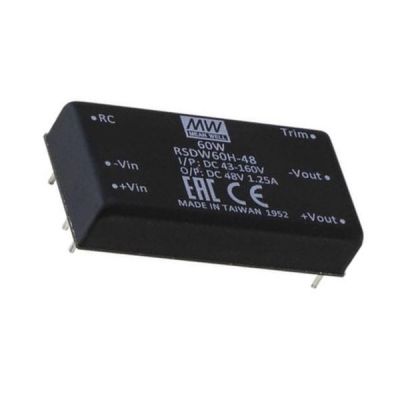

RDDW60G-12 Meanwell Power Supply 60W 12V DIP Reliable Railway DC-DC Converter RDDW60G RDDW60G-15 RSDW60 RDDW60 YCICT

Meanwell RDDW60G-12 Mechanical Diagram

RDDW60G-12 Meanwell Power Supply 60W DIP Reliable Railway DC-DC Converter RDDW60G RDDW60G-15 RSDW60 RDDW60 YCICT
