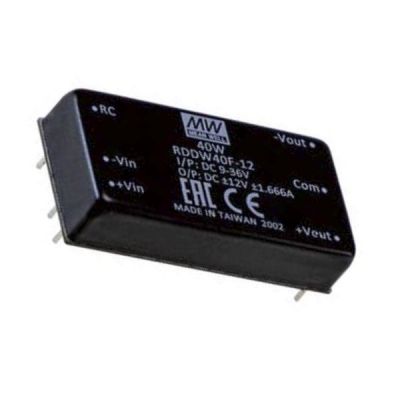

Meanwell RDDW40F-12 is 40W DC-DC reliable railway Converter with 24V15mA1.95A±12V0-±1.666A. The model outstands module type and 2"x1" package. At the same time, the main features are as following: international standard pins, high efficiency up to 92%, wide working temperature range -40~+90℃, 1.6KVDC (F/G models)/3KVDC (H models) I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. Additionally, the models account for different input voltage 9~36V, 18~75V and 40~160V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V/24V/48V for single output, and ±12V/±15 for dual outputs. In light of its high efficiency, excellent reliability, and good performane, Meanwell RDDW40F-12 is suitable for railway, trams, buses, and also can be used in the harsh environment with high vibration, high dust,extremely low or high temperature, etc.
Meanwell RDDW40F-12 Encoding
| RDDW | Series Name S: Single Mode, D: Dual Mode |
| 40 | Rated Wattage |
| F | Input voltage ( F: 9-36Vdc, G: 18-75Vdc, H: 40-160Vdc) |
| 12 | Output Voltage (3.3/5/12/15/24/48Vdc, ±12/15Vdc) |
Meanwell RDDW40F-12 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| RDDW40F-12 | Normal 24V (9~36V) | 15mA | 1.95A | ±12V | 0-±1.666A | 89% | 2600μF |
| RDDW40F-15 | 15mA | 1.95A | ±15V | 0-±1.333A | 90% | 1600μF | |
| INPUT | VOLTAGE RANGE | F: 9~36Vdc, G: 18~75Vdc, H: 40~160Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 24Vin models: 50Vdc, 48Vin models: 100Vdc, 110Vin models: 200Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION | Fuse recommended. 24Vin models: 8A delay time Type, 48Vin models: 4A delay time Type, 110Vin models: 2A delay time Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.0% | |||||
| RATED POWER | 40W | ||||||
| RIPPLE & NOISE | Single output models: 3.3Vo~15Vo: 100mVp-p, 24Vo~48Vo: 150mVp-p Dual output models: 125mVp-p |
||||||
| LINE REGULATION | Single output models:±0.2%, Dual output models:±0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5%, Dual output models:±1% | ||||||
| CROSS REGULATION | ±5% at 25%~100% load for 24Vin/48Vin models | ||||||
| SWITCHING FREQUENCY (Typ.) | 250KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | ±10% (Single output model only) | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 125~210% rated output power | ||||||
| Protection type: Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type: Clamp by diode | ||||||
| OVER TEMPERATURE | Tcase temperature 110℃ max. | ||||||
| UNDER VOLTAGE LOCKOUT | 24Vin: 8Vdc, 48Vin: 16Vdc, 110Vin: 34Vdc | ||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C~-Vin >3~12Vdc or open circuit Power OFF: R.C~-Vin <1.2Vdc or short |
|||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +110℃ max. | ||||||
| WORKING HUMIDITY | 20%~90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.05%/℃ (0~55℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃ max | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved | |||||
| WITHSTAND VOLTAGE | 24Vin / 48Vin models: I/P-O/P 1.6KVDC, 110Vin models: 3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A/B with external components | |||||
| Radiated | BS EN/EN55032 | ||||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±6KV contact | |||||
| EFT/Bursts | BS EN/EN61000-4-4 | Level 1,±0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1,±0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 10V (e.m.f.) | |||||
| Magnetic field | BS EN/EN61000-4-8 | 10A/m | |||||
| RAILWAY STANDARD | EN50155 / IEC60571 including EN61373 for shock & vibration, EN50121-3-2 for EMC | ||||||
| OTHERS | MTBF | 779Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | 50.8*25.4*10.5mm (2*1*0.413 inch) | ||||||
| CASE MATERIAL | Metal Case | ||||||
| PACKING | F/G models: 37.6g, H models: 45g ; 18pcs/per tube, 288pcs/16 tube max./carton | ||||||
Meanwell RDDW40F-12 Features
l 2"x1" compact size with low profile (10.5mm)
l 4:1 wide input range
l Full encapsulated
l Remote ON/OFF control
l Compliance with EN501 55 railway standard
l Wide operating temperature range -40 ~+90℃
l No minimum load required
l 1.6KVDC,3KV DC I/O isolation by models
l Protections: Short circuit (Continuous)/Overload/Over voltage/Over temperature/Input under voltage lock-out
l 3 years warranty
Meanwell RDDW40F-12 Applications
l Industrial control facility
l Instrument
l Analyzer
l Bus, tram, metro or railway system
l Telecom/Datacom system
l Wireless network
l Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment
Meanwell RDDW40F-12 Mechanical Diagram
