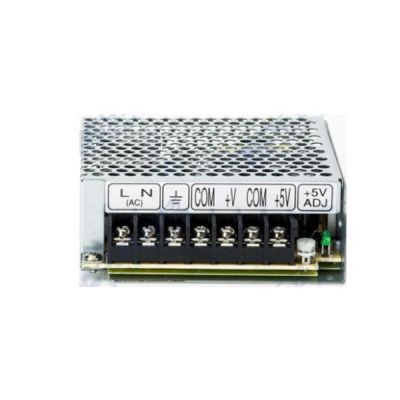

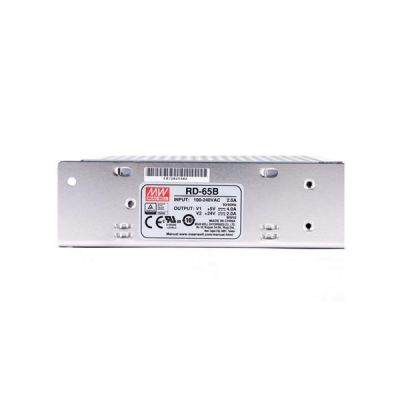

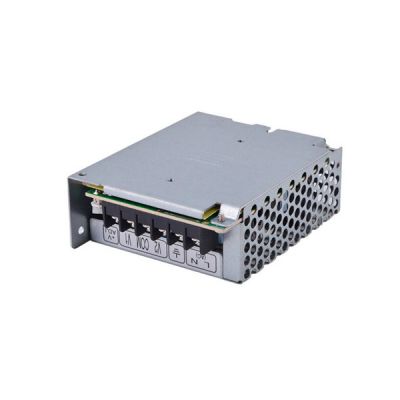

Meanwell RD-65 Series is 65W Dual Output Miniature size, non-PFC Switching Power Supply. The entire series can withstand 300V AC surge input for 5 second and 5G vibration test. They all use105℃long life electrolytic capacitors and operate at 70°C high ambient temperature .2 outputs are isolated for RID series. Considering High efficiency, long life and high reliability,RD-65 Series is suitable for critical applications.
Meanwell RD-65 Serial Model Specifications
| Model | RD-65A | RD-65B | |||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 5V | 24V | |
| RATED CURRENT | 6A | 3A | 4A | 2A | |
| CURRENT RANGE | 0-8A | 0-4A | 0-8A | 0-3A | |
| RATED POWER | 66W | 68W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | CH1: 4.75-5.5V | CH1: 4.75-5.5V | |||
| VOLTAGE TOLERANCE | ±2.0% | ±6% | ±2% | +4,-8% | |
| LINE REGUL ATION | ±0.5% | ±1.5% | ±0.5% | ±2% | |
| LOAD REGUL ATION | ±0.5% | ±3% | ±0.5% | ±6% | |
| SETUP, RISE TIME | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 60ms/230VAC 14ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 78.00% | 77.00% | |||
| AC CURRENT (Typ.) | 2A/115VAC 1.2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/230VAC | ||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| UL62368-1, | |||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃)on CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | ||||
| Others | MTBF | 265.9Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 129*98*38mm (L*W*H) | ||||
| PACKING | 0.44Kg; 30pcs/14.2Kg/0.72CUFT | ||||
Meanwell RD-65 Series Features
l Universal AC input/ Full range
l Protections: Short circuit/ Overload / Over voltage
l Cooling by free air convection
l LED indicator for power on
l 100% full load burn-in test
l All using 105 C long life electrolytic capacitors
l Withstand 300V AC surge input for 5 second
l High operating temperature up to 70C
l Withstand 5G vibration test
l High efficiency, long life and high reliability
l 3 years warranty

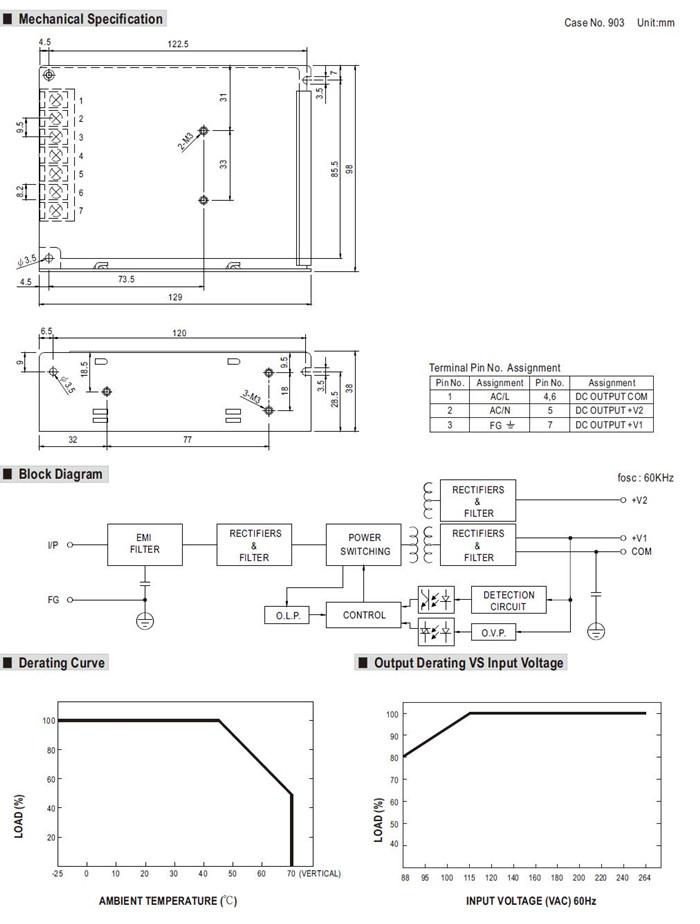

Meanwell RD-65 Series Mechanical Diagram
