RCP-MU
216.48
Details

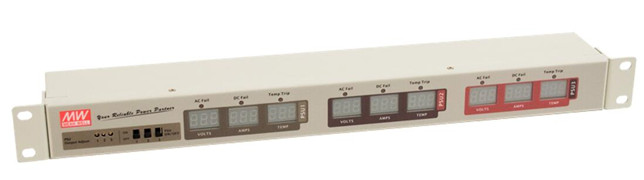

Meanwell RCP-MU is the monitoring and control unit used for the RCP-1000 series rack power. It can decode the I²C signal sent by RCP series and display through digital meters or relay contact signals. Apart from them, RCP-MU can also turn ON/OFF or trim the output voltage of RCP-1000 remotely that make the basic control more easily.
Meanwell RCP-MU Specifications
| Model | RCP-MU | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT( Typ) | 0.35A/115VAC 0.2A/230VAC | |
| INRUSH CURRENT (Typ.) | 30A/115VAC 50A/230VAC | |
| MONITORING INPUTS | I²C signal ( AC OK, DC OK, and over temperature alarm signals for each RCP-1000 unit ), output voltage of the RCP-1U rack | |
| OUTPUT | DIGITAL METER | Display the DC output voltage, current, and internal temperature of each RCP-1000 unit |
| CONTROL OUTPUT | Remote ON/OFF and output voltage trimming for each RCP-1000 unit | |
| RELAY CONTACT | Alarm for AC Fail, DC Fail, and Over Temperature ; rating : 30VDC, 1A | |
| LED INDICATOR | AC Fail, DC Fail, Over Temperature | |
| FUNCTION | REMOTE ON/OFF CONTROL | The controlled RCP-1000 unit can be turned ON/OFF on the front panel for RCP-MU |
| VOLTAGE TRIM | Output voltage of the controlled RCP-1000 unit and be trimmed by ±10% on the front panel of RCP-MU | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ |
| WORKING HUMIDITY | 20~90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | Design refer to EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 | |
| OTHERS | MTBF | 346.7K hrs min. Telcordia SR-332 (Bellcore) ; 255.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 440*68*44mm (L*W*H) | |
| PACKING | 1.15Kg; 6pcs/8Kg/1.27CUFT | |
Meanwell RCP-MU Features
l 1U low profile
l 19-inch rack mounting
l Control and monitor up to 3 RCP-1000 units
l Suitable for all kinds of RCP output (12V ,24V,48V)
l Digital meters for output voltage, output current, and internal temperatureon front panel
l Potential meter for adjusting output voltage of RCP-1000 unit on front panel
l Relay contacts and LED indicators for AC fail, DC fail, and over temperaturewarning
l Removable fixing accessory
l 3 years warranty

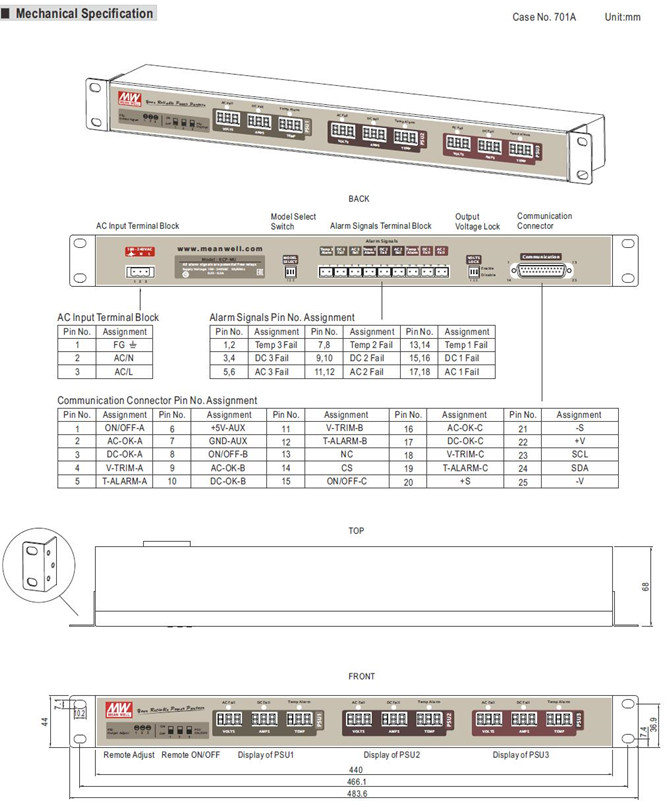

Meanwell RCP-MU Mechanical Diagram
