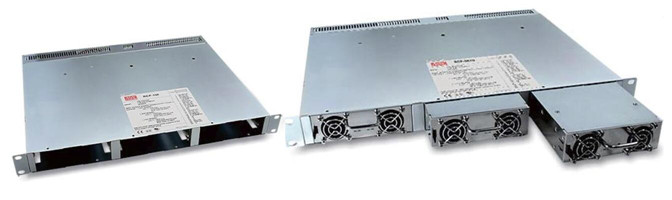

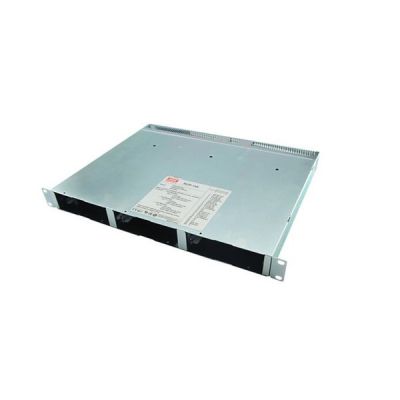

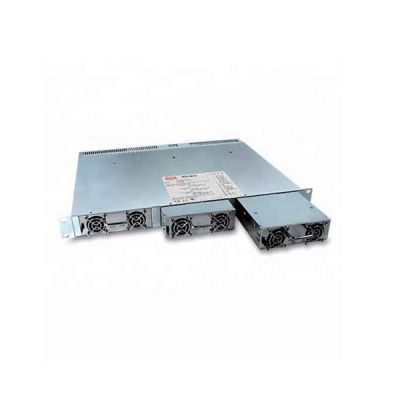

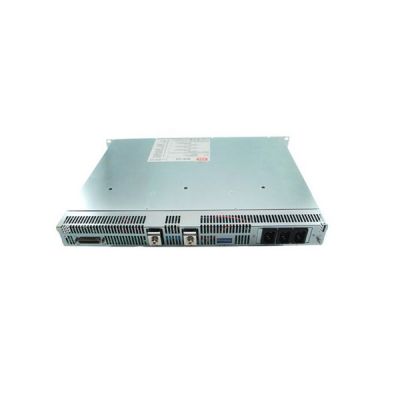

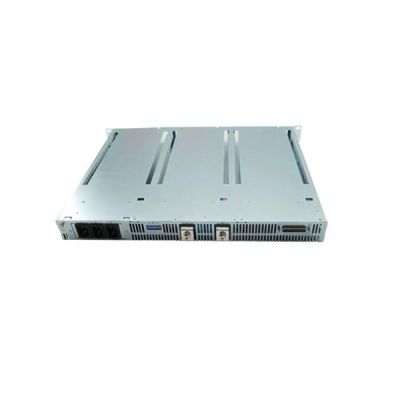

Meanwell RCP-3K1U Rack System is a power distribution solution using a 1U rack structure. Starting from a single unit of 1000W, the RCP-1000 is a front-end rectifier (or power supply) with a current sharing function. Using a 19-inch mounting bracket, RCP-1U can provide 3000W output power. The whole system has built-in multiple functions, such as output adjustable, telemetry switch, auxiliary power supply, etc., to provide flexibility and convenience for design and use.
Meanwell RCP-3K1U Series Encoding/ Ordering Info
| Rack Shelf | |
| RCP | Series Name |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| Whole System | |
| RCP | Series Name |
| 3K | 3K: Maximum wattage with fully-populated shelf |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| 12 | Output Voltage |
| C | C: With I²C Interface |
| -: WithoutI²C Interface | |
Meanwell RCP-3K1U Series Model Specifications

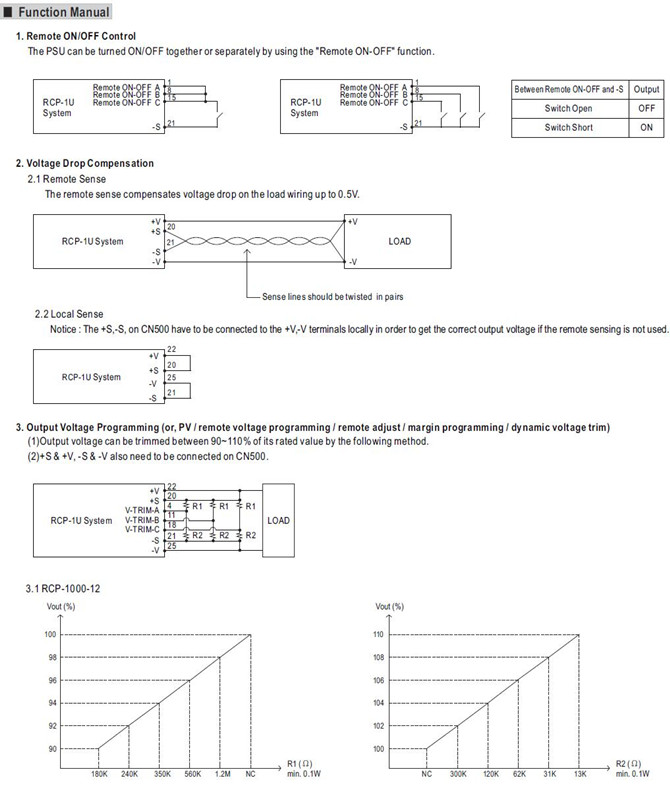

| Model | RCP-3K1U-12 | RCP-3K1U-24 | RCP-3K1U-48 | |
| Output | Rectifier | RCP-1000-12 | RCP-1000-24 | RCP-1000-48 |
| RATED CURRENT | 60A | 40A | 21A | |
| Rack Shelf | RCP-1UI or RCP-1UT | |||
| Output Voltage | 12V | 24V | 48V | |
| Max Output Current | 180A | 120A | 63A | |
| Max Output Power | 2160W | 2880W | 3024W | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| AC CURRENT (Typ.)PER MODULE | 8.5A/115VAC 4.5A/230VAC | 10.5A/115VAC 5.5A/230VAC | 11A/115VAC 5.5A/230VAC | |
| LEAKAGE CURR ENT | <3.5mA / 230VAC | |||
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A | ||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. | |||
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage | |||
| DC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |||
| AC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |||
| OVER TEMP WARNING | Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal | |||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class B | ||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| DIMENSION | Rack 350.8*483.6*44(L*W*H) | |||
| PACKING | 13.2Kg; 1pcs/13.2Kg/2.67CUFT | |||
Meanwell RCP-3K1U Series Features
l Universal AC input/ Full range
l 1U profile 19" rack shelf, fitting three 1000W modules
l up to 3000W with active current sharing
l Output voltage programmable
l Support hot swap (hot plug)
l 5 years warranty
Meanwell RCP-3K1U Series Applications
l Industrial automation
l Distributed power architecture system
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system

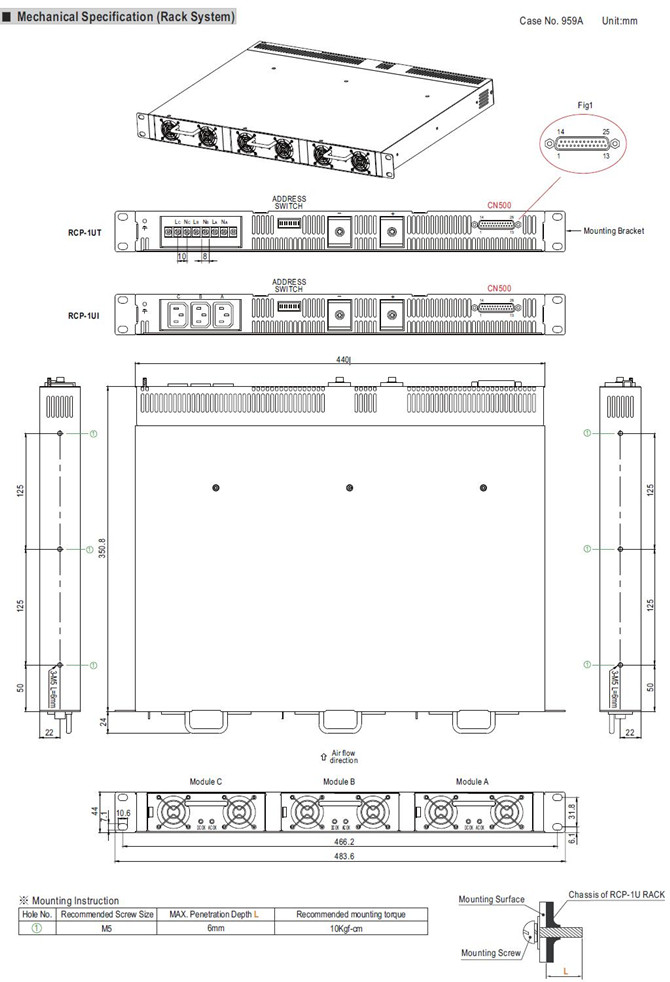

Meanwell RCP-3K1U Series Mechanical Diagram
