RCP-3K1U-48
383.19
Details

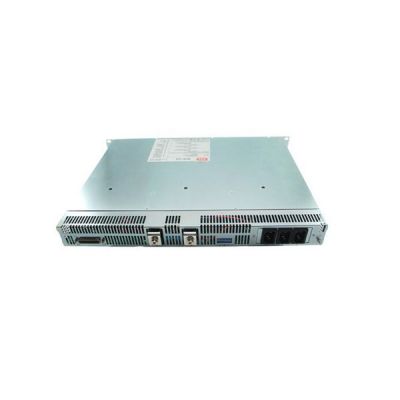

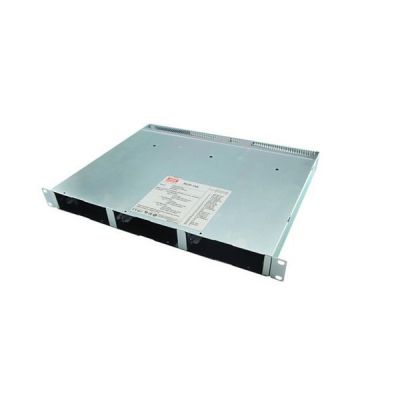

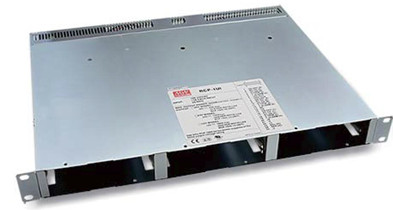

Meanwell RCP-3K1U-48 is a power distribution solution with RCP-1000-4821ARCP-1UI or RCP-1UT48V63A3024W. It adopts a 1U rack structure. With starting from a single unit of 1000W, Meanwell RCP-3K1U-48 is a front-end rectifier (or power supply) with a current sharing function. By using a 19-inch mounting bracket, RCP-3K1U-48 can supply 3000W output power. The whole system has built-in multiple functions, such as output adjustable, telemetry switch, auxiliary power supply, etc., to provide flexibility and convenience for design and use.
Meanwell RCP-3K1U-48 Encoding/ Ordering Info
| Rack Shell | |
| RCP | Series Name |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| Whole System | |
| RCP | Series Name |
| 3K | 3K: Maximum wattage with fully-populated shelf |
| 1U | Profile of the system |
| I | I : AC Inlet ( IEC320-C14) |
| T: Terminal block | |
| 48 | Output Voltage |
| C | C: With I²C Interface |
| -: WithoutI²C Interface | |
Meanwell RCP-3K1U-48 Specifications
| Model | RCP-3K1U-48 | |
| Output | Rectifier | RCP-1000-48 |
| RATED CURRENT | 21A | |
| Rack Shelf | RCP-1UI or RCP-1UT | |
| Output Voltage | 48V | |
| Max Output Current | 63A | |
| Max Output Power | 3024W | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Typ.)PER MODULE | 11A/115VAC 5.5A/230VAC | |
| LEAKAGE CURR ENT | <3.5mA / 230VAC | |
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. | |
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage | |
| DC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| AC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| OVER TEMP WARNING | Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| DIMENSION | Rack 350.8*483.6*44(L*W*H) | |
| PACKING | 13.2Kg; 1pcs/13.2Kg/2.67CUFT | |
Meanwell RCP-3K1U-48 Features
l Universal AC input/ Full range
l up to 3000W with active current sharing
l Output voltage programmable
l Support hot swap (hot plug)
l 5 years warranty

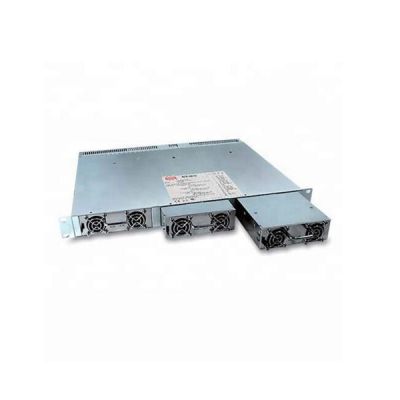

l 1U profile 19" rack shelf, fitting three 1000W modules
Meanwell RCP-3K1U-48 Applications
l Industrial automation
l Distributed power architecture system
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system
Meanwell RCP-3K1U-48 Mechanical Diagram
