RCP-2000-24
533.57
Details

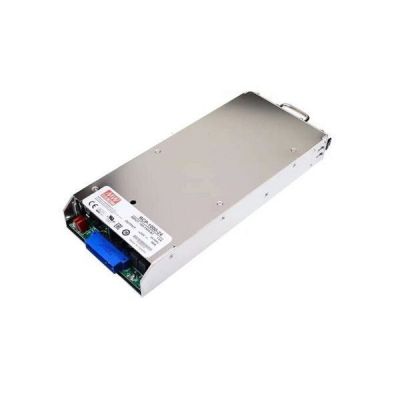

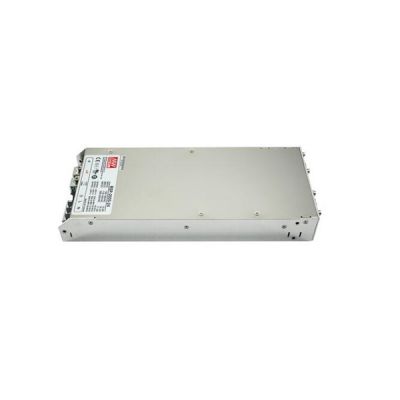

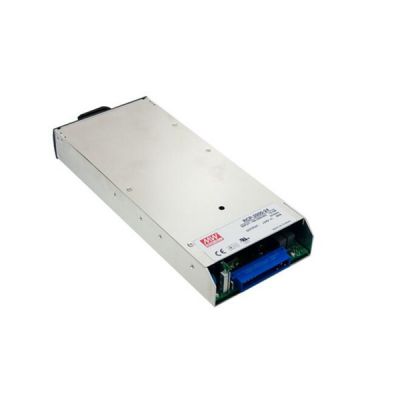

Meanwell RCP-2000-24 is a 2000W single output rack mountable front end AC/DC power supply with 24V80A0-80A1920W200 mVp-p21-28V. It is designed 1U low profile and high power density up to 25W/inch³. What’s more, the item works for 90~ 264VAC input voltage and equipped with the DC output mostly demanded from the industry. The model is cooled by the built-in DC fan with fan speed control. With the efficiency reaching high up to 92% and active PFC function, RCP-2000-24 is able to operate for the temperature up to 70℃. In addition to them, it offers the vast design flexibility via the various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 18000W via three 19" rack shelves, RKP-1U), remote control, auxiliary power, alarm signal, external control/monitor via the control model RKP-CMU1, etc. Maximum number monitored by master controller in communication shall be 9 power supplies. Thanks to its long life, high reliability and high efficiency, Meanwell RCP-2000-24 is a high performance power supply solution for various industrial applications such as industrial automation, redundant power system and electric vehicle charger system, and so on.
Meanwell RCP-2000-24 Encoding
| RCP | Series Name |
| 2000 | Output Wattage |
| 24 | Output Voltage |
Meanwell RCP-2000-24 Specifications
| Model | RCP-2000-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 80A | |
| CURRENT RANGE | 0-80A | |
| RATED POWER | 1920W | |
| RIPPLE & NOISE (max.) | 200 mVp-p | |
| VOLTAGE ADJ. RANGE(SVR) | 21-28V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms/230VAC at 75% load 10ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 320VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.98/230VAC at full load | |
| EFFICIENCY (Typ.) | 90.50% | |
| AC CURRENT (Typ.) | 16A/115VAC 10A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A | |
| LEAKAGE CURR ENT | <1.1mA / 230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated current |
| Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover | ||
| OVER VOLTAGE | 29.5 ~ 35V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage. | |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |
| DC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| AC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| OVER TEMP WARNING | Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal | |
| FAN FAIL SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |
| ENVIRONMENT | WORKING TEMP | -35 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| Others | MTBF | 444.9K hrs min. Telcordia SR-332 (Bellcore) ; 37.4K hrs min. MIL-HDBK-217F (25℃ |
| DIMENSION | 295*127*41mm (L*W*H) | |
| PACKING | 2Kg; 6pcs/13Kg/1.04CUFT | |
Meanwell RCP-2000-24 Features
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 92%
l Optional conformal coating
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Built-in OR-ing FET, support hot swap (hot plug)
l Active current sharing up to 6000W for one 19" rack shelf
l Built-in I² C interface, PMBus protocol
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Universal AC input/Full range (Withstand 300VAC surge input for 5 seconds)
Meanwell RCP-2000-24 Applications
l Industrial automation
l Redundant power system
l Electric vehicle charger system
l Constant current source system
l Distributed power architecture system
l Wireless/telecommunication solution
Meanwell RCP-2000-24 Mechanical Diagram
