RCP-2000-12
531.24

RCP-2000-12

$531.24

Meanwell 2000W single output rack mountable front end AC/DC power supply with 12V100A0-100A1200W150 mVp-p10.5-14V±2.0%±1.0%±01.0%

- +
Availability:In stock
SKU Meanwell RCP-2000-12
Brand Meanwell
Details

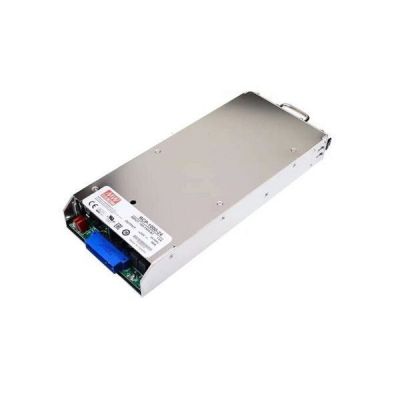

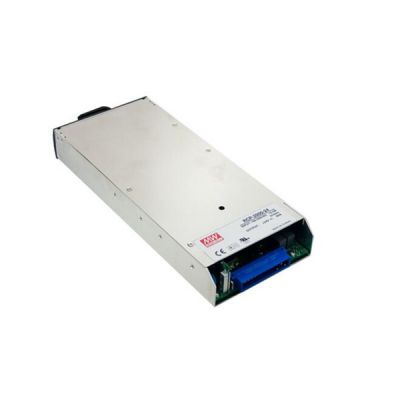

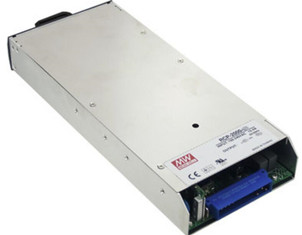

Meanwell RCP-2000-12 is a 2000W single output rack mountable front end AC/DC power supply with 12V100A0-100A1200W150 mVp-p10.5-14V. The product is designed 1U low profile and high power density up to 25W/inch³. Moreover, it operates for 90~ 264VAC input voltage and offered with the DC output mostly demanded from the industry. The model is cooled by the built-in DC fan with fan speed control. As the efficiency reaches high up to 92% and active PFC function, RCP-2000-12 is able to work for the temperature up to 70℃. Apart from them, the unit  provides the vast design flexibility by equipping various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 18000W via three 19" rack shelves, RKP-1U), remote control, auxiliary power, alarm signal, external control/monitor via the control model RKP-CMU1, etc. Maximum number monitored by master controller in communication shall be 9 power supplies. Due to its long life, high reliability and high efficiency, Meanwell RCP-2000-12 serves as a high performance power supply solution for various industrial applications such as industrial automation, redundant power system and electric vehicle charger system, and so on.

Meanwell RCP-2000-12 meanwell RCP-2000 price and specs ac dc rack mount single output new and original ycict

Meanwell RCP-2000-12 Encoding

RCP Series Name
2000 Output Wattage
12 Output Voltage

Meanwell RCP-2000-12 Specifications

Model RCP-2000-12
Output DC VOLTAGE 12V
RATED CURRENT 100A
CURRENT RANGE 0-100A
RATED POWER 1200W
RIPPLE & NOISE (max.)  150 mVp-p
VOLTAGE ADJ. RANGE(SVR) 10.5-14V
VOLTAGE TOLERANCE ±2.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±01.0%
SETUP, RISE TIME 1500ms, 60ms/230VAC at full load
HOLD UP TIME  16ms/230VAC at 75% load 10ms/230VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 320VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.98/230VAC at full load
EFFICIENCY (Typ.)  86.00%
AC CURRENT (Typ.) 13A/115VAC 7A/230VAC
INRUSH CURRENT (Typ. ) COLD START 50A
LEAKAGE CURR ENT <1.1mA / 230VAC
PROTECTION OVERLOAD 105 ~ 125% rated current
Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
OVER VOLTAGE 14.7 ~ 17.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION AUXILIARY POWER 5V @ 0.3A, 12V @ 0.8A
REMOTE SENSE Compensate voltage drop on the load wiring up to 0.5V
OUTPUT VOLTAGE PROGRAMMABLE Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage.
OUTPUT CURRENT PROGRAMMABLE(PC) Adjustment of constant current level is allowable to 20 ~ 100% of rated current
DC OK SIGNAL The isolated TTL signal out, Please refer to the Installation Manual
AC OK SIGNAL The isolated TTL signal out, Please refer to the Installation Manual
OVER TEMP WARNING Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal
FAN FAIL SIGNAL The isolated TTL signal out, Please refer to the Installation Manual
ENVIRONMENT WORKING TEMP -35 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Others MTBF 444.9K hrs min. Telcordia SR-332 (Bellcore) ; 37.4K hrs min. MIL-HDBK-217F (25
DIMENSION 295*127*41mm (L*W*H)
PACKING 2Kg; 6pcs/13Kg/1.04CUFT

Meanwell RCP-2000-12 Features

l  5 years warranty

l  Built-in active PFC function

l  High efficiency up to 92%

l  Forced air cooling by built-in DC fan

l  Output voltage programmable

l  Built-in OR-ing FET, support hot swap (hot plug)

l  Active current sharing up to 6000W for one 19" rack shelf

l  Built-in I² C interface, PMBus protocol

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Optional conformal coating

l  Universal AC input/Full range (Withstand 300VAC surge input for 5 seconds)

Meanwell RCP-2000 Series meanwell rcp-2000 price and specs rcp 2000w12v ycict

Meanwell RCP-2000-12 Applications

l  Industrial automation

l  Redundant power system

l  Electric vehicle charger system

l  Constant current source system

l  Distributed power architecture system

l  Wireless/telecommunication solution

Meanwell RCP-2000-12 Applications Meanwell RCP-2000-12 price and specs ac dc rack mount 2000w 12v 100a new and original ycict

Meanwell RCP-2000-12 Mechanical Diagram

Meanwell RCP-2000-12 Mechanical Diagram meanwell rcp-2000 price and specs ac dc rack mount 2000w12v100a new ycict

Meanwell RCP-2000 Series Mechanical Diagram meanwell RCP-2000 ac dc rack mount new and original ycict
