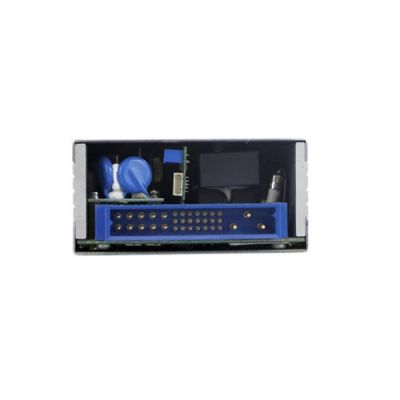

RCP-1600-12
481.26
Details

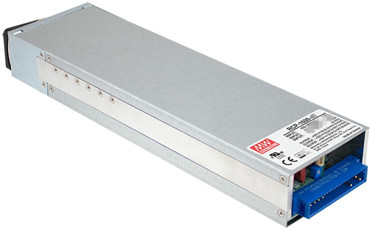

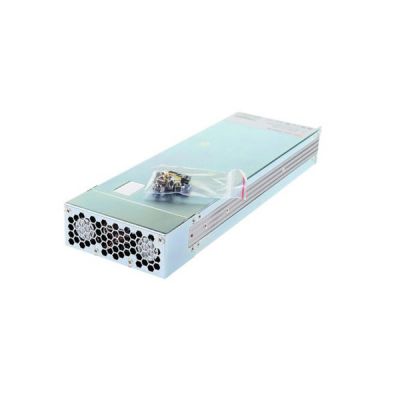

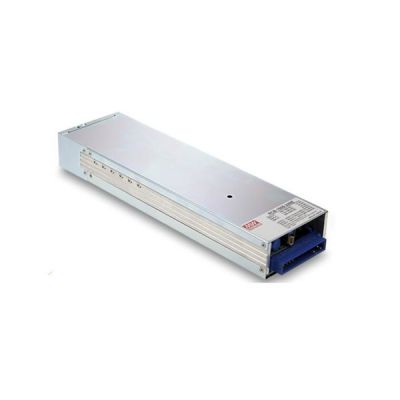

Meanwell RCP-1600-12 is a 1600 KW single output rack mountable front end AC/DC power supply with 12V125A0-125A1500W150 mVp-p11.5-15V. The product is designed 1U low profile and high power density up to 25W/inch³. It is able to operate for 90~264VAC input voltage and equipped with the DC output mostly demanded from the industry. The model is cooled by the built-in DC fan with fan speed control. Since the working efficiency reaches up to 93% and active PFC function, RCP-1600-12 works for the temperature up to 70℃, and provides vast design flexibility via the various built-in functions such as the PMBus and CANBus communication protocol, output programming, active current sharing (up to 24000W via three 1 9”rack shelves, RHP-1U), remote control, auxiliary power, alarm signal, etc. What’s more, maximum number that can be monitored by master controller in communication shall be 1 5 power supplies. Due to its longevity, high reliability and high efficiency, Meanwell RCP-1600-12 serves as a high performance power supply solution for various industrial applications such as industrial automation, redundant power system and Electric vehicle charger system, and so on.
Meanwell RCP-1600-12 Encoding
| RCP | Series Name |
| 1600 | Output Wattage |
| 12 | Output Voltage |
| **** | Communication Protocol |
| Blank | PMBus Protocol In stock |
| CAN | CANBus Protocol By Request |
Meanwell RCP-1600-12 Applications
| Model | RCP-1600-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 125A | |
| CURRENT RANGE | 0-125A | |
| RATED POWER | 1500W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE(SVR) | 11.5-15V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms / 230VAC at 75% load 10ms / 230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 88.50% | |
| AC CURRENT (Typ.) | 14A/115VAC 8A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A/230VAC | |
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% rated current |
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||
| OVER VOLTAGE | 15.75 ~ 18.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 40 ~ 125% of nominal output voltage(60~125% for 12V). | |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, AC-OK and DC-OK | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V) | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| Others | MTBF | 483.3K hrs min. Telcordia SR-332 (Bellcore) ; 39.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 300*85*41mm (L*W*H) | |
| PACKING | 1.87Kg; 6pcs/12.2Kg/1.16CUFT | |
Meanwell RCP-1600-12 Features
l Optional conformal coating
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 93%

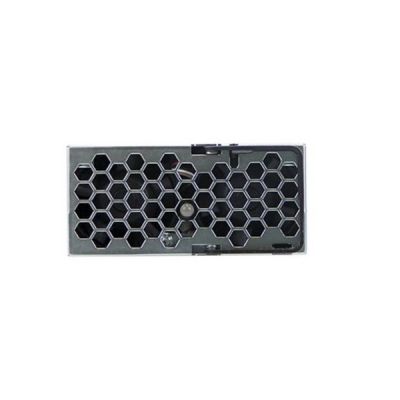

l Forced air cooling by built-in DC fan
l Output voltage and constant current level programmable
l Built-in OR-ing FET, support hot swap (hot plug)
l Active current sharing up to 8000W for one 19" rack shelf
l Built-in I² C interface PMBus protocol (Optional CANBus protocol)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Universal AC input/Full range (Withstand 300V AC surge input for 5 seconds)
Meanwell RCP-1600-12 Applications
l Industrial automation
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system
l Distributed power architecture system
Meanwell RCP-1600-12 Mechanical Diagram
