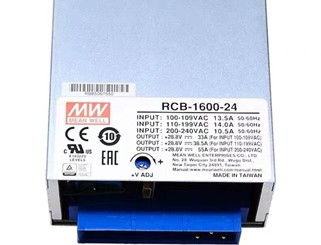

RCB-1600-24
399.69
Details

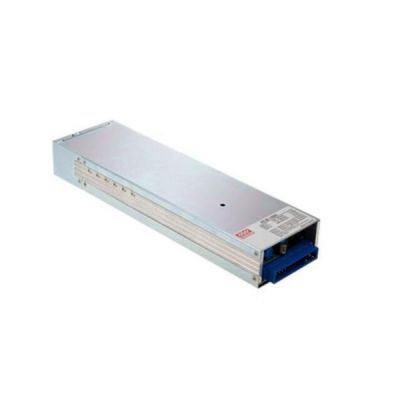

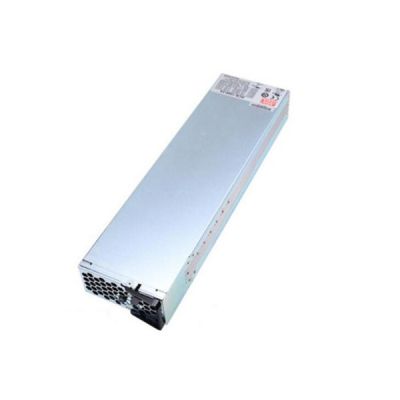

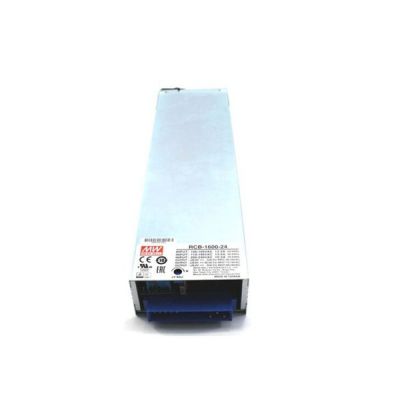

Meanwell RCB-1600-24 is a 1600W AC/DC single output Rack Mountable Front End Battery Charger with 28.8V27.6V55A1584W23.5-30V180~550Ah<45mA. The item is designed 1U low profile (41mm) and built-in PFC functions. Additionally, it has an intelligent charger with embedded programmable charging curves. The users could adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. At the same time, RCB-1600-24 supplies the various protection mechanisms like Battery under voltage, Battery no connection, Short circuit, Over voltage and Over temperature. Apart from them, temperature compensation function is provided to assure the normal and safe operations. The rack-mountable feature allows Meanwell RCB-1600-24 to perfectly suit the charging, backup or constant current source applications under the rack architecture or central management.
Meanwell RCB-1600-24 Encoding
| RCB | Series Name |
| 1600 | Output Wattage |
| 24 | Nominal Voltage |
| *** | Communication Protocol Option |
| Blank | PMBus Protocol In stock |
| CAN | CANBus Protocol By Request |
Meanwell RCB-1600-24 Specifications
| Model | RCB-1600-24 | |
| Output | BOOST CHARGE VOLTAGE(Vboost)(default) | 28.8V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 27.6V | |
| CONSTANT CURRENT(CC)(default) | 55A | |
| RATED POWER | 1584W | |
| VOLTAGE ADJ. RANGE(SVR) | By built-in potentiometer, SVR | |
| 23.5-30V | ||
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) Note | 180 ~ 550Ah | |
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <45mA | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT (Typ.) | 15A/115VAC 8.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A/230VAC | |
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |
| PRPTECTION | OVER VOLTAGE | 31.5 ~ 37.5V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes dow | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of output current is allowable to 20 ~ 100% of rated current | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open | |
| TEMPERATURE COMPENSATION | -3mV /℃/ cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells | |
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Installation Manual | |
| AC OK SIGNAL | The isolated TTL signal out. Please refer to the Installation Manual | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V) | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 | |
| Others | MTBF | 476.7K hrs min. Telcordia SR-332 (Bellcore) ; 38.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 300*85*41mm (L*W*H) | |
| PACKING | 1.87Kg; 6pcs/12.2Kg/1.16CUFT | |
Meanwell RCB-1600-24 Features
l Optional conformal coating
l 5 years warranty
l Output voltage and current programmable
l Built-in active PFC function
l Forced air cooling by built-in DC fan
l Built-in OR-ing FET, support hot swap (hot plug)
l Active current sharing up to 8000W for one 19" rack shelf
l Built-in default 3 stage charging curves and programmable curve
l Built-in I² C interface PMBus protocol (Optional CANBus protocol)
l Universal AC input/ Full range (Withstand 300V AC surge input for 5 seconds)
l Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature
l Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Meanwell RCB-1600-24 Applications
l Large scale DC UPS or emergency backup system
l Marine battery charger module
l Electrolysis system
l Electric scooter or vehicle charger station
l Wastewater treatment system
Meanwell RCB-1600-24 Mechanical Diagram
