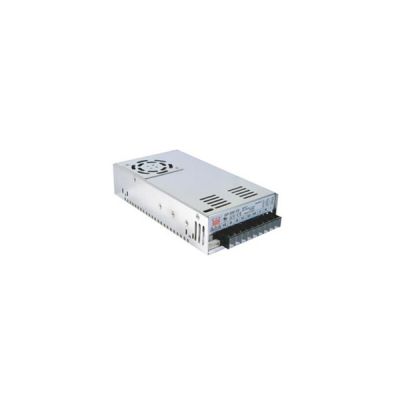

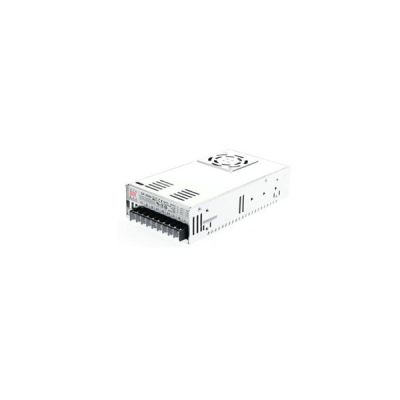

QP-200F
93.58
Details
Meanwell QP-200F is AC/DC Enclosed Switching Power Supply with Built-in active PFC function and Built-in remote sense function for CH1,2. This model is equipped with complete protections such as short circuit, Overload, Over voltage and Over temperature. Because of forced air cooling by built-in DC fan, and 100% full load burn-in test, QP-200F can work under low temperature with full load, and meanwhile delivering an extremely low no load power consumption. Moreover, the model is complied with the international safety regulations and meet the worldwide energy requirements. Considering its high efficiency, long life and high reliability, Meanwell QP-200F functions as a high price-to-performance power supply solution for various fields.
Meanwell QP-200F Specifications
| Model | QP-200F | ||||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH4 |
| DC VOLTAGE | 5V | 15V | 24V | -15V | |
| RATED CURRENT | 15A | 3A | 3A | 0.7A | |
| CURRENT RANGE | 3-20A | 0-5A | 0.4-5A | 0-1A | |
| RATED POWER | 202.5W | ||||
| PEAK CURRENT | 20A | 6A | 6A | 1A | |
| RIPPLE & NOISE (max.) mVp-p | 100 | 150 | 150 | 150 | |
| VOLTAGE ADJ. RANGE | CH1: 4.75-5.5V | CH2: 3.14.25-16.5V | |||
| VOLTAGE TOLERANCE | ±3% | ±3% | +10.-6% | ±6% | |
| LINE REGULATION | ±1% | ±1% | ±2% | ±1% | |
| LOAD REGUL ATION | ±2% | ±2% | ±6% | ±2% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | ||||
| HOLD UP TIME (Typ.) | 24ms at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 75% | ||||
| AC CURRENT (Typ.) | 3.5A/115VAC 2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 30A | ||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | CH2:17.25 ~ 20.25V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE(OPTION | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||
| Others | MTBF | 160.6K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 215*115*50mm (L*W*H) | ||||
| PACKING | 1.2Kg; 12pcs/15.4Kg/0.9CUFT | ||||
Meanwell QP-200F Feature
l 3 years warranty
l 100% full load burn-in test
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l Forced air cooling by built-in DC fan
l CH1,2 can be adjustable from -5~+1 0%
l With power good and fail signal output(Optional)
l Built-in remote sense function for CH1,2
l Fixed switching frequency at PFC:67KHz PWM:134KHz
l CH4 can set to positive after consult us before delivery(Optional)
l Protections: Short circuit/Overload/Over voltage/Over temperature

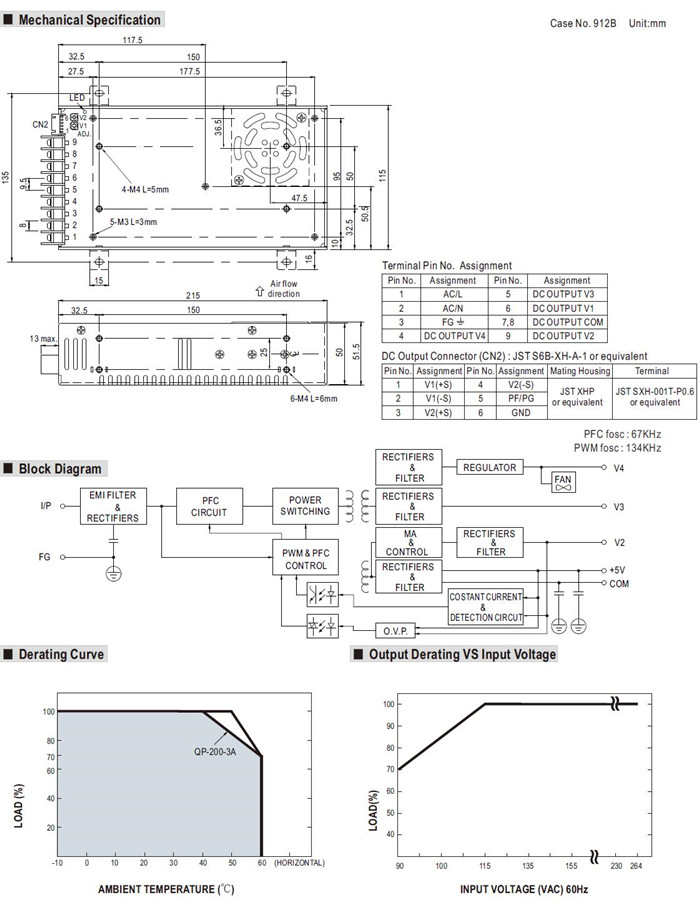

Meanwell QP-200F Mechanical Diagram
