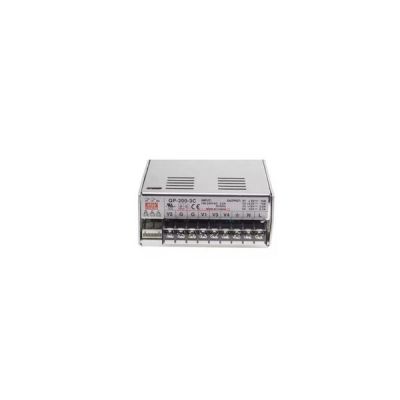

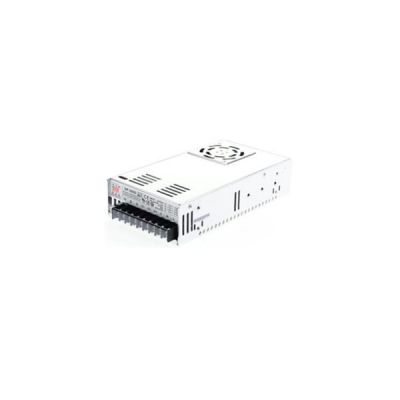

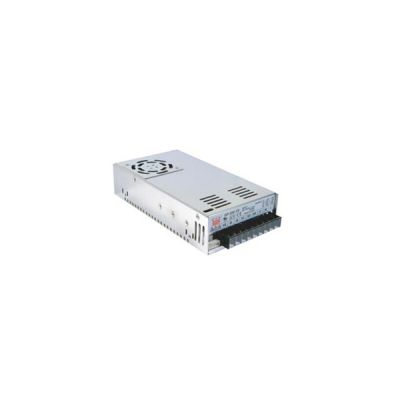

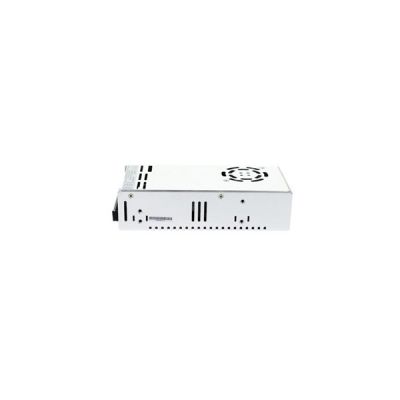

Meanwell 200W Quad Output with PFC Function

- +
Availability:In stock
SKU Meanwell QP-200-3E
Brand Meanwell
Details

Meanwell QP-200-3E is AC/DC Enclosed Switching Power Supply with Built-in active PFC function and Built-in remote sense function for CH1,2. The model offers complete protections like Short circuit, Overload, Over voltage and Over temperature. Due to the forced air cooling by built-in DC fan, and 100% full load burn-in test, QP-200-3E can operate under low temperature with full load and an extremely low no load power consumption. In addition, it is complied with the international safety regulations and meet the worldwide energy requirements. Thanks to its high efficiency, long life and high reliability, Meanwell QP-200-3E is a high price-to-performance power supply solution for various applications.

Meanwell QP-200-3E Specifications

Meanwell QP-200-3E Specifications

Model QP-200-3E
Output OUTPUT NUMBER CH1 CH2 CH3 CH4
DC VOLTAGE 5V 3.3V 24V -15V
RATED CURRENT 10A 15A 4A 0.7A
CURRENT RANGE 3-15A 0-20A 0.4-5A 0-1A
RATED POWER 206W
PEAK CURRENT 20A 20A 6A 1A
RIPPLE & NOISE (max.) mVp-p 100 100 150 150
VOLTAGE ADJ. RANGE CH1: 4.75-5.5V CH2: 3.14 ~ 3.63V
VOLTAGE TOLERANCE ±3% ±6% +10,-6% 6±%
LINE REGULATION ±1% ±1% ±2% ±1%
LOAD REGUL ATION ±2% ±2% ±6% ±2%
SETUP, RISE TIME 800ms, 50ms at full load
HOLD UP TIME (Typ.) 24ms at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 74%
AC CURRENT (Typ.) 3.5A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) COLD START 30A
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V
Shut down o/p voltage, recovers automatically after temperature goes down
OVER TEMPERATURE(OPTION Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION POWER GOOD / POWER FAIL 10ms/1ms
ENVIRONMENT WORKING TEMP. -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0~50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 160.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.2Kg; 12pcs/15.4Kg/0.9CUFT

Meanwell QP-200-3E Features

l  3 years warranty

l  100% full load burn-in test

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.95

l  Forced air cooling by built-in DC fan

l  CH1,2 can be adjustable from -5~+1 0%

l  Built-in remote sense function for CH1,2

l  With power good and fail signal output(Optional)

l  CH4 can set to positive after consult us before delivery(Optional)

l  Fixed switching frequency at PFC:67KHz PWM:134KHz

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell QP-200-3E Features

Meanwell QP-200-3E Mechanical Diagram

Meanwell QP-200-3E Mechanical Diagram
