QP-200-3C
93.58
Details

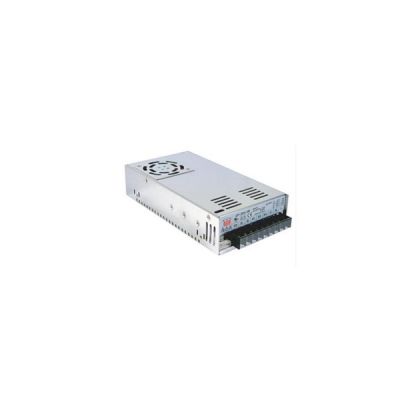

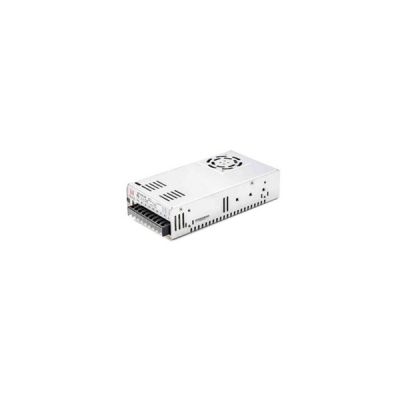

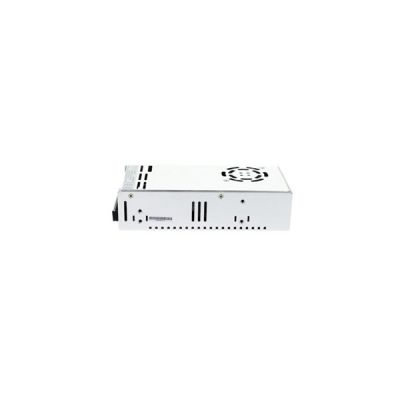

Meanwell QP-200-3C is AC/DC Enclosed Switching Power Supply with Built-in active PFC function and Built-in remote sense function for CH1,2. This model offers complete protections such as Short circuit, Overload, Over voltage and Over temperature. Due to forced air cooling by built-in DC fan, and 100% full load burn-in test, QP-200-3C could operate under low temperature with an extremely low no load power consumption. Additionally, QP-200-3C is complied with the international safety regulations and meet the worldwide energy requirements. Considering its high efficiency, long longevity and high reliability, Meanwell QP-200-3C acts as a high price-to-performance power supply solution for various applications.
Meanwell QP-200-3C Specifications
| Model | QP-200-3C | ||||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH4 |
| DC VOLTAGE | 5V | 3.3V | 15V | -15V | |
| RATED CURRENT | 15A | 15A | 5A | 0.7A | |
| CURRENT RANGE | 3-20A | 0-20A | 0.5-6A | 0-1A | |
| RATED POWER | 210W | ||||
| PEAK CURRENT | 20A | 20A | 7A | 1A | |
| RIPPLE & NOISE (max.) mVp-p | 100 | 100 | 150 | 150 | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | CH2: 3.14 ~ 3.63V | |||
| VOLTAGE TOLERANCE | ±3% | ±3% | +10,-6% | ±6% | |
| LINE REGULATION | ±1% | ±1% | ±2% | ±1% | |
| LOAD REGUL ATION | ±2% | ±2% | ±6% | ±2% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | ||||
| HOLD UP TIME (Typ.) | 24ms at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 72% | ||||
| AC CURRENT (Typ.) | 3.5A/115VAC 2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 30A | ||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1:5.75 ~ 6.75V | CH2:3.8 ~ 4.4V | |||
| Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| OVER TEMPERATURE(OPTION | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| FUNCTION | POWER GOOD / POWER FAIL | 10ms/1ms | |||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||
| Others | MTBF | 160.6K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 215*115*50mm (L*W*H) | ||||
| PACKING | 1.2Kg; 12pcs/15.4Kg/0.9CUFT | ||||
Meanwell QP-200-3C Features
l 3 years warranty
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l Forced air cooling by built-in DC fan
l CH1,2 can be adjustable from -5~+1 0%
l With power good and fail signal output(Optional)
l Built-in remote sense function for CH1,2
l 100% full load burn-in test
l CH4 can set to positive after consult us before delivery(Optional)
l Fixed switching frequency at PFC:67KHz PWM:134KHz
Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell QP-200-3C Mechanical Diagram
