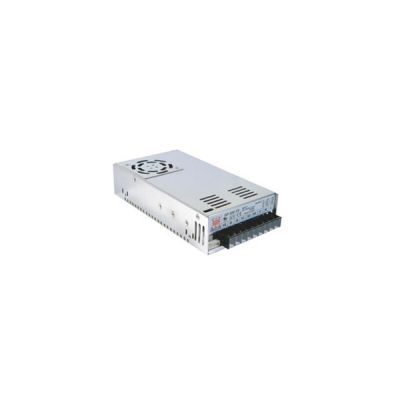

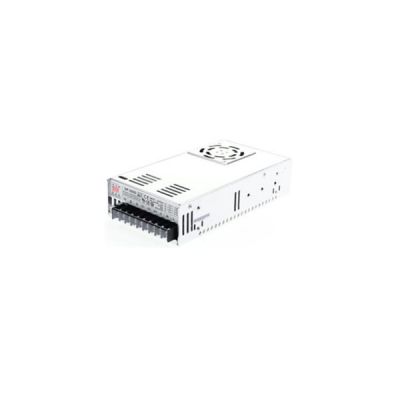

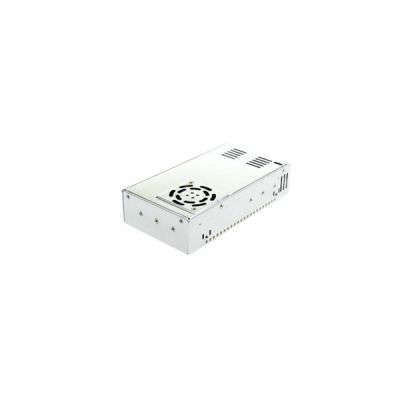

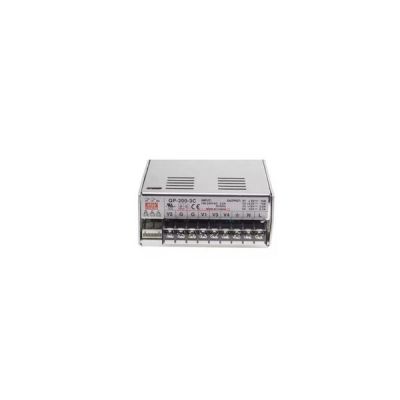

Meanwell QP-200-3 Series is AC/DC Enclosed Switching Power Supply with Built-in active PFC function and Built-in remote sense function for CH1,2.The entire series is equipped with complete protections such as Short circuit, Overload, Over voltage and Over temperature. Because of forced air cooling by built-in DC fan, and 100% full load burn-in test, QP-200-3 could operate under low temperature with full load, meanwhile, delivering an extremely low no load power consumption. Moreover, the series is complied with the international safety regulations and meet the worldwide energy requirements. In light of their high efficiency, long life and high reliability, Meanwell QP-200-3 Series serve as a high price-to-performance power supply solution for various applications.
Meanwell QP-200-3 Series Specifications
| Model | QP-200-3A | QP-200-3B | QP-200-3C | QP-200-3D | QP-200-3E | ||||||||||||||||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 |
| DC VOLTAGE | 5V | 3.3V | 12V | -5V | 5V | 3.3V | 12V | -12V | 5V | 3.3V | 15V | -15V | 5V | 3.3V | 24V | -12V | 5V | 3.3V | 24V | -15V | |
| RATED CURRENT | 15A | 15A | 6A | 0.7A | 15A | 15A | 6A | 0.7A | 15A | 15A | 5A | 0.7A | 10A | 15A | 4A | 0.7A | 10A | 15A | 4A | 0.7A | |
| CURRENT RANGE | 3-20A | 0-20A | 0.5-8A | 0-1A | 3-20A | 0-20A | 0.5-8A | 0-1A | 3-20A | 0-20A | 0.5-6A | 0-1A | 3-15A | 0-20A | 0.4-5A | 0-1A | 3-15A | 0-20A | 0.4-5A | 0-1A | |
| RATED POWER | 200W | 204.9W | 210W | 203.9W | 206W | ||||||||||||||||
| PEAK CURRENT | 20A | 20A | 8A | 1A | 20A | 20A | 8A | 1A | 20A | 20A | 7A | 1A | 20A | 20A | 6A | 1A | 20A | 20A | 6A | 1A | |
| RIPPLE & NOISE (max.) mVp-p | 100 | 100 | 150 | 150 | 100 | 100 | 150 | 150 | 100 | 100 | 150 | 150 | 100 | 100 | 150 | 150 | 100 | 100 | 150 | 150 | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | CH2: 3.14 ~ 3.63V | CH1: 4.75 ~ 5.5V | CH2: 3.14 ~ 3.63V | CH1: 4.75 ~ 5.5V | CH2: 3.14 ~ 3.63V | CH1: 4.75-5.5V | CH2: 3.14 ~ 3.63V | CH1: 4.75-5.5V | CH2: 3.14 ~ 3.63V | |||||||||||
| VOLTAGE TOLERANCE | ±3% | ±3% | +8,-10% | ±6% | ±3% | ±3% | ±8,-10% | ±6% | ±3% | ±3% | +10,-6% | ±6% | ±3% | ±6% | +10,-6% | ±6% | ±3% | ±6% | +10,-6% | 6±% | |
| LINE REGULATION | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±2% | ±1% | |
| LOAD REGUL ATION | ±2% | ±2% | ±6% | ±2% | ±2% | ±2% | ±6% | ±2% | ±2% | ±2% | ±6% | ±2% | ±2% | ±2% | ±6% | ±2% | ±2% | ±2% | ±6% | ±2% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | ||||||||||||||||||||
| HOLD UP TIME (Typ.) | 24ms at full load | ||||||||||||||||||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||||||||||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||||||||||||||||||
| EFFICIENCY (Typ.) | 72% | 72% | 72% | 74% | 74 | ||||||||||||||||
| AC CURRENT (Typ.) | 3.5A/115VAC 2A/230VAC | ||||||||||||||||||||
| INRUSH CURRENT (Typ.) | COLD START 30A | ||||||||||||||||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||||||||||||||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||||||||||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||||||||||
| OVER VOLTAGE | CH1:5.75 ~ 6.75V | CH2:3.8 ~ 4.4V | CH1:5.75 ~ 6.75V | CH2:3.8 ~ 4.4V | CH1:5.75 ~ 6.75V | CH2:3.8 ~ 4.4V | CH1:5.75 ~ 6.75V | CH2:3.8 ~ 4.4V | CH1:5.75 ~ 6.75V | CH2:3.8 ~ 4.4V | |||||||||||
| Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||||||||||||||
| OVER TEMPERATURE(OPTION | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||||||||||||||
| FUNCTION | POWER GOOD / POWER FAIL | 10ms/1ms | |||||||||||||||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | |||||||||||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||||||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||||||||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||||||||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||||||||||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||||||||||||||||||
| Others | MTBF | 160.6K hrs min. MIL-HDBK-217F (25℃) | |||||||||||||||||||
| DIMENSION | 215*115*50mm (L*W*H) | ||||||||||||||||||||
| PACKING | 1.2Kg; 12pcs/15.4Kg/0.9CUFT | ||||||||||||||||||||
Meanwell QP-200-3 Series Features
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Forced air cooling by built-in DC fan
l CH1,2 can be adjustable from -5~+1 0%
l With power good and fail signal output(Optional)
l Built-in remote sense function for CH1,2
l 1 00% full load burn-in test
l CH4 can set to positive after consult us before delivery(Optional)
l Fixed switching frequency at PFC:67KHz PWM:134KHz
l 3 years warranty

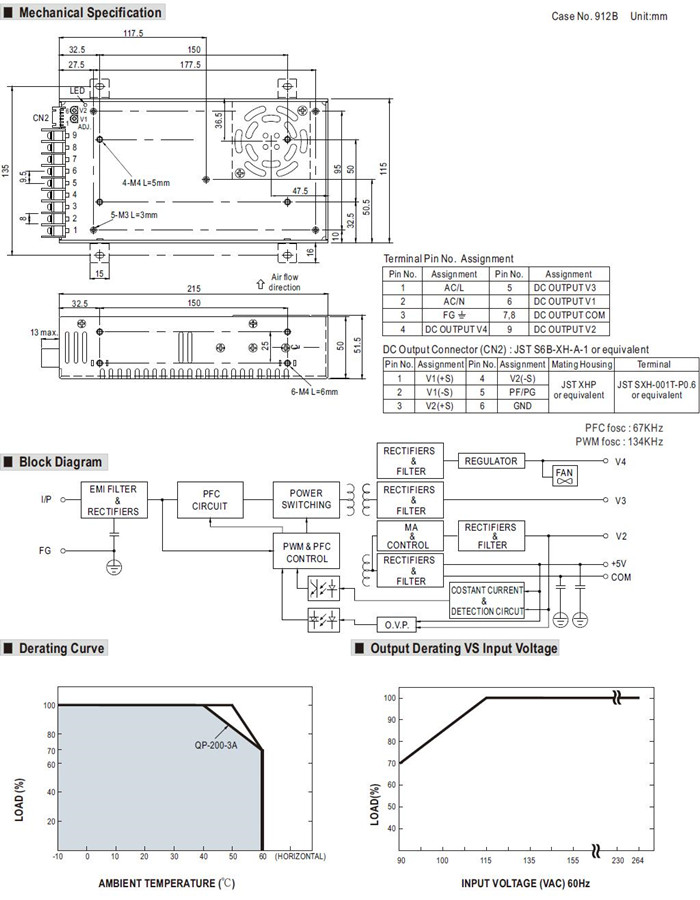

Meanwell QP-200-3 Series Mechanical Diagram
