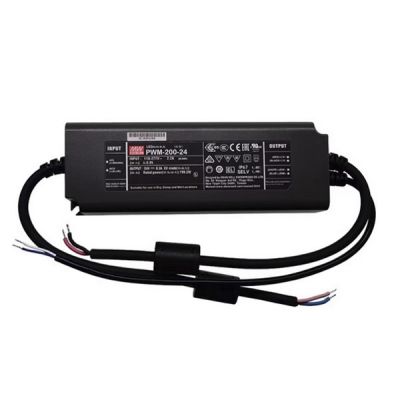

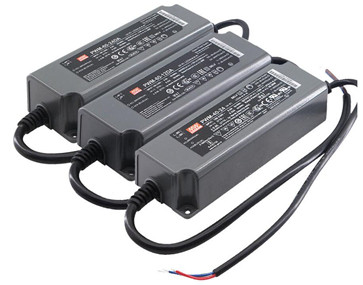

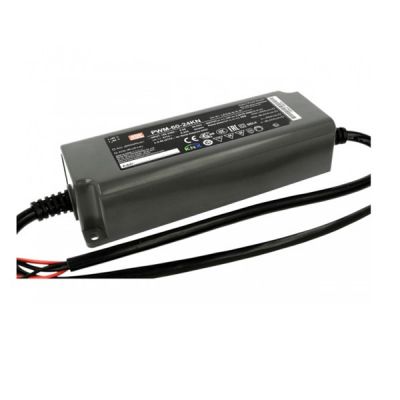

Meanwell PWM-200KN Series is a 200W AC/DC LED driver. The product features the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs. At the same time, the built-in KNX interface could avoid using the complicated KNX-DALI gateway and equipped with KNX Data Secure. KNX Data Secure offers protection against manipulation in building automation, and can be configured in the ETS project. Additionally, PWM-200KN operates from 100~305VAC, and offers models with output voltage between 12V&48V. Thanks to the efficiency reaching high up to 94%, with the fanless design, the entire series is able to work for -40℃~+85℃ case temperature under free air convection. Moreover, the minimal dimming level low to 0.01% is suitable for low light level applications e.g. cinema. The output frequency is changeable up to 4KHz, complaint IEEE 1789-2015, and meets the no risk requirement of EU Ecodesign stroboscopic visibility measure (SVM). Considering its longevity, high efficiency, and excellent quality, Meanwell PWM-200KN Series provides a great solution for health concern due to light flickering.
Meanwell PWM-200KN Series Encoding
| PWM | Series Name |
| 200 | Rated Wattage |
| 48 | Rated output voltage (12/24/36/48V) |
| □ | Function options |
| KN | KNX control technology |
Meanwell PWM-200KN Series Model Specifications
| Model | PWM-200-12□ | PWM-200-24□ | PWM-200-36□ | PWM-200-48□ | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | 48V |
| RATED CURRENT | 15A | 8.3A | 5.55A | 4.17A | |
| RATED POWER | 180W | 199.2W | 199.8W | 200.1W | |
| DIMMING RANGE | 0 ~ 100% | ||||
| PWM FREQUENCY (Typ.) | 200~4000Hz user changable via ETS | ||||
| SETUP, RISE TIME | 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC | ||||
| HOLD UP TIME (Typ.) | 10ms/230VAC or 115VAC | ||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||
| TOTAL HARMONIC DISTORTION | THD<20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) | ||||
| EFFICIENCY (Typ.) | 92.00% | 93.00% | 94.00% | 94.00% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=550μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | ||||
| STANDBY POWER CONSUMPTION | standby power consumption<0.5W when dimming off | ||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
| PROTECTION | OVERLOAD | 108 ~ 135% rated output power | |||
| Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | Shut down o/p voltage, re-power on to recover | ||||
| OVER VOLTAGE | 13-18V | 27-34V | 41-49V | 53-65V | |
| Shut down o/p voltage, re-power on to recover after fault condition is removed | |||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | Ul8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations |
||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | Ul8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations |
|||
| KNX STANDARDS | Certified protocol | ||||
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1;EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020 | ||||
| Others | MTBF | 1658.9 K hrs min. Telcordia SR-332 (Bellcore) ; 170 .0K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 195*68*39.5mm (L*W*H) | ||||
| PACKING | 1.03Kg; 12pcs/13.4Kg/0.71CUFT | ||||
Meanwell PWM-200KN Series Features
l Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015and EU Ecodesign SVM requirement
l Min. dimming level 0.01%
l Plastic housing with classⅡdesign
l Standby power consumption<0. 5W
l Support KNX Data Secure
l No need KNX-DALI gateway
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell PWM-200KN Series Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l LED architecture lighting
l Type "HL" for use in class I, division 2 hazardous (classified) location
l Cove lighting
l Industrial lighting

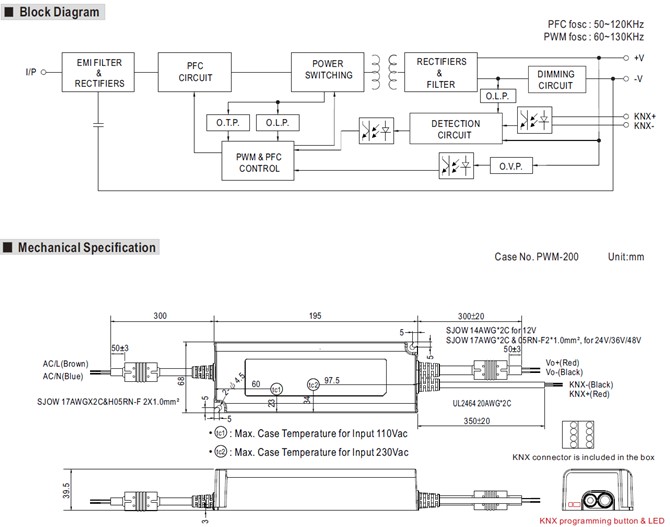

Meanwell PWM-200KN Series Mechanical Diagram
