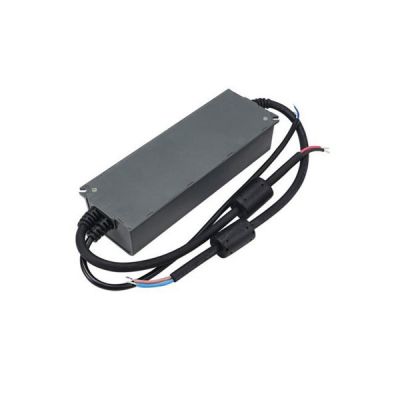

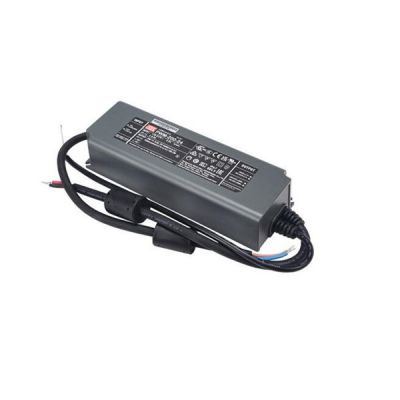

PWM-200-48 IoT
44.96
Details
Meanwell PWM-200-48 IoT is 200W AC/DC LED driver with 48V4.17A200.2W0~100%10ms/230VAC or 115VAC. It stands out with constant voltage mode with PWM style output, which could maintain color temperature and brightness homogeneity when driving all kinds of LED strips. At the same time, the model can operate from 100~ 305VAC with different rated voltage ranging between 12V and 48V. As the efficiency reaches high up to 94% fanless, PWM-200-48 could work for -20℃~+85℃ case temperature under free air convection. Additionally, the unit is rated with IP67 ingress protection level, which is suitable to use for dry, damp or wet locations. PWM-200-48 provides dimming level low to 0.4%, which is fit for low light level applications such as cinema. Furthermore, the output frequency is up to 4kHz,which complies with IEEE1 789-2015 requirement for no risk giving a great solution for health concern due to light flickering. As a result of its longevity, high efficiency and outstanding reliability, Meanwell PWM-200-48 IoT is an ideal solution for the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.
Meanwell PWM-200-48 IoT Encoding
| PWM | Series Name |
| 200 | Rated Wattage |
| 48 | Rated Output Voltage (12/24/48V) |
| □ | Function Options |
| Solution Type | Wireless Standard |
| Casambi BLE | Bluetooth Mesh low energy 2.4GHz protocol |
| Tuya TY1 | Bluetooth Mesh low energy 2. 4GHz protocol |
| Silvair SVA | Bluetooth Mesh low energy 2. 4GHz protocol |
| WiZ WZ1 | Bluetooth Mesh low energy+Wifi 2. 4GHz protocol |
Meanwell PWM-200-48 IoT Specifications
| Model | PWM-200-48□ | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 4.17A | |
| RATED POWER | 200.2W | |
| DIMMING RANGE | 0 ~ 100% | |
| PWM FREQUENCY (Typ.) | 4kHz for BLE, 2.5kHz for TY1, 1kHz for SVA, 200Hz for WZ1 | |
| SETUP, RISE TIME | 1000ms, 80ms/115VAC or 230VAC for BLE, WZ1 and TY1; 2000ms, 80ms/115VAC or 230VAC for SVA | |
| HOLD UP TIME (Typ.) | 10ms/230VAC or 115VAC | |
| INPUT | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
|
| TOTAL HARMONIC DISTORTION | THD<20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) |
|
| EFFICIENCY (Typ.) WZ1 Type | 93.50% | |
| EFFICIENCY (Typ.) Other Type | 94.00% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=550μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| STANDBY POWER CONSUMPTION | Standby power consumption<2.5W when dimming off | |
| PROTECTION | OVERLOAD | 108 ~ 135% rated output power |
| Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 53-65V | |
| Shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| FUNCTION | WIRELESS PROTOCOL | Bluetooth low energy 2.4GHz protocol |
| WIERLESS DISTANCE | Up to 20m | |
| DIMMING | Please refer to “DIMMING OPERATION” section | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, IP67(except SVA-type), EAC TP TC 004,GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1, BIS |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020 |
|
| Others | MTBF | 2413.4 K hrs min. Telcordia SR-332 (Bellcore) ; 211.1 K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 195*68*39.5mm (L*W*H) | |
| PACKING | 1.03Kg; 12pcs/13.4Kg/0.71CUFT | |
Meanwell PWM-200-48 IoT Features
l Built-in active PFC function
l Bluetooth wireless LED driver
l Plastic housing with class II design
l Typical lifetime >50000 hrs and 5 years warranty
l Fully encapsulated with IP67 level (except SVA-type)
l Constant voltage PWM style output with frequency up to 4kHz compliant IEEE1789-2015
Meanwell PWM-200-48 IoT Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l LED architecture lighting
l Cove lighting
l Type "HL" for use in class l, division 2 hazardous (classified) location
Meanwell PWM-200-48 IoT Mechanical Diagram
