PWM-200-36
31.87
Details

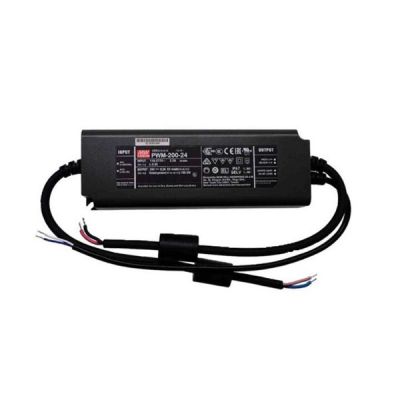

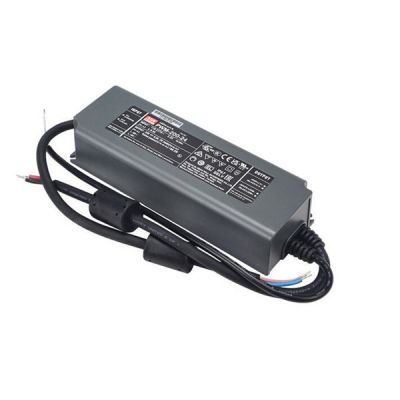

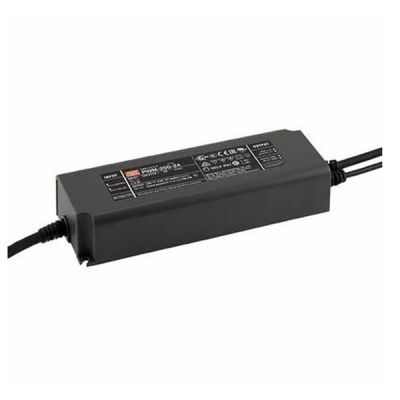

Meanwell PWM-200-36 is 200W AC/DC LED driver with 36V5.55A199.8W4kHz for Blank type; 2.5kHz for DA2 type. The mdoel accepts constant voltage mode with PWM style output, which can maintain color temperature and brightness homogeneity when driving all kinds of LED strips.Meanwhile, PWM-200-36 works from 100~ 305V AC with rated voltage 36V. Since the efficiency reaches high up to 94% based on fanless design, and low no-load power consumption below 0.5W, the item is able to operate for -40℃~+85℃ case temperature under free air convection. By using full glue filling technology, LED Drivermeets IP67 waterproof, which is suitable for industrial or outdoor humid environments. Furthermore, the unit is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips. In light of its longevity, high efficiency, and excellent quality, Meanwell PWM-200-36 is ideal for flexible installation in applications such as LED strip lighting, indoor LED lighting, LED decorative lighting, and LED architectural lighting.
Meanwell PWM-200-36 Encoding
| PWM | Series Name |
| 200 | Rated Wattage |
| 36 | Rated Output Voltage (12/24/36/48V) |
| □ | Function Options |
| Blank IP67 | 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance ) In stock |
| DA2 IP67 | Push Dimming or DALI-2 control technology In stock |
Meanwell PWM-200-36 Specifications
| Model | PWM-200-36□ | |
| OUTPUT | DC VOLTAGE | 36V |
| RATED CURRENT | 5.55A | |
| RATED POWER | 199.8W | |
| DIMMING RANGE | 0 ~ 100% | |
| PWM FREQUENCY (Typ.) | 4kHz for Blank type; 2.5kHz for DA2 type | |
| SETUP, RISE TIME | 500ms, 80ms/230VAC or 115VAC | |
| HOLD UP TIME (Typ.) | 10ms/230VAC or 115VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |
| TOTAL HARMONIC DISTORTION | THD<20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=55μ0 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | |
| STANDBY POWER CONSUMPTION | standby power consumption<0.5W when dimming off | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVERLOAD | 108 ~ 135% rated output power |
| Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Shut down o/p voltage, re-power on to recover (except for DA2-type) Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type) | |
| OVER VOLTAGE | 41-49V | |
| Shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations |
| DALI STANDARDS | Comply with IEC62386-101, 102, 207, 251 for DA2 Type only, Device type 6(DT6) | |
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC; I/P-DA: 1.5KVAC; O/P-DA:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 2235.6K hrs min. Telcordia SR-332 (Bellcore) ;178.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 195*68*39.5mm (L*W*H) | |
| PACKING | 1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT | |
Meanwell PWM-200-36 Features
l Standby power consumption <0.5W
l Fully encapsulated with IP67 level
l Plastic housing with class II and PFC design
l Minimum dimming level 0.2% for DA2 type
l Typical lifetime > 50000 hrs and 5 years warranty
l Function options:3 in 1 dimming (dim-to-off and isolated Design)/DALl-2
l Emergency lighting application is available according to lEC61347-2-13
l Constant voltage PWM style output with frequency up to 4kHz compliant IEEE1789-2015
Meanwell PWM-200-36 Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l LED architecture lighting
l Cove lighting
l Industrial lighting
l Type "HL" for use in class l, division 2 hazardous (classified) location
Meanwell PWM-200-36 Mechanical Diagram
