PWM-120 IoT
38.15
Details

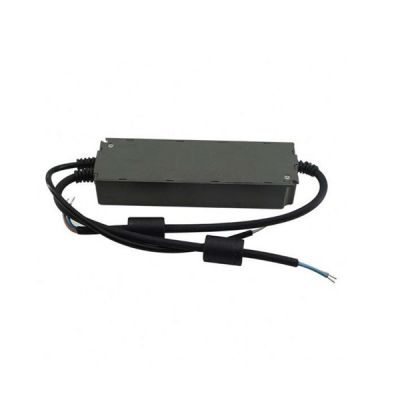

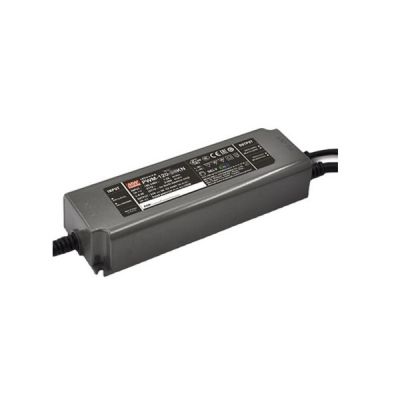

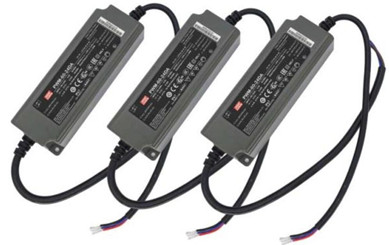

Meanwell PWM-120 IoT Series is blue-tooth ready 120W AC/DC LED driver highlighting constant voltage mode with PWM style output, which could maintain brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs. At the same time, the entire series operates from 90~ 305 VAC with different rated voltage ranging between 12V and 48V. Since the efficiency reaches high up to 90% with fanless design, PWM-120 is able to work for -20℃ ~+90℃ case temperature under free air convection. Additionally, the product can offer minimal dimming level low to 0.4%, which is suitable for low light level applications such as cinema. The output frequency is up to 4KHz, which confirms to IEEE1789-2015 requirement for no risk, providing a great solution for health concern due to light flickering. Considering its longevity, high efficiency and outstanding reliability, Meanwell PWM-120 IoT Series is an ideal solution for the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.
Meanwell PWM-120 IoT Series Encoding
| PWM | Series Name |
| 120 | Rated Wattage |
| 24 | Rated Output Voltage (12/24/48V) |
| BLE | Built-in wireless module brand and solution |
| Brand & Solution | Wireless Standard |
| Casambi BLE | Bluetooth low energy mesh 2.4GHz protocol By Request |
| Tuya TY1 | Bluetooth low energy mesh 2.4GHz protocol By Request |
| Silvair SVA | Bluetooth low energy mesh 2.4GHz protocol By Request |
Meanwell PWM-120 IoT Series Model Specifications
| Model | PWM-120-12 | PWM-120-24 | PWM-120-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | |
| RATED POWER | 120W | 120W | 120W | |
| PWM FREQUENCY (Typ.) | up to 4kHz | |||
| SETUP, RISE TIME | 1000ms,80ms/115VAC or 230VAC for BLE and TY1; 2000ms,80ms/115VAC or 230VAC for SVA | |||
| HOLD UP TIME (Typ.) | 16ms/230VAC or 115VAC | |||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) |
|||
| EFFICIENCY (Typ.) | 87.50% | 90.00% | 90.00% | |
| AC CURRENT | 1.3A / 115VAC 0.65A / 230VAC 0.55A / 277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=520μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.25mA / 277VAC | |||
| NO LOAD POWER CONSUMPTION | <1W | |||
| PROTECTION | OVERLOAD | 108 ~ 130% rated output power | ||
| Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 15-17V | 28-34V | 54-60V | |
| Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP | Tcase=+90℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃,except 0 ~ 40℃ for 12V) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| FUNCTION | WIRELESS PROTOCOL | Bluetooth low energy 2.4GHz protocol | ||
| DIMMING RANGE | 0 ~ 100% Minimum dimming level:1%,dim to off | |||
| WIRELESS DISTANCE | Up to 20m | |||
| DIMMING | Please refer to “DIMMING OPERATION” section | |||
| SAFETY&EMC | SAFETY STANDARDS | UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, IP67,BIS IS15885( for PWM-120-12,24 only), EAC TP TC 004,GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1 |
||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 | |||
| Others | MTBF | 2525.2K hrs min. Telcordia SR-332 (Bellcore) ; 231.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 191*63*37.5mm (L*W*H) | |||
| PACKING | 0.97Kg; 15pcs/15.6Kg/0.87CUFT | |||
Meanwell PWM-120 IoT Series Features
l Constant voltage PWM style output with frequency up to 4KHz compliant IEEE1 789-2015 no risk
l Bluetooth Mesh Dimming Function
l Plastic housing with class ll design
l Built-in active PFC function
l Typical lifetime>50000 hours
l 5 years warranty
Meanwell PWM-120 IoT Series Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l LED architecture lighting
l Intelligent lighting control
Meanwell PWM-120 IoT Series Mechanical Diagram
