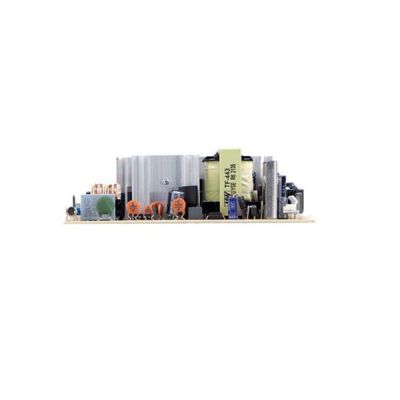

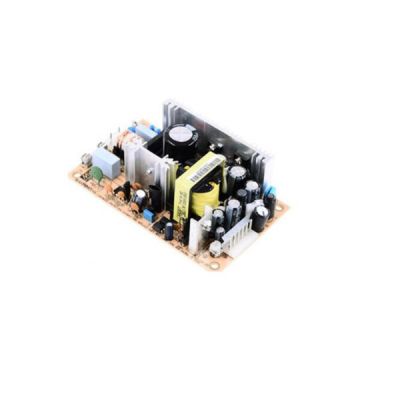

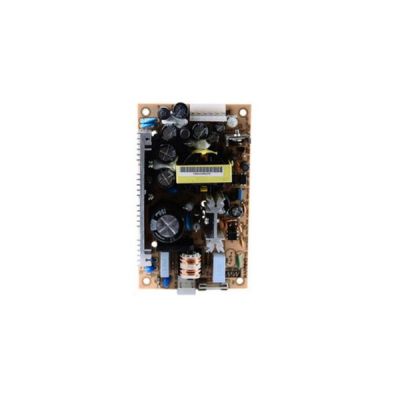

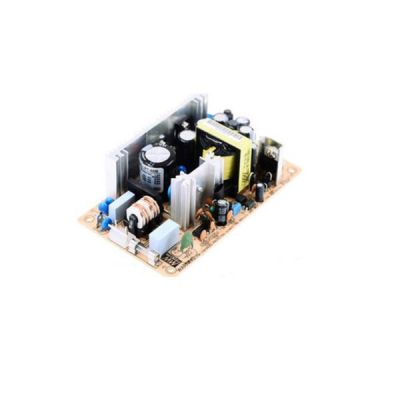

PT-65C
15.46
Details
Meanwell PT-65C is 65W Triple Output Switching Power Supply with CH1CH2CH35V15V-15V5.5A2A0.5A0.4-7A0.2-2.6A0-0.7A65W50mVp-p120mVp-p100mVp-pCH1:4.75~5.5V. The unit outstands with Universal AC input/Full range and Fixed switching frequency at 65KHz. At the same time, it is equipped with universal input voltage range of 90~264V AC. What’s more, the high working efficiency could reach up to 79% and operate from -10 ℃through 60 ℃ under air convection without fan. Apart from them, PT-65C provides the various protections types such as Short circuit, Overload and Over voltage. Furthermore, the product undergoes 100% full load burn-in test and the extremely low leakage current below 0.5mA, this allows to satisfy the international safety regulations such as UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004. In view of its high efficiency, good quality and long life, Meanwell PT-65C is a high price-to-performance power supply solution for various industrial applications in critical working conditions.
Meanwell PT-65C Specifications
| Model | PT-65C | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 15V | -15V | |
| RATED CURRENT | 5.5A | 2A | 0.5A | |
| CURRENT RANGE | 0.4-7A | 0.2-2.6A | 0-0.7A | |
| RATED POWER | 65W | |||
| OUTPUT POWER (max.) | Rated output power for convection; 72W with 18CFM min. Forced air | |||
| RIPPLE & NOISE (max.) | 50mVp-p | 120mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | |||
| VOLTAGE TOL ERANCE | ±4.0% | ±7.0% | ±5.0% | |
| LINE REGULATION | ±1.0% | ±2.0% | ±1.0% | |
| LOAD REGUL .ATION | ±3.0% | ±4.0% | ±1.0% | |
| SETUP, RISE TIME | 800ms, 20ms at full load | |||
| HOLD UP TIME (Typ.) | 60ms at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | ||
| FREQUENCY RANGE | 47 ~ 440Hz | |||
| EFFICIENCY (Typ.) | 77.00% | |||
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |||
| LEAKAGE CURRENT | <0.75mA | |||
| PROTECTION | OVERL OAD | 73 ~ 95W rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. | ||||
| OVER VOLTAGE | 5.75 ~ 6.75VDC on CH1 | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) on +5V output | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 277.2K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 127*76*42mm (L*W*H) | |||
| PACKING | 0.25Kg; 54pcs/15.9Kg/1.28CUFT | |||
Meanwell PT-65C Features
l 2 years warranty
l Universal AC input/Full range
l Low leakage current<0.5mA
l Cooling by free air convection
l 100% full load burn-in test
l Fixed switching frequency at 65KHz
l Protections: Short circuit/Overload/Over voltage
Meanwell PT-65C Mechanical Diagram
