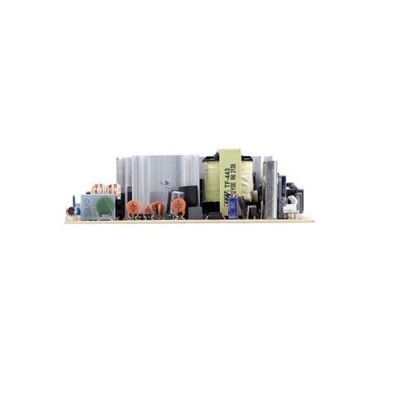

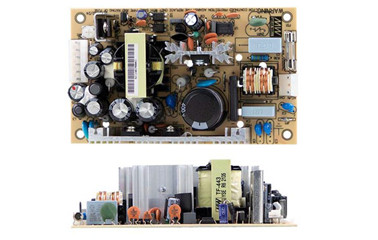

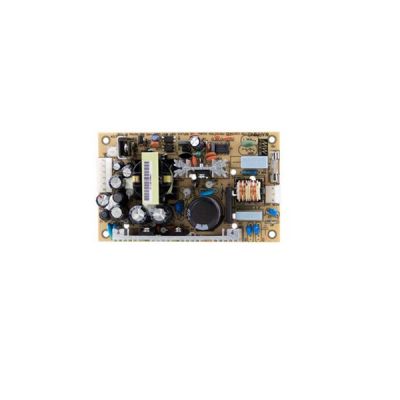

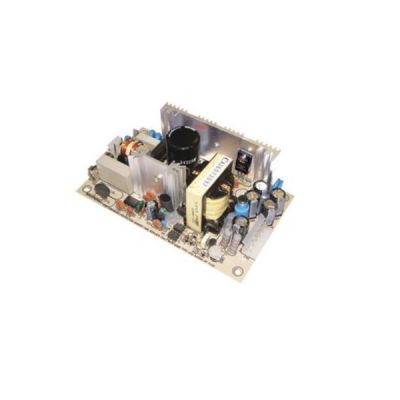

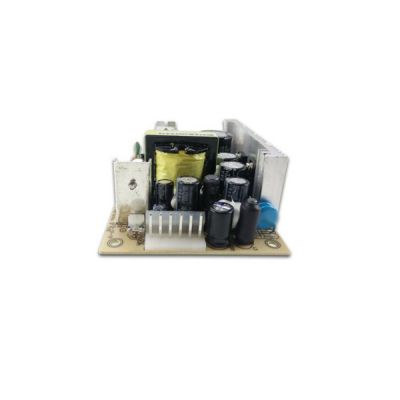

Meanwell PT-65 Series is 65W Triple Output Switching Power Supply. The entire series outstands with Universal AC input/Full range and Fixed switching frequency at 65KHz. At the same time, it allows a universal input voltage range of 90~264V AC. Apart from them, the working efficiency could reach up to 79% and operate from -10 ℃through 60 ℃ under free air convection. In addition, PT-65 provides the various protections such as Short circuit, Overload and Over voltage. Besides them, the series passes 100% full load burn-in test and the extremely low leakage current less than 0.5mA, this permits to satisfy the international safety regulations such as UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004. Considering its high efficiency, good quality and long life, Meanwell PT-65 Series serves as a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PT-65 Series Model Specifications
| Model | PT-65A | PT-65B | PT-65C | PT-65D | |||||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V | |
| RATED CURRENT | 5.5A | 2.5A | 0.5A | 5.5A | 2.5A | 0.5A | 5.5A | 2A | 0.5A | 4A | 2A | 1A | |
| CURRENT RANGE | 0.4-7A | 0.2-3.2A | 0-0.7A | 0.4-7A | 0.2-3.2A | 0-0.7A | 0.4-7A | 0.2-2.6A | 0-0.7A | 0.5-5A | 0.2-4A | 0.2-1.3A | |
| RATED POWER | 60W | 63.5W | 65W | 68W | |||||||||
| OUTPUT POWER (max.) | Rated output power for convection; 72W with 18CFM min. Forced air | ||||||||||||
| RIPPLE & NOISE (max.) | 50mVp-p | 120mVp-p | 50mVp-p | 50mVp-p | 120mVp-p | 100mVp-p | 50mVp-p | 120mVp-p | 100mVp-p | 50mVp-p | 100mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | ||||||||||||
| VOLTAGE TOL ERANCE | ±4.0% | ±7.0% | ±5.0% | ±4.0% | ±7.0% | ±5.0% | ±4.0% | ±7.0% | ±5.0% | ±4.0% | ±6.0% | ±6.0% | |
| LINE REGULATION | ±1.0% | ±2.0% | ±1.0% | ±1.0% | ±2.0% | ±1.0% | ±1.0% | ±2.0% | ±1.0% | ±1.0% | ±2.0% | ±3.0% | |
| LOAD REGUL .ATION | ±3.0% | ±4.0% | ±1.0% | ±3.0% | ±4.0% | ±1.0% | ±3.0% | ±4.0% | ±1.0% | ±2.0% | ±5.0% | ±5.0% | |
| SETUP, RISE TIME | 800ms, 20ms at full load | ||||||||||||
| HOLD UP TIME (Typ.) | 60ms at full load | ||||||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |||||||||||
| FREQUENCY RANGE | 47 ~ 440Hz | ||||||||||||
| EFFICIENCY (Typ.) | 76.00% | 77.00% | 77.00% | 79.00% | |||||||||
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC | ||||||||||||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||||||||||
| LEAKAGE CURRENT | <0.75mA | ||||||||||||
| PROTECTION | OVERL OAD | 73 ~ 95W rated output power | 74.8 ~ 98.6W rated output power | ||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. | |||||||||||||
| OVER VOLTAGE | 5.75 ~ 6.75VDC on CH1 | ||||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||||||||||
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) on +5V output | ||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min | ||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||||||||||
| OTHERS | MTBF | 277.2K hrs min. MIL-HDBK-217F (25℃) | |||||||||||
| DIMENSION | 127*76*42mm (L*W*H) | ||||||||||||
| PACKING | 0.25Kg; 54pcs/15.9Kg/1.28CUFT | ||||||||||||
Meanwell PT-65 Series Features
l Universal AC input/Full range
l Low leakage current<0.5mA
l Protections: Short circuit/Overload/Over voltage
l Cooling byfree air convection
l 100% full load burn-in test
l Fixed switching frequency at 65KHz
l 2 years warranty

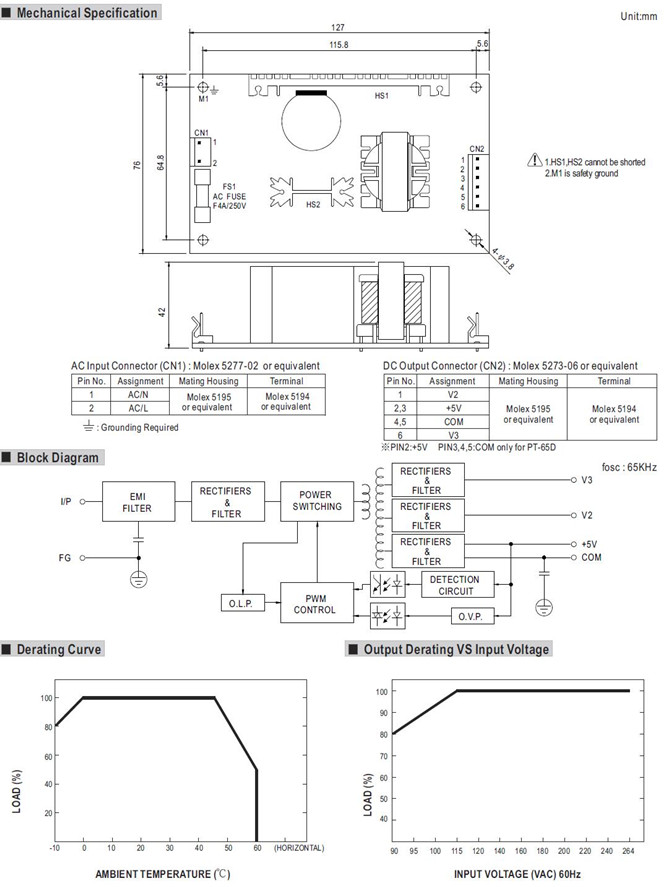

Meanwell PT-65 Series Mechanical Diagram
