PSP-600-48
128.29
Details

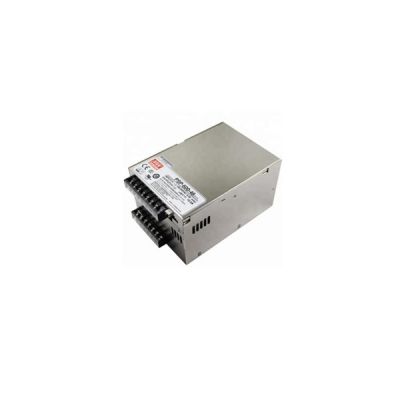

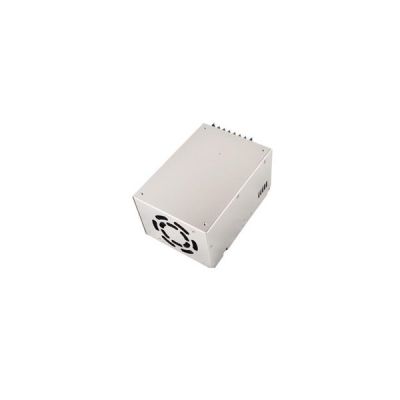

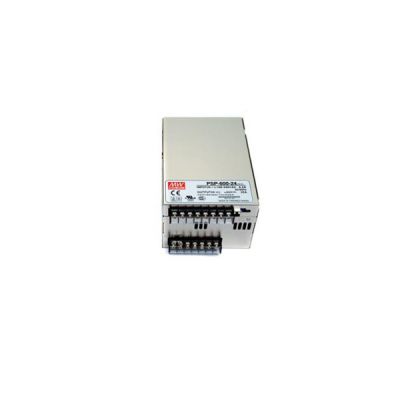

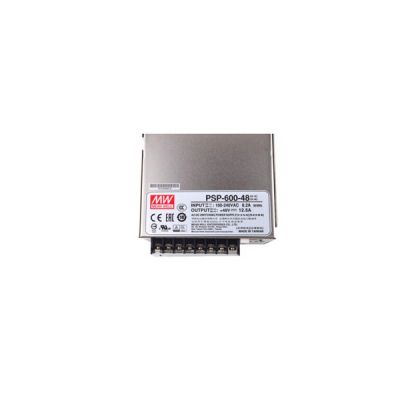

Meanwell PSP-600-48 is 600W high-power switching power supply with PFC and parallel function. With adopting lead-free manufacturing process, it complies with environmental protection RoHS requirements. Built-in active power factor correction circuit (PFC) is beneficial to improve energy efficiency and reduce harmonic interference. As per global full range voltage input, the model has parallel output function as much as up to 2400W (3+1), and also complete function such as short-circuit protection/overload protection/overvoltage protection/overheat protection, and furthermore, this power supply is certified: UL/TUV/CB/CE and 100% full load aging test. Besides, PSP-600-48 has built-in remote detection function (with line loss compensation function) and remote switch control, and Switching frequency: PFC: 88KHz, PWM: 100KHz and DC OK signal output.Considering its high efficiency, long life, and high reliability, Meanwell PSP-600-48 functions as a high-performance power supply solution for various industrial applications.
Meanwell PSP-600-48 Specifications
| Model | PSP-600-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 12.5A | |
| CURRENT RANGE | 0-12.5A | |
| RATED POWER | 600W | |
| RIPPLE & NOISE (max.) mVp-p | 300 | |
| VOLTAGE ADJ. RANGE | 41-56V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms at full load | |
| HOLD UP TIME | 20ms at full load | |
| Input | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 6.8A/115VAC 3.4A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <1.3mA/240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| FUNCTION | REMOTE CONTROL | RC+/RC-: Short = power on ; Open = power off |
| POK SIGNAL | PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS13438, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 116.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 170*120*93mm (L*W*H) | |
| PACKING | 1.9Kg; 8pcs/15.5Kg/1.00CUFT | |
Meanwell PSP-600-48 Features
l 3 years warranty
l Universal AC input/ Full range
l Built-in active PFC function
l Forced air cooling by built-in DC fan
l With DC OK Signal output
l Built-in remote ON-OFF control
l Built-in remote sense function
l Current sharing up to 2400W(3+1)
l Operating altitude up to 3000 meters
l Fixed switching frequency at PFC:88KHz PWM:100KHz
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell PSP-600-48 Mechanical Diagram
