PSD-30-5
11.03
Details
Meanwell PSD-30-5 Series Model Specifications
| ORDER NO. | PSD-30A-5 | PSD-30B-5 | PSD-30C-5 | |
| OUTPUT | DC VOLTAGE | 5V | ||
| RATED CURRENT | 5A | |||
| CURRENT RANGE | 0-5A | |||
| RATED POWER | 25W | |||
| RIPPLE & NOISE (max.) | 100mVp-p | |||
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5VDC | |||
| VOLTAGE TOLERANCE | ±2.0% | |||
| LINE REGULATION | ±1.0% | |||
| LOAD REGULATION | ±1.0% | |||
| SETUP TIME | 2s, 50ms, ------ at full load | |||
| INPUT | VOLTAGE RANGE | A:9 ~ 18VDC B:18 ~ 36VDC C:36 ~ 72VDC | ||
| EFFICIENCY (Typ.) | 77.00% | 79.00% | 80.00% | |
| DC CURRENT (Typ.) | 4.5A/12V | |||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 6-7.5V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved, IEC 62368-1 CB approved by Dekra, Design refer to BS EN/EN62368-1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| EMI CONDUCTION&RADIATION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/ENV50204, BS EN/EN 55035, light industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 3871.7K hrs min. Telcordia SR-332 (Bellcore) ; 639.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 101.6*50.8*30mm (L*W*H) | |||
| PACKING | 0.15kg；72pcs/10.8kg/0.82CUFT | |||
Meanwell PSD-30-5 Series Features
l 2:1 wide input range
l Protections: Short circuit/Overload/Over voltage/Reverse polarity
l 1500VAC I/O isolation
l Cooling by free air convection
l Built-in EMI filter, low ripplenoise
l 100% full load burn-in test
l Low cost
l High reliability
l 2 year warranty

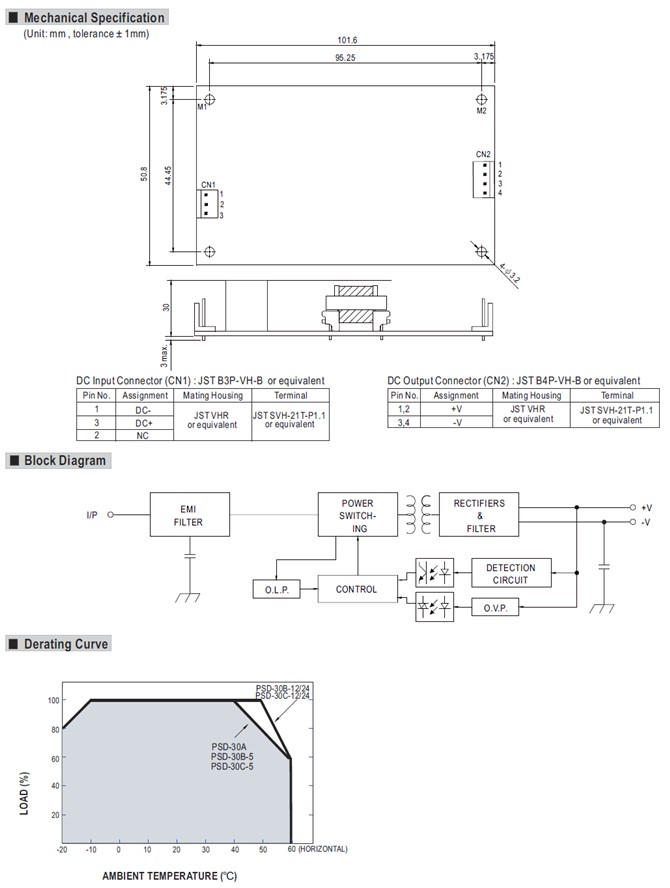

Meanwell PSD-30-5 Series Mechanical Diagram
