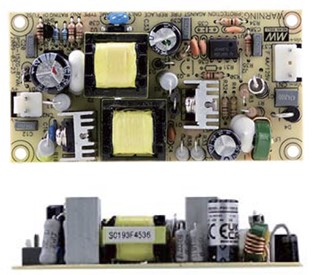

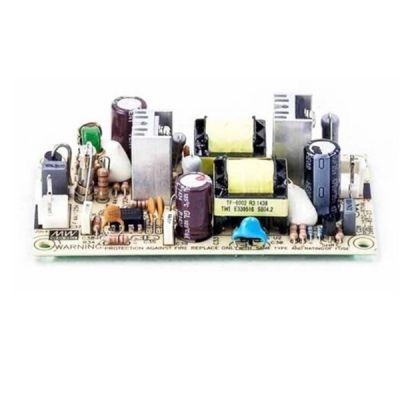

PSD-15-05
7.51
Details
Meanwell PSD-15-05 Series Model Specifications
| ORDER NO. | PSD-15A-05 | PSD-15B-05 | PSD-15C-05 | |
| OUTPUT | DC VOLTAGE | 5V | ||
| RATED CURRENT | 3A | |||
| CURRENT RANGE | 0-3A | |||
| RATED POWER | 15W | |||
| RIPPLE & NOISE (max.) | 50mVp-p | |||
| VOLTAGE TOLERANCE | ±2.5% | |||
| LINE REGULATION | ±1.0% | |||
| LOAD REGULATION | ±1.0% | |||
| SETUP TIME | 2.5s, 25ms, ----/12VDC/24VDC/48VDC at full load | |||
| INPUT | VOLTAGE RANGE | A: 9.2 ~18VDC (12VDC) B:18 ~ 36VDC (24VDC) C:36~72VDC(48VDC) | ||
| EFFICIENCY (Typ.) | 74.00% | 78.00% | 78.00% | |
| DC CURRENT (Typ.) | 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC | |||
| PROTECTION | OVERLOAD | 105% ~150% rated output power | ||
| Protection type : hiccup mode ,recovery automatically after fault condition is removed | ||||
| OVER VOLTAGE | 5.75 ~ 6.75V | |||
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:2.0KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC / 25℃/ 70% RH | |||
| EMI CONDUCTION&RADIATION | Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035, BS EN/EN61000-6-1,light industry level,EAC TP TC 020 | |||
| OTHERS | MTBF | 7598.3K hrs min. Telcordia SR-332 (Bellcore) ; 740.4K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 94*49*25mm (L*W*H) | |||
| PACKING | 81g;120pcs/10.72Kg/0.9CUFT | |||
Meanwell PSD-15-05 Series Features
l Protections:Short circuit/Over load/Over voltage/Polarity
l Cooling by free air convection
l 100% full load burn-in test
l Low cost
l High reliability
l 2 year warranty
Meanwell PSD-15-05 Series Mechanical Diagram
