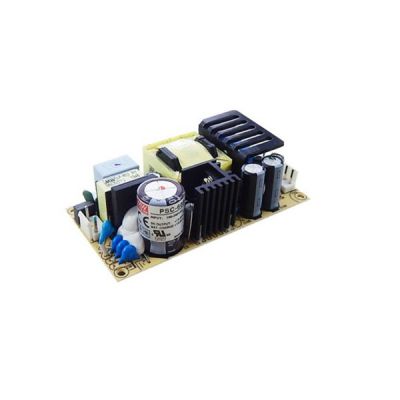

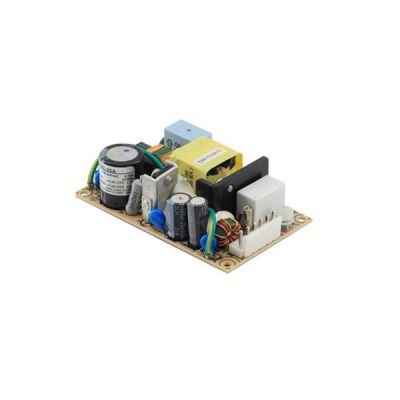

Meanwell PSC-60A is a 60W Single Output with Battery Charger (UPS Function) with CH1CH213.8V13.8V2.8A1.5A0-4.3A59.34W120mVp-pCH1:12-15V. The product allows the universal input range between 90VAC and264V AC with built-in PFC function. Apart from the primary output, there is a charger output, with a smaller rated current, providing the backup application the security access systems normally need. Moreover, PSC-60A delivers high efficiency reaching up to 84%, so that it can work with air convection under -30℃ through 70℃. Additionally, PSC-60A is equipped with various protection functions such as Short circuit, Overload and Over voltage. Since it is designed with thorough alarm features, including AC OK and battery low signaling, the relay contact is provided to facilitate users' system designs. At the same time, PSC-60A is available in the PCB type or the enclosed type with L-Bracket and cover. Due to its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-60A is a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PSC-60A Encoding
| PSC | Series Name |
| 60 | Output wattage |
| A | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Type |
Meanwell PSC-60A Specifications
| Model | PSC-60A | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 13.8V | 13.8V | |
| RATED CURRENT | 2.8A | 1.5A | |
| CURRENT RANGE | 0-4.3A | ----- | |
| RATED POWER | 59.34W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:12-15V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 50ms/230VAC 10ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 84.00% | ||
| AC CURRENT (Typ.) | 1.6A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | <1mA / 240VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | CH1:14.49 ~ 18.63V | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| BATTERY CUT OFF | 10.5±0.5V | ||
| FUNCTION | AC OK | TTL open collector output, ON : AC OK ; OFF : AC Fail ; Ice : max. 30mA@ 50VDC | |
| BATTERY LOW | TTL open collector output, ON : Battery Low ; OFF : Battery OK ; Ice : max. 30mA@ 50VDC | ||
| Battery low voltage : < 11V | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 3681.4K hrs min. Telcordia SR-332 (Bellcore) ; 589.7K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | PCB:101.6*50.8*29mm (L*W*H) ; Enclosed type:103.4*62*37mm (L*W*H) | ||
| PACKING | PCB:0.13Kg; 96pcs/13.5Kg/1.39CUFT ; Enclosed type:0.29Kg; 45pcs/14Kg/0.63CUFT | ||
Meanwell PSC-60A Features
l 2 years warranty
l Cooling by free air convection
l 100% full load burn-in test
l Universal AC input/Full range
l Models with L-Bracket and cover available (PSC-60x-C, x=A,B)
l Protections: Short circuit/Overload/Over voltage
l Battery low protection/Battery reverse polarity protection by fuse
l Alarm signal for AC OK and Battery reverse low
Meanwell PSC-60A Applications
l Alarm system
l UPS system
l Central monitoring system
l Access systems
l Security system
l Emergency lighting system
Meanwell PSC-60A Mechanical Diagram
