PSC-35
23.16
Details

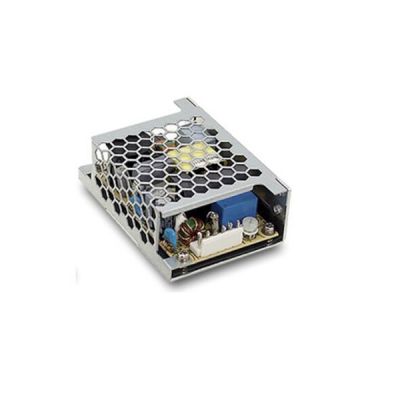

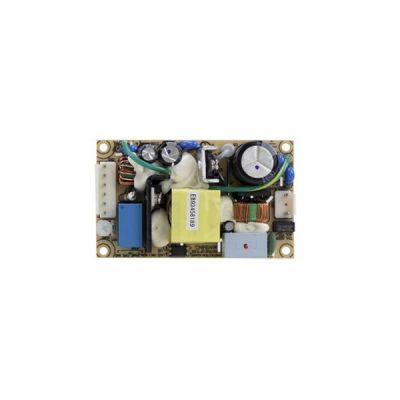

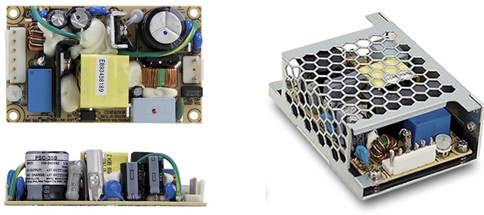

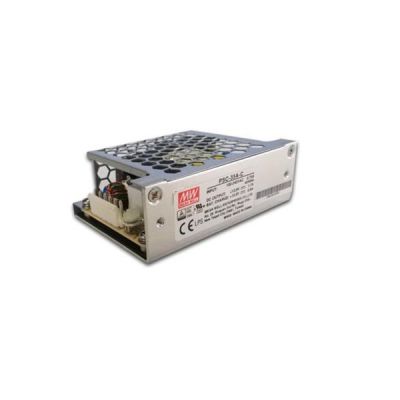

Meanwell PSC-35 series is a 35W AC/DC security power supply. The entire series allows the universal input range between 90VAC and264V AC and incorporates the built-in PFC function. In addition to the primary output, there is a charger output, with a smaller rated current, providing the backup application which the security access systems normally need. In addition, PSC-35 series delivers an efficiency up to 86%, so that it can operate with air convection under -30℃ through 70℃. This series is designed with thorough alarm features, including AC OK and battery low signaling. Moreover, the relay contact is provided to facilitate users' system designs. At the same time, PSC-35 is available in the PCB type (3.3" x2") or the enclosed type with L-Bracket and cover. Considering its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-35 Series is a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PSC-35 Series Encoding
| PSC | Series Name |
| 35 | Output wattage |
| A | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Type |
Meanwell PSC-35 Series Model Specifications
| Model | PSC-35A | PSC-35B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 13.8V | 13.8V | 27.6V | 27.6V | |
| RATED CURRENT | 1.7A | 0.9A | 0.85A | 0.45A | |
| CURRENT RANGE | 0-0.26A | ----- | 0-1.3A | ---- | |
| RATED POWER | 35.88W | 35.88W | |||
| RIPPLE & NOISE (max.) | 120mVp-p | ---- | 240mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:12-15V | CH1:24-29V | |||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | ±0.5% | ---- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 10ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 84.00% | 86.00% | |||
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1:14.49 ~ 19.5V | ||||
| Protection type : Shut down O/P Voltage, repower on to recover | |||||
| BATTERY CUT OFF | 10±0.5V | 20±1V | |||
| FUNCTION | AC OK | TTL open collector output, ON : AC OK ; OFF : AC Fail ; Ice : max. 30mA@ 50VDC | |||
| BATTERY LOW | TTL open collector output, ON : Battery Low ; OFF : Battery OK ; Ice : max. 30mA@ 50VDC | ||||
| Battery low voltage : < 11V | Battery low voltage : < 22V | ||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 4114.3K hrs min. Telcordia SR-332 (Bellcore) ; 658.4K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | PCB:84.6*50.8*24mm (L*W*H) ; Enclosed type:86.4*59.6*30mm (L*W*H) | ||||
| PACKING | PCB:0.092Kg;90pcs/9.28Kg/0.97CUFT ; Enclosed type: 0.145Kg;100pcs/15.5Kg/1.03CUFT | ||||
Meanwell PSC-35 Series Features
l Universal AC input/ Full range
l 3.3"x2" compact PCB size
l Models with L- Bracket and cover available (PSC-35x-C, x=A,B)
l Protections: Short circuit/Overload/Over voltage Battery low protection/Battery reverse polarity protection by fuse
l Alarm signal for AC OK and Battery low
l Cooling by free air convection
l 100% full load burn-in test
l 2 years warranty
Meanwell PSC-35 Series Applications
l Security system
l Emergency lighting system
l Alarm system
l UPS system
l Central monitoring system
l Access systems

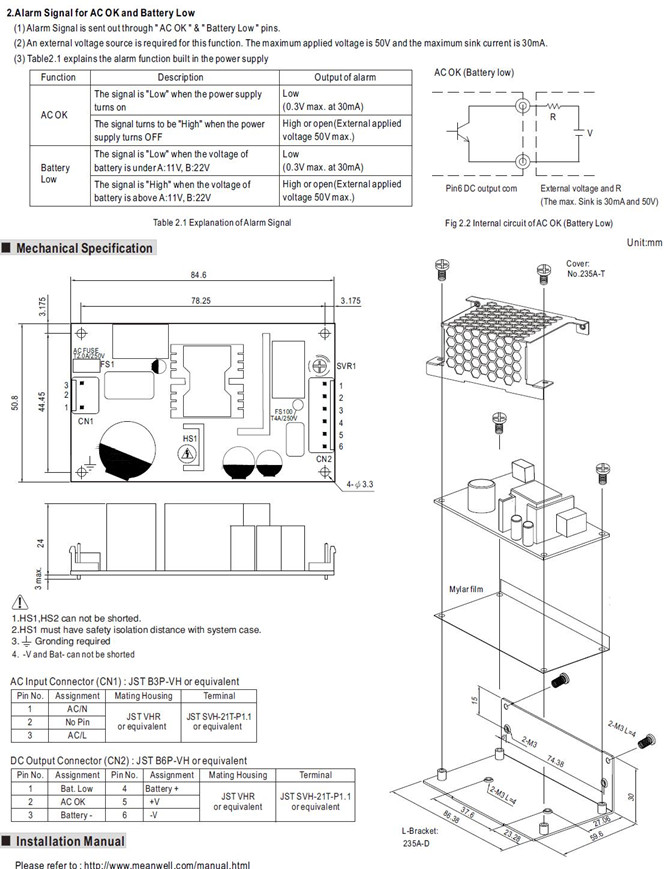

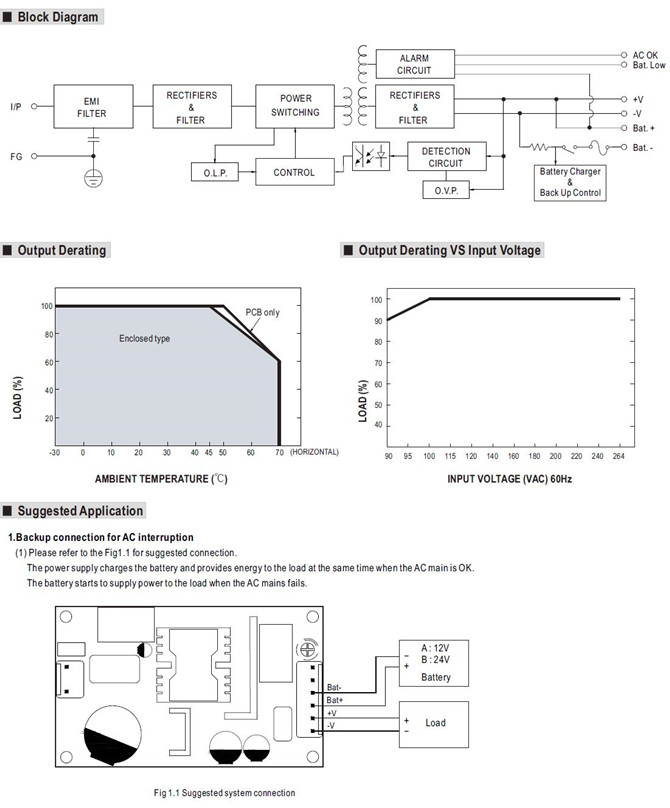

Meanwell PSC-35 Series Mechanical Diagram
