PSC-100A
35.16
Details

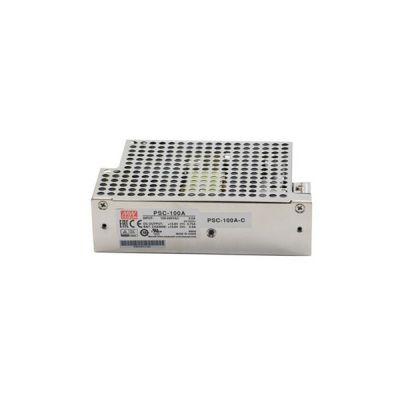

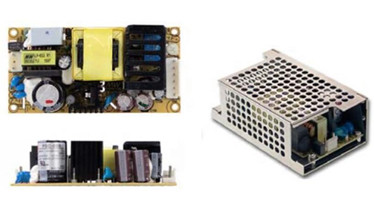

Meanwell PSC-100A is a 100W Single Output with Battery Charger (UPS Function) with CH1CH213.8V13.8V4.75A2.5A0-7A100.05W100mVp-pCH1:12-15V. The product allows the universal input range between 90VAC and264V AC with built-in PFC function. Apart from the primary output, there is a charger output, with a smaller rated current, supplying the backup application the security access systems normally need. Moreover, PSC-100A delivers high efficiency reaching up to 86%, so it can work with air convection under -20℃ through 70℃. Furthermore, PSC-100A is equipped with various protection functions such as Short circuit, Overload and Over voltage. Since it is designed with thorough alarm features, including AC OK and battery low signaling, the relay contact is provided to facilitate users' system designs. PSC-100A is available in the PCB type or the enclosed type with L-Bracket and cover. Due to its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-100A is a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PSC-100A Encoding
| PSC | Series Name |
| 100 | Output wattage |
| A | Output Voltage |
| C | Type |
| Blank | PCB Type |
| -C | Enclosed Type |
Meanwell PSC-100A Specifications
| Model | PSC-100A | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 13.8V | 13.8V | |
| RATED CURRENT | 4.75A | 2.5A | |
| CURRENT RANGE | 0-7A | ----- | |
| RATED POWER | 100.05W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:12-15V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | |
| SETUP, RISE TIME | 2400ms, 30ms/230VAC 2400ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 40ms/230VAC 14ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 86.00% | ||
| AC CURRENT (Typ.) | 2A/115VAC 1.2A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||
| LEAKAGE CURRENT | <1mA / 240VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | CH1:14.49 ~ 18.63V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| BATTERY CUT OFF | 10±0.5V | ||
| FUNCTION | AC OK | Relay contact output, ON : AC OK ; OFF : AC Fail ; Max. rating : 30V / 1A | |
| BATTERY LOW | Relay contact output, OFF : Battery OK ; ON : Battery Low ; Max. rating : 30V / 1A | ||
| Battery low voltage : < 11V | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 2094.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.7K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | PCB:127*76.2*31mm (L*W*H) ; Enclosed type:130*85*37mm (L*W*H) | ||
| PACKING | PCB:0.23Kg; 63pcs/15.5Kg/1.28CUFT ; Enclosed type:0.44Kg;32pcs/15Kg/0.73CUFT | ||
Meanwell PSC-100A Features
l 2 years warranty
l 5"x3" compact size
l Cooling by free air convection
l 100% full load burn-in test
l Universal AC input/ Full range
l Protections: Short circuit/Overload/Over voltage
l Battery low protection/Battery reverse polarity protection by fuse
l Relay contact signal output for AC OK and Battery Low
l Models with L-Bracket and cover available (PSC-100x-C, X=A,B)
Meanwell PSC-100A Applications
l Security system
l Emergency lighting system
l Alarm system
l UPS system
l Central monitoring system
l Access systems
Meanwell PSC-100A Mechanical Diagram
