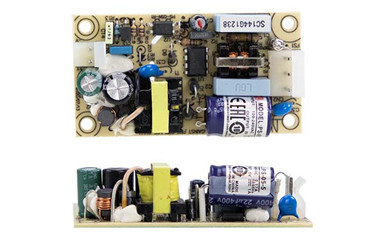

Meanwell PS-05 Series is 5W Single Output Switching Power Supply designed with compact size and low profile. It accepts 85~264VAC input and various output voltages between 5V and 48V. The working efficiency can reach up to 76% and the extremely Low leakage current down below 0.5mA. In addition, the whole series works from -10 ℃through 60 ℃ under air convection without fan, and delivers an extremely low no load power consumption this allows the end system to easily meet the worldwide energy requirement. Apart from them, PS-05 provides the various protection functions such as Short circuit, Overload, Over voltage, Over temperature, and complies with the international safety regulations such as TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV. Considering its High efficiency, low cost and longevity, Meanwell PS-05 serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell PS-05 Series Model Specifications
| Model | PS-05-5 | PS-05-12 | PS-05-15 | PS-05-24 | PS-05-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 1A | 0.45A | 0.35A | 0.22A | 0.11A | |
| CURRENT RANGE | 0-1.2A | 0-0.5A | 0-0.4A | 0-0.25A | 0-0.125A | |
| RATED POWER | 5W | 5.4W | 5.25W | 5.28W | 5.28W | |
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 3.1-3.6V | 4.75-5.5V | 10.8-13.5V | 13.5-16.5V | 21.6-27V | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | |
| LINE REGULATION | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 20ms | |||||
| HOLD UP TIME (Typ.) | 100ms at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 70.00% | 75.00% | 75.00% | 76.00% | 76.00% | |
| AC CURRENT (Typ.) | 0.15A/115VAC 0.07A/230VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 30A/230VAC | |||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | |||||
| PROTECTION | OVERL OAD | Above 105% rated output power | ||||
| Protection type : Hiccup mode, recovery automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.2V | 17.2-20.2V | 27.6-32.4V | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | ||||||
| OVER VOLTAGE | Hiccup mode, recovery automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMI CONDUCTION & RADIATION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||
| HARMONIC CURRENT | Compliance to BS EN/EN61000-3-2,-3 | |||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |||||
| OTHERS | DIMENSION | 75*40*20mm (L*W*H) | ||||
| PACKING | 0.05Kg; 120pcs/6.25Kg/0.56CUFT | |||||
Meanwell PS-05 Series Features
l Universal AC input/Full range
l Low leakage current <0.5mA
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l 100% full load burn-in test
l Fix switching frequency at 67KHz
l Low cost
l High reliability
l 2 years warranty

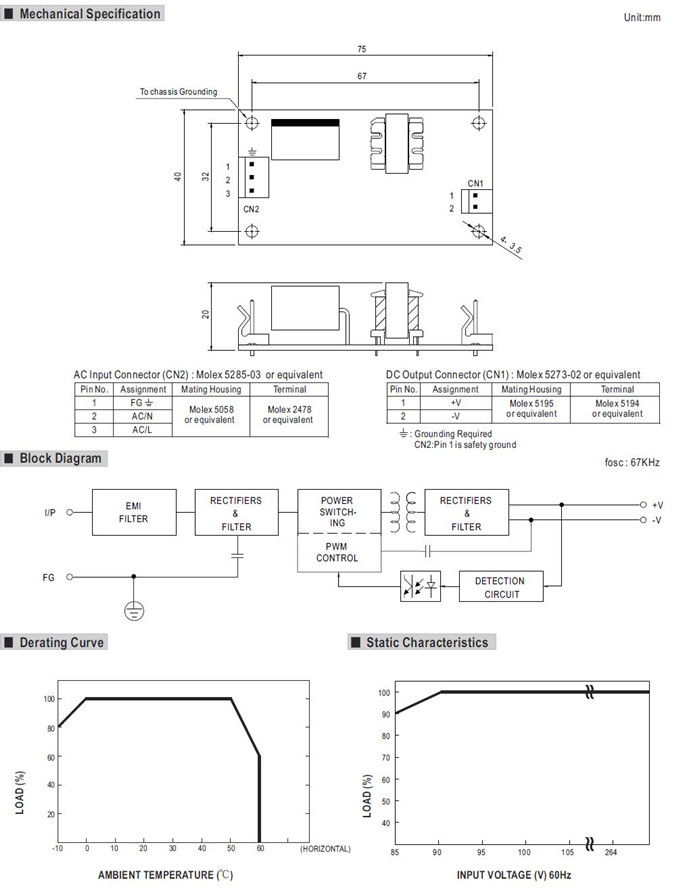

Meanwell PS-05 Series Mechanical Diagram
