PS-05-5
4.03
Details

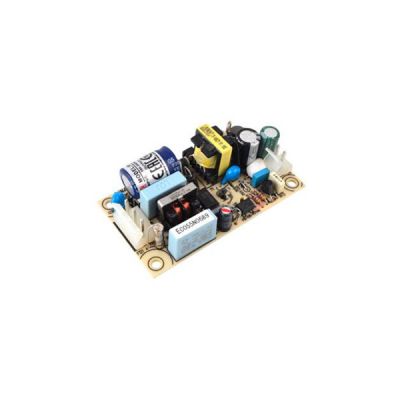

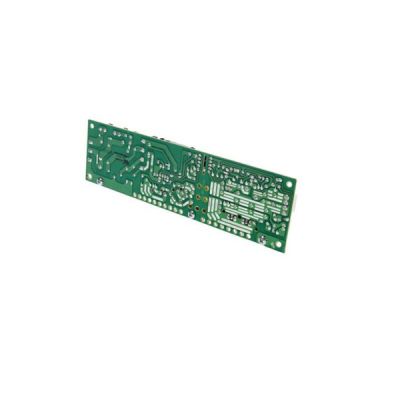

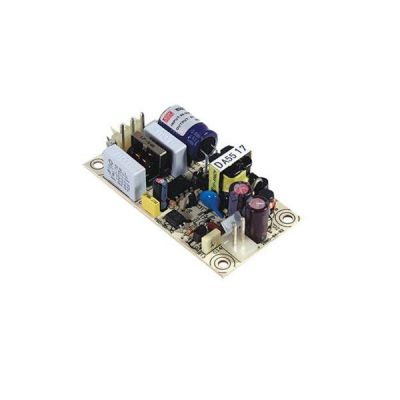

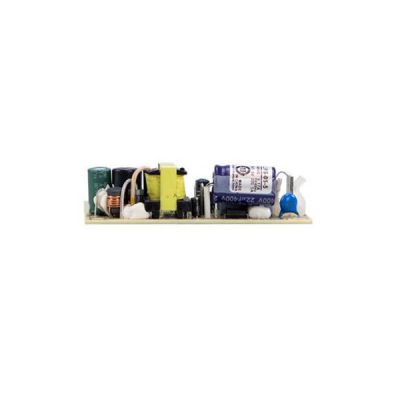

Meanwell PS-05-5 is 5W Single Output Switching Power Supply with 5V1A0-1.2A5W100mVp-p3.1-3.6V. This item is designed with compact size and low profile. At the same time, It accepts 85~264VAC input. With the working efficiency reaching up to 76% and the extremely Low leakage current down below 0.5mA. PS-05-5 can operate from -10 ℃through 60 ℃ under air convection without fan, delivering an extremely low no load power consumption Moreover, the product permits the end system to easily meet the worldwide energy requirements. PS-05-5 provides the various protection functions such as Short circuit, Overload, Over voltage, Over temperature, and complies with the international safety regulations such as TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV. Due to its High efficiency, low cost and longevity, Meanwell PS-05-5 is a high price-to-performance power supply solution for various industrial applications.
Meanwell PS-05-5 Specifications
| Model | PS-05-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1.2A | |
| RATED POWER | 5W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 3.1-3.6V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±1% | |
| LOAD REGUL .ATION | ±1% | |
| SETUP, RISE TIME | 1000ms, 20ms | |
| HOLD UP TIME (Typ.) | 100ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 70.00% | |
| AC CURRENT (Typ.) | 0.15A/115VAC 0.07A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A/230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVERL OAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovery automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | ||
| OVER VOLTAGE | Hiccup mode, recovery automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMI CONDUCTION & RADIATION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |
| HARMONIC CURRENT | Compliance to BS EN/EN61000-3-2,-3 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | DIMENSION | 75*40*20mm (L*W*H) |
| PACKING | 0.05Kg; 120pcs/6.25Kg/0.56CUFT | |
Meanwell PS-05-5 Features
l Low cost
l High reliability
l 2 years warranty
l Universal AC input/Full range
l Low leakage current <0.5mA
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l 100% full load burn-in test
l Fix switching frequency at 67KHz
Meanwell PS-05-5 Mechanical Diagram
