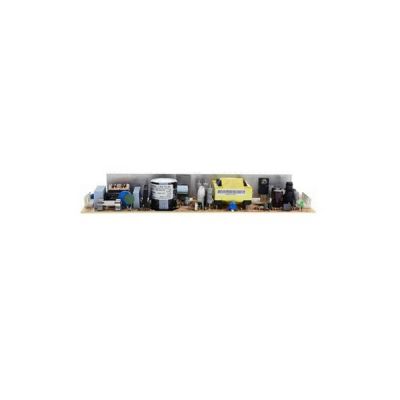

PS-05-48
5.38
Details
Meanwell PS-05-48 is 5W Single Output Switching Power Supply with 48V0.11A0-0.125A5.28W200mVp-p21.6-27V. The item is designed with compact size and low profile. At the same time, it accepts 85~264VAC input. The working efficiency can reach up to 76% and the leakage current is extremely Low down below 0.5mA. Additionally, PS-05-48 works from -10 ℃through 60 ℃ under air convection without fan, and it delivers extremely low no load power consumption. These highlights allow the end system to easily meet the worldwide energy requirement. Apart from them, PS-05-48 provides the various protection functions such as Short circuit, Overload, Over voltage, Over temperature. Besides them, the model complies with the international safety regulations such as TUV BS EN/EN62368-1,EAC TP TC 004, IEC62368-1 CB by TUV. Because of its High efficiency, low cost and longevity, Meanwell PS-05-48 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell PS-05-48 Specifications
| Model | PS-05-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 0.11A | |
| CURRENT RANGE | 0-0.125A | |
| RATED POWER | 5.28W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 21.6-27V | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 20ms | |
| HOLD UP TIME (Typ.) | 100ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 76.00% | |
| AC CURRENT (Typ.) | 0.15A/115VAC 0.07A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A/230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVERL OAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovery automatically after fault condition is removed | ||
| OVER VOLTAGE | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | ||
| OVER VOLTAGE | Hiccup mode, recovery automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMI CONDUCTION & RADIATION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |
| HARMONIC CURRENT | Compliance to BS EN/EN61000-3-2,-3 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | DIMENSION | 75*40*20mm (L*W*H) |
| PACKING | 0.05Kg; 120pcs/6.25Kg/0.56CUFT | |
Meanwell PS-05-48 Features
l Low cost
l High reliability
l 2 years warranty
l 100% full load burn-in test
l Low leakage current <0.5Ma
l Universal AC input/Full range
l Cooling by free air convection
l Fix switching frequency at 67KHz
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell PS-05-48 Mechanical Diagram
