PS-05-12
4.37
Details

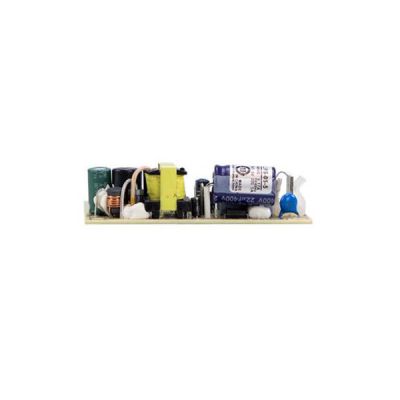

Meanwell PS-05-12 is 5W Single Output Switching Power Supply with 12V0.45A0-0.5A5.4W120mVp-p4.75-5.5V. The product is designed with compact size and low profile. Meanwhile, It accepts 85~264VAC input. With the working efficiency up to 76% and the extremely Low leakage current down below 0.5mA. PS-05-12 can work from -10 ℃through 60 ℃ under air convection without fan, and deliver an extremely low no load power consumption Furthermore, the unit permits the end system to easily meet the worldwide energy requirements. It provides the various protection functions such as Short circuit, Overload, Over voltage, Over temperature, and complies with the international safety regulations such as TUV BS EN/EN62368-1,EAC TP TC 004, IEC62368-1 CB by TUV. In light of its High efficiency, low cost and longevity, Meanwell PS-05-12 is a high price-to-performance power supply solution for various industrial applications.
Meanwell PS-05-12 Specifications
| Model | PS-05-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 0.45A | |
| CURRENT RANGE | 0-0.5A | |
| RATED POWER | 5.4W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75-5.5V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±1% | |
| LOAD REGUL .ATION | ±1% | |
| SETUP, RISE TIME | 1000ms, 20ms | |
| HOLD UP TIME (Typ.) | 100ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 75.00% | |
| AC CURRENT (Typ.) | 0.15A/115VAC 0.07A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A/230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVERL OAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovery automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8-16.2V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | ||
| OVER VOLTAGE | Hiccup mode, recovery automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMI CONDUCTION & RADIATION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |
| HARMONIC CURRENT | Compliance to BS EN/EN61000-3-2,-3 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | DIMENSION | 75*40*20mm (L*W*H) |
| PACKING | 0.05Kg; 120pcs/6.25Kg/0.56CUFT | |
Meanwell PS-05-12 Features
l Low cost
l High reliability
l 2 years warranty
l Cooling by free air convection
l 100% full load burn-in test
l Fix switching frequency at 67KHz
l Universal AC input/Full range
l Low leakage current <0.5mA
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell PS-05-12 Mechanical Diagram
