PPT-125C
41.83
Details

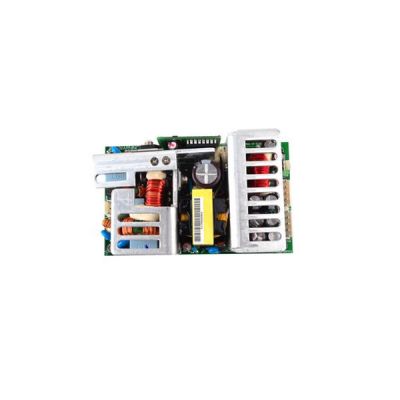

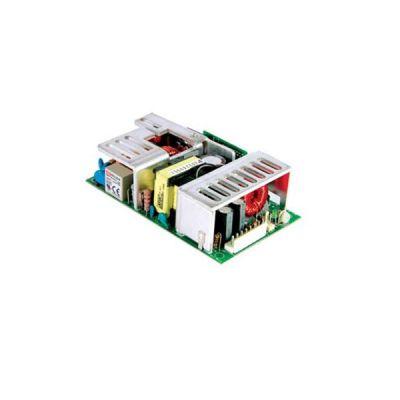

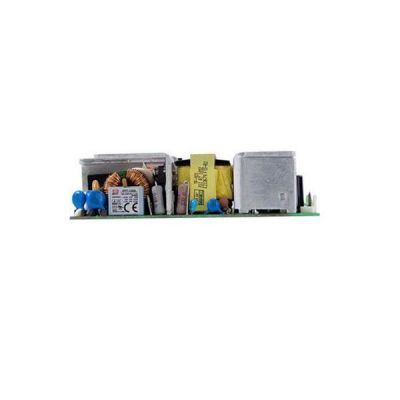

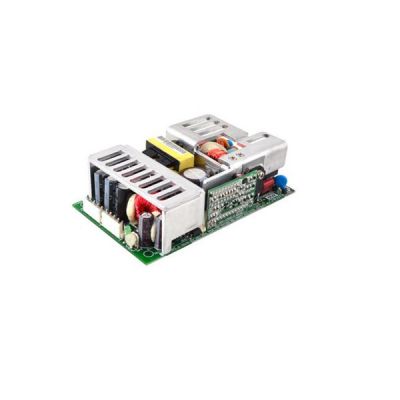

Meanwell PPT-125C is 125W Triple Output Switching Power Supply with CH1CH2CH35V15V-15V11A2.5A0.5A1-11A0.25-2.5A0.05-0.5A0.4-7A0.2-2.6A0-0.7A100W125.15W100mVp-p150mVp-p150mVp-pCH1:4.75~5.25V. It is designed in low profile and compact size, and featured with PFC Function, Universal AC input/Full range and high power density 6.117W/inch. At the same time, the unit accepts universal input voltage range of 90~264V AC. The high working efficiency could reach up to 78% and operate from -20 ℃through 70 ℃ under air convection with no fan. Moreover, PPT-125C offers the various protections such as Short circuit, Overload, Over voltage, and 100% full load burn-in test, this permits to easily meet the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004. In light of its longevity, high efficiency and good quality, Meanwell PPT-125C is a high price-to-performance power supply solution for various industrial applications in harsh working conditions.
Meanwell PPT-125C Specifications
| Model | PPT-125C | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 15V | -15V | |
| RATED CURRENT | 11A | 2.5A | 0.5A | |
| CURRENT RANGE (convection) | 1-11a | 0.25-2.5a | 0.05-0.5a | |
| CURRENT RANGE (18CFM FAN | 0.4-7A | 0.2-2.6A | 0-0.7A | |
| RATED POWER (convection) | 100W | |||
| RATED POWER (18CFM FAN) | 125.15W | |||
| RIPPLE & NOISE (max.) | 100mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.25V | |||
| VOLTAGE TOL ERANCE | ±3.0% | ±5.0% | ±6.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±3.0% | ±3.0% | ±5.0% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 24ms/230VAC 24ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47~63Hz | |||
| EFFICIENCY (Typ.) | 78.00% | |||
| AC CURRENT (Typ.) | 1.7A/115VAC 0.75A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 24A/230VAC | |||
| LEAKAGE CURRENT | <2mA / 240VAC | |||
| PROTECTION | OVERL OAD | 130 ~ 160% rated output power | ||
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | CH1:5.75 ~ 6.75V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) on +5V output | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 94.7Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 127*76.2*34.6mm (L*W*H) | |||
| PACKING | 0.37Kg; 36pcs/14.3Kg/0.96CUFT | |||
Meanwell PPT-125C Features
l 3 years warranty
l 5"x3" compact size
l 125W with 18CFM FAN
l Built-in active PFC function
l PWM control and regulated
l High power density 6.117W/inch
l Universal AC input/ Full range
l LED indicator for power on
l 100% full load burn-in test
l Protections: Short circuit/Overload/Over voltage
Meanwell PPT-125C Mechanical Diagram
