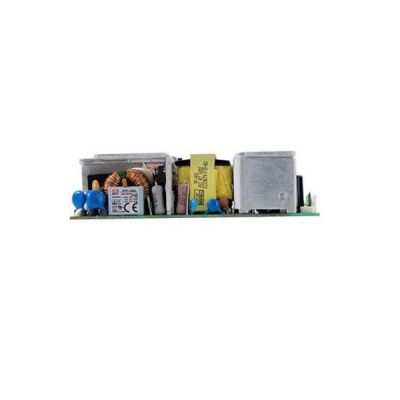

PPT-125A
40.15
Details
Meanwell PPT-125A is 125W Triple Output Switching Power Supply with CH1CH2CH33.3V5V12V10A8A0.5A1-10A0.8-8A0.05-0.5A0.4-7A0.2-3.2A0-0.7A100mVp-p100mVp-p120mVp-pCH1:3.13~3.46V. The product is designed in low profile and compact size. At the same time, it outstands with PFC Function, Universal AC input/Full range and high power density 6.117W/inch. Additionally, the unit accepts universal input voltage range of 90~264V AC. The working efficiency could reach up to 78% and operate from -20 ℃through 70 ℃ under free air convection. Besides them, PPT-125A offers the various protections such as Short circuit, Overload and Over voltage, it passes 100% full load burn-in test and the extremely low leakage current, this allows to easily meet the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004. Due to its longevity, high efficiency and good quality, Meanwell PPT-125A is a high price-to-performance power supply solution for various industrial applications in harsh working conditions.
Meanwell PPT-125A Specifications
| Model | PPT-125A | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 3.3V | 5V | 12V | |
| RATED CURRENT | 10A | 8A | 0.5A | |
| CURRENT RANGE (convection) | 1-10a | 0.8-8a | 0.05-0.5a | |
| CURRENT RANGE (18CFM FAN | 0.4-7A | 0.2-3.2A | 0-0.7A | |
| RATED POWER (convection) | 79W | |||
| RATED POWER (18CFM FAN) | 98.81 | |||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:3.13 ~ 3.46V | |||
| VOLTAGE TOL ERANCE | ±3.0% | ±5.0% | ±6.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±3.0% | ±3.0% | ±5.0% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 24ms/230VAC 24ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47~63Hz | |||
| EFFICIENCY (Typ.) | 75.00% | |||
| AC CURRENT (Typ.) | 1.7A/115VAC 0.75A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 24A/230VAC | |||
| LEAKAGE CURRENT | <2mA / 240VAC | |||
| PROTECTION | OVERL OAD | 130 ~ 160% rated output power | ||
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | CH1:3.6 ~ 4.45V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) on +5V output | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 94.7Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 127*76.2*34.6mm (L*W*H) | |||
| PACKING | 0.37Kg; 36pcs/14.3Kg/0.96CUFT | |||
Meanwell PPT-125A Features
l 5"x3" compact size
l 3 years warranty
l LED indicator for power on
l 100% full load burn-in test
l 125W with 18CFM FAN
l Universal AC input/ Full range
l Built-in active PFC function
l Protections: Short circuit/Overload/Over voltage
l PWM control and regulated
l High power density 6.117W/inch
Meanwell PPT-125A Mechanical Diagram
